Threshold The expander/gate threshold is displayed in dB and can be adjusted in a 96 dB
range with the rotary encoder below the field.
(Gate only): Please note that the gate has a fixed 6 dB hysteresis. This means
that the gate is closed as soon as the level is equal to or below the adjusted
threshold value; it opens again as soon as the level exceeds the threshold
value by more than 6 dB.
Attack Time The expander/gate attack time is displayed in ms (milli-seconds) and can be
adjusted in a range of 0.2…1 ms with the rotary encoder below the field.
Release Time The expander/gate release time is displayed and can be adjusted in a range of
10 ms...10 s with the rotary encoder below the field.
ON The upper four ON buttons individually enable/disable the sections of the
dynamics processor; they are highlighted if active.
The lowest ON button enables/disables the whole dynamics processor. If
some or all sections have been enabled individually but are disabled now by
the lowest button, their individual ON buttons remain highlighted, but the
dynamics curve is displayed in gray.
5.3.3.5 (Channel) AUX Page

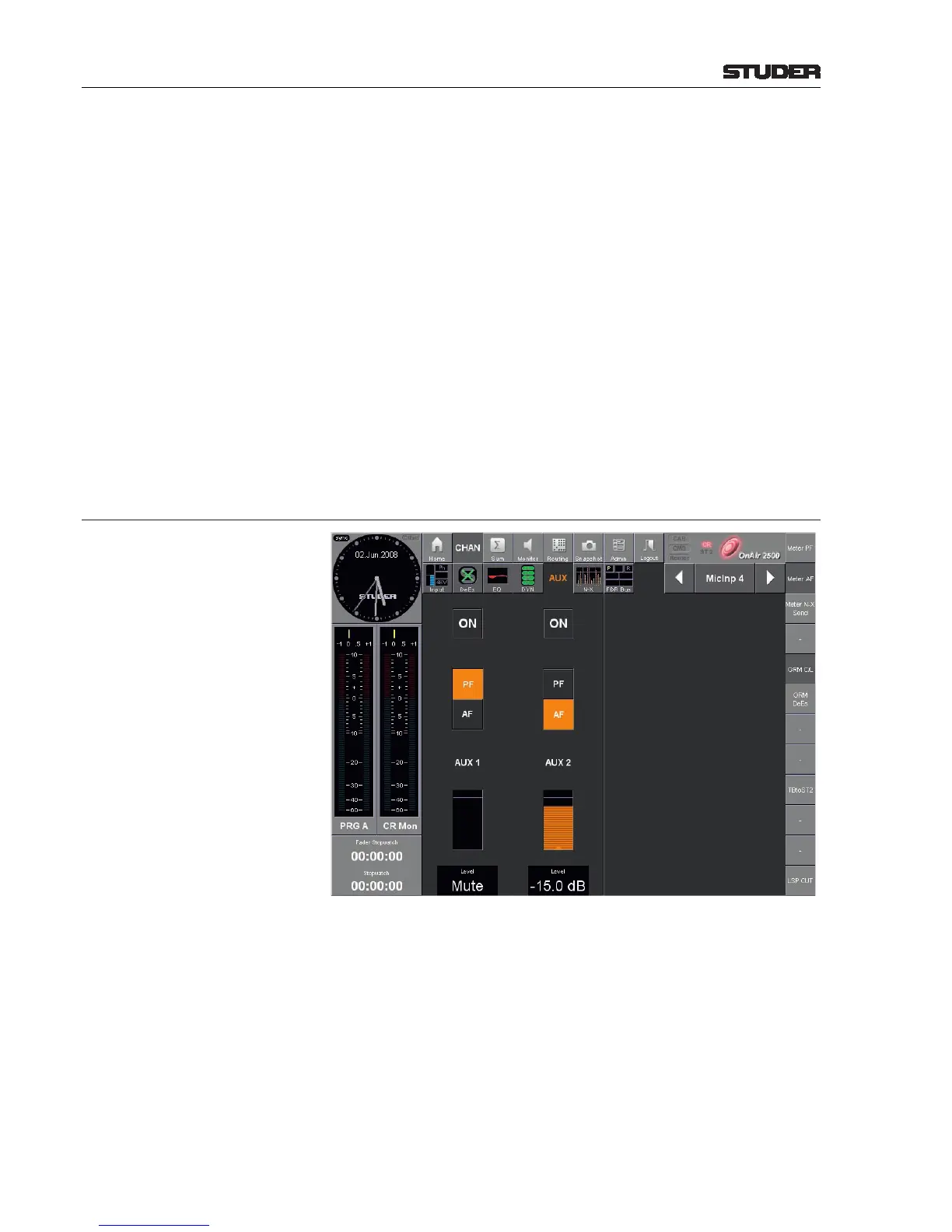

This page contains the controls for the AUX 1 and AUX 2 auxiliary sends .
ON On/off control for the individual AUX sends; highlighted if on.
PF / AF These buttons allow selection whether the signal for the AUX send is tapped
before (PF, “pre-fader”) or after (AF) the fader. The currently active selection
is highlighted.
If PF is selected for an AUX, a bullet is visible at the left of the corresponding
bar graph on the channel screen. If AF is selected, the bullet is visible at the
right of this bar graph.
Level The AUX send level is indicated by the orange-colored bar graph. Its exact
value is displayed in dB and can be set with the rotary encoder below the field.
Maximum setting is +12 dB.
