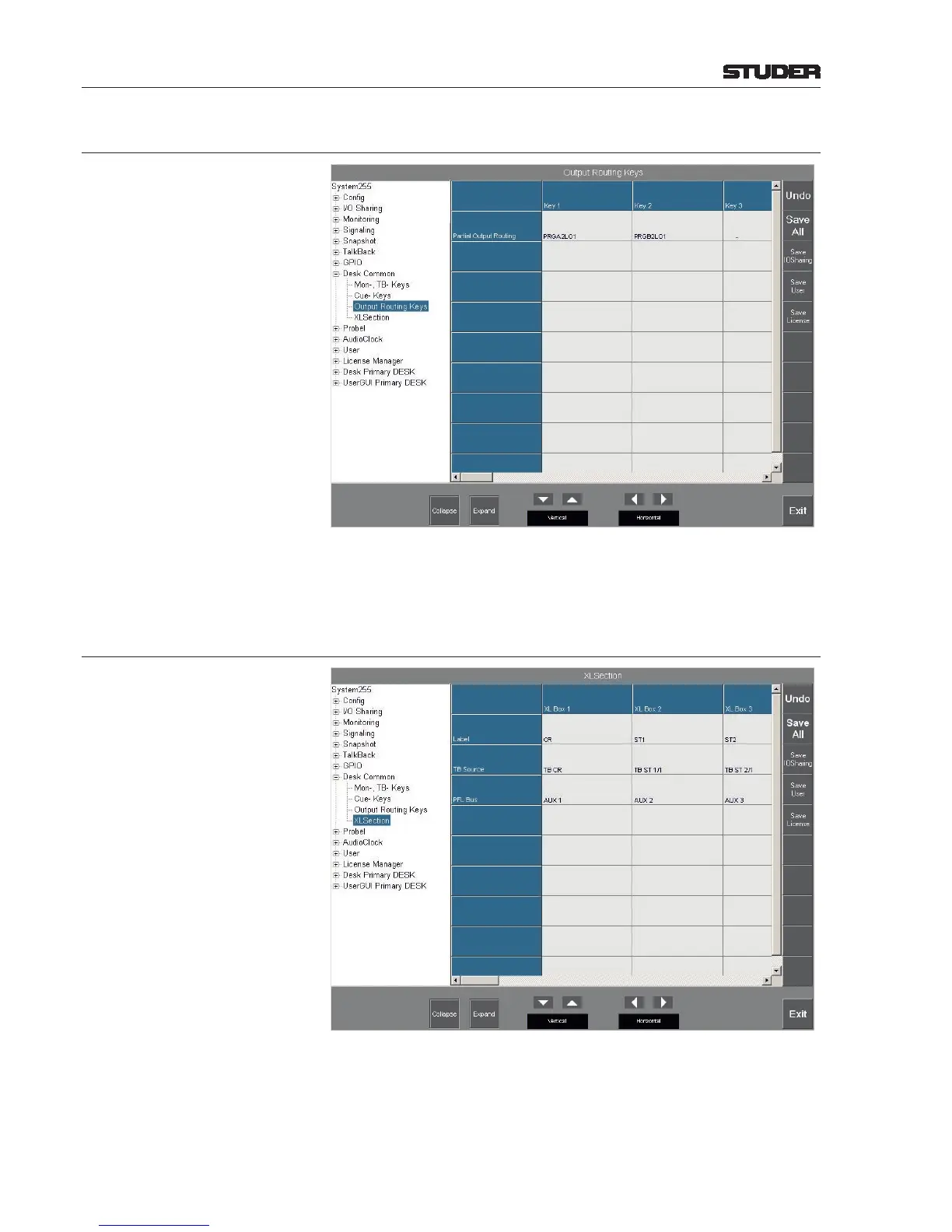

6.5.27.3 Output Routing Keys
This page allows assigning 24 partial output routings to output routing keys
1...24. Which hardware keys this will be on the desk must be dened in the
Desk_KeyMapping.xml le.
6.5.27.4 XL Section
The AUX bus required to listen to outside sources as well as the talkback
source location are dened on this page. Per default, AUX 1 is assigned to
the XL box in the control room, AUX2 to the XL box in studio 1, AUX3 to
the one in studio 2, and AUX4 to the one in studio 3.
OnAir 2500 AUX3...4 and studio 1/3 not supported; only two XL boxes supported.
