OnAir 2500 Digital Mixing Console
Operation 5-35
Date printed: 18.07.08
SW V3.0
5.3.8 Admin (System Administrator) Pages
If the user has access rights to the console configuration, the Admin button
is displayed. After touching it, the Display, Fader Cal, Firmware, Date/
Time, Config, Scrn Cal, and Setup buttons select the respective pages for
basic settings and firmware version display. Config is described in an extra
chapter (refer to chapter 6).

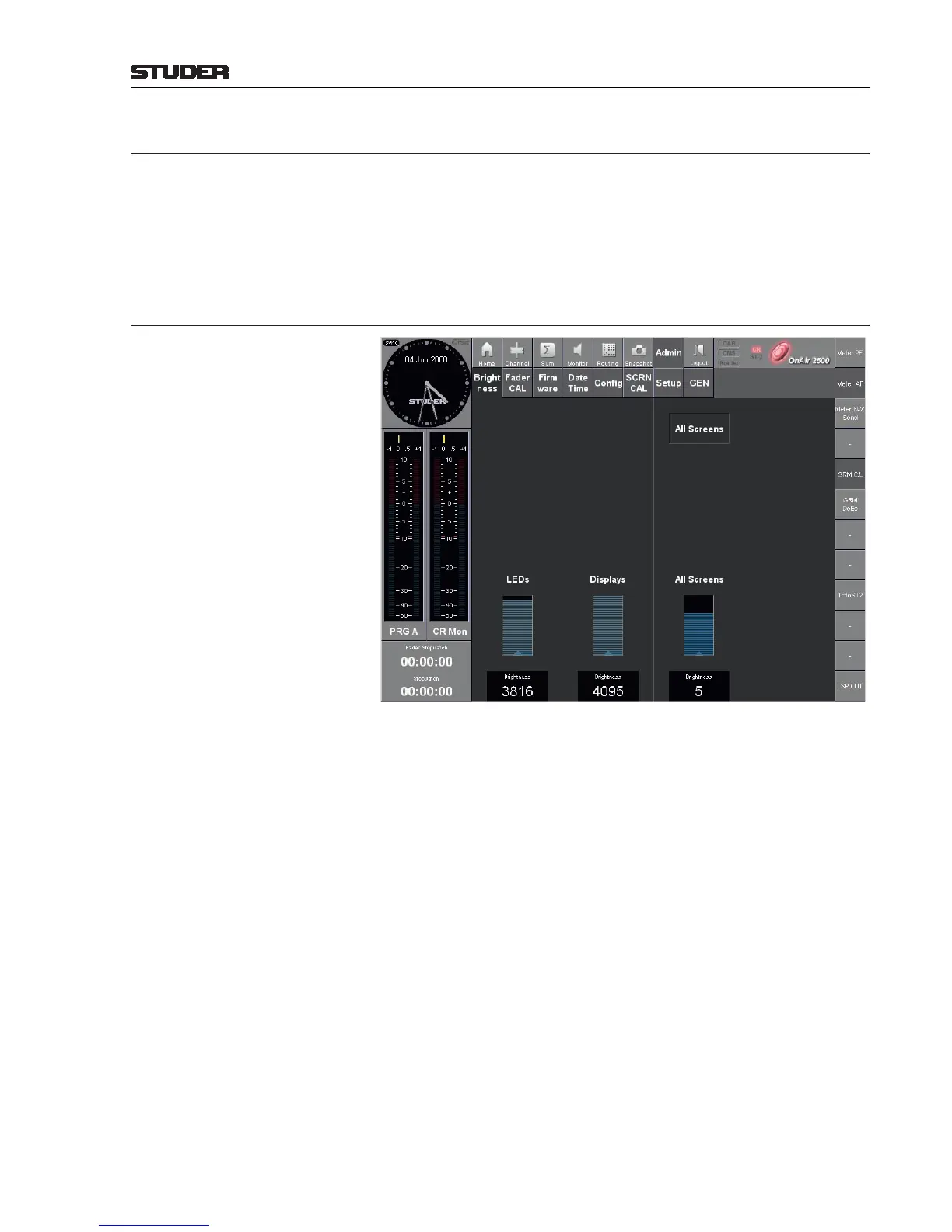

5.3.8.1 (Admin) Brightness Page
On this page, the brightness of the LEDs illuminating the keys, the displays in
the fader and rotary modules, and the TFT screen may be set independently.
The steel blue bar graphs indicate the current settings. These are also displayed
in numerical values in the Brightness fields below the bar graphs and may be
adjusted with the corresponding rotary encoders (LEDs in a 0...4095 range, the
TFT screen in eight steps from 0 to 7, and the OLED displays in five discrete
steps from completely dark to bright – however, with a 0...4095 indication).
All Screens This button is inactive since there is only the central TFT screen available.
