OnAir 2500/OnAir 3000 Digital Mixing Consoles
Conguration 6-41
Date printed: 22.07.08
SW V3.0

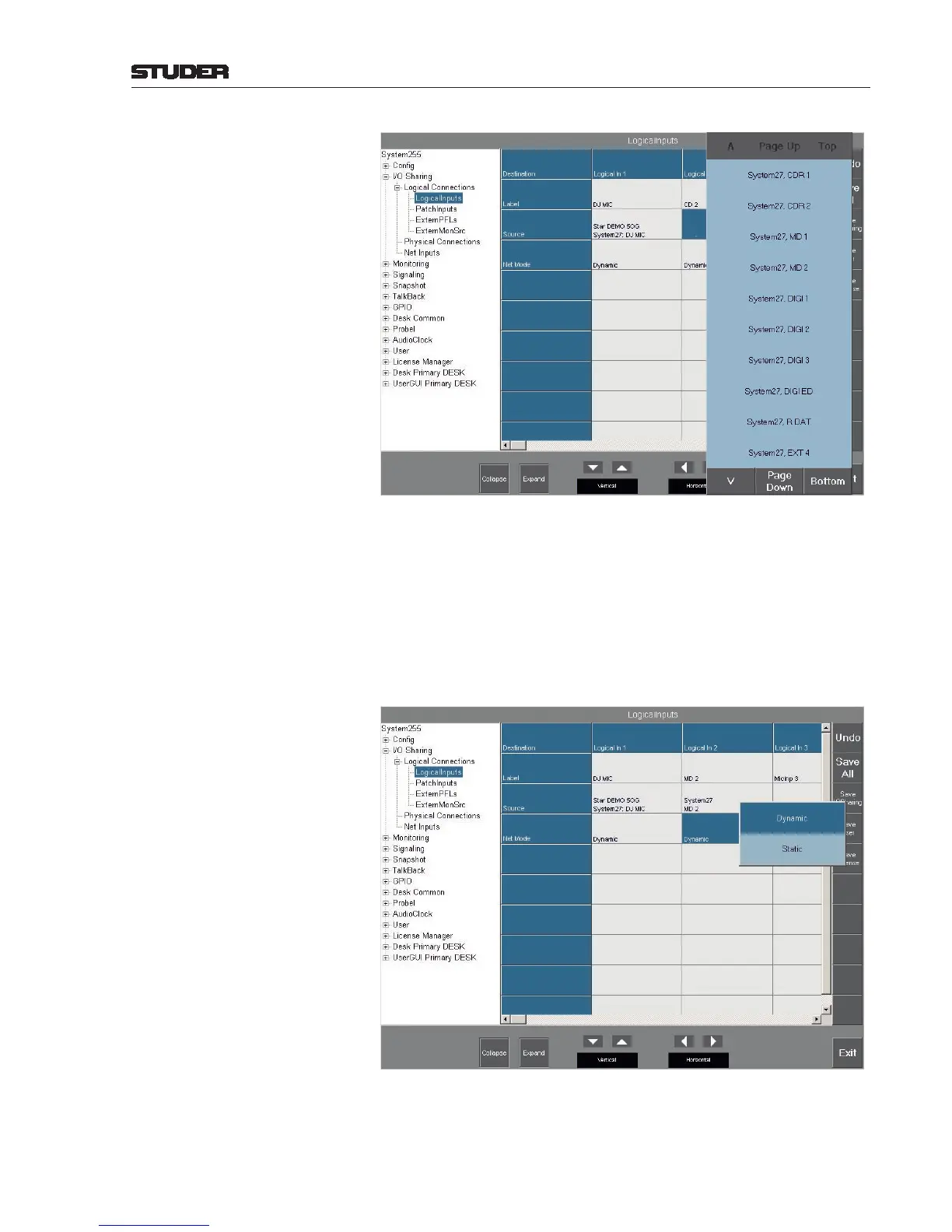

As MD 2 is the desired input in our example, touch the System27, MD 2
entry. After that, the CD 2 input label changes to MD 2, as shown below.
The MD 2 audio signal is immediately available on the target system now
(provided that sufcient physical connections are available; if not, the label
would indicate *MD 2). It is routed, however, only if the connection is static or
the Net Consumer is currently active (i.e. assigned to a channel strip, selected
as a monitoring source, etc.).
In case you should want to change the Net Mode from dynamic to static, then
touch the corresponding Dynamic eld and select Static from the pop-up
menu.
In order to save this input denition, touch the Save IO Sharing button.
Note: As can be seen on the previous page, not only logical inputs of the source
system may be selected, but also external monitoring sources, external PFLs,
master outputs, send channels, subgroups, monitor sends, and Net inputs.
