OnAir 2500

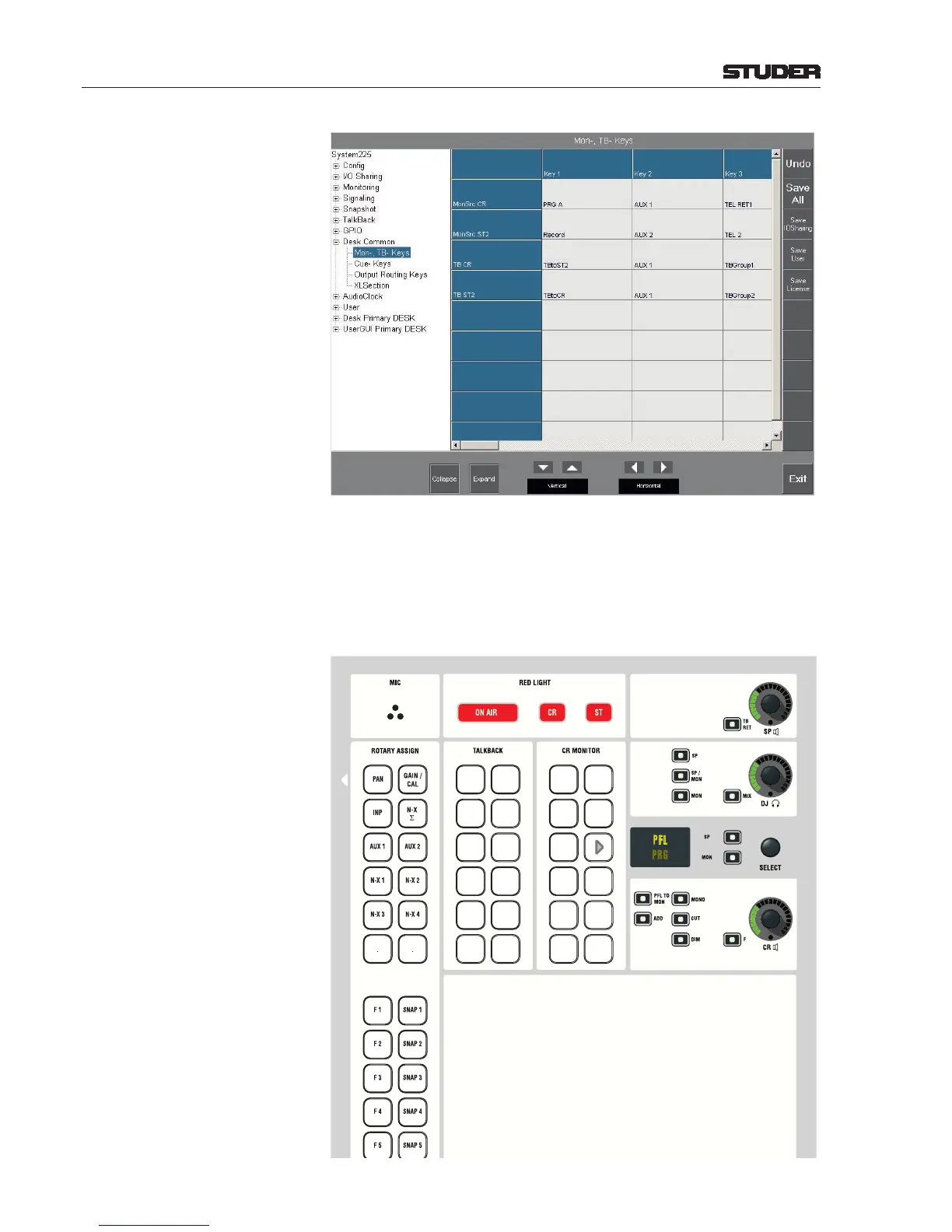

This page allows assigning monitoring sources to the CR MONITOR (right)
and talkback destinations to the TALKBACK (left) key elds of the console’s
central module. The
Rotary parameter stands here for the } key (no. 6) in the
CR MONITOR eld. These keys are duplicated by the 20 buttons on the MON
- CR and MON - ST2 GUI pages, as well as by the 12 buttons on the MON
- TB SP GUI page. The key/button numbering is given in the illustrations
below.
Key Nos. CR MONITOR/TALKBACK::
2
4
1
3
5 6
7 8
9 1
0
11 12
2
4
1
3
5 6
7 8
9 1
0
11 12
