8825/8830 Printer
REP 9.2
Repairs and Adjustments
7. (Figure 3): Move the bearing out of the Xerographic Module Frame (Left Side).

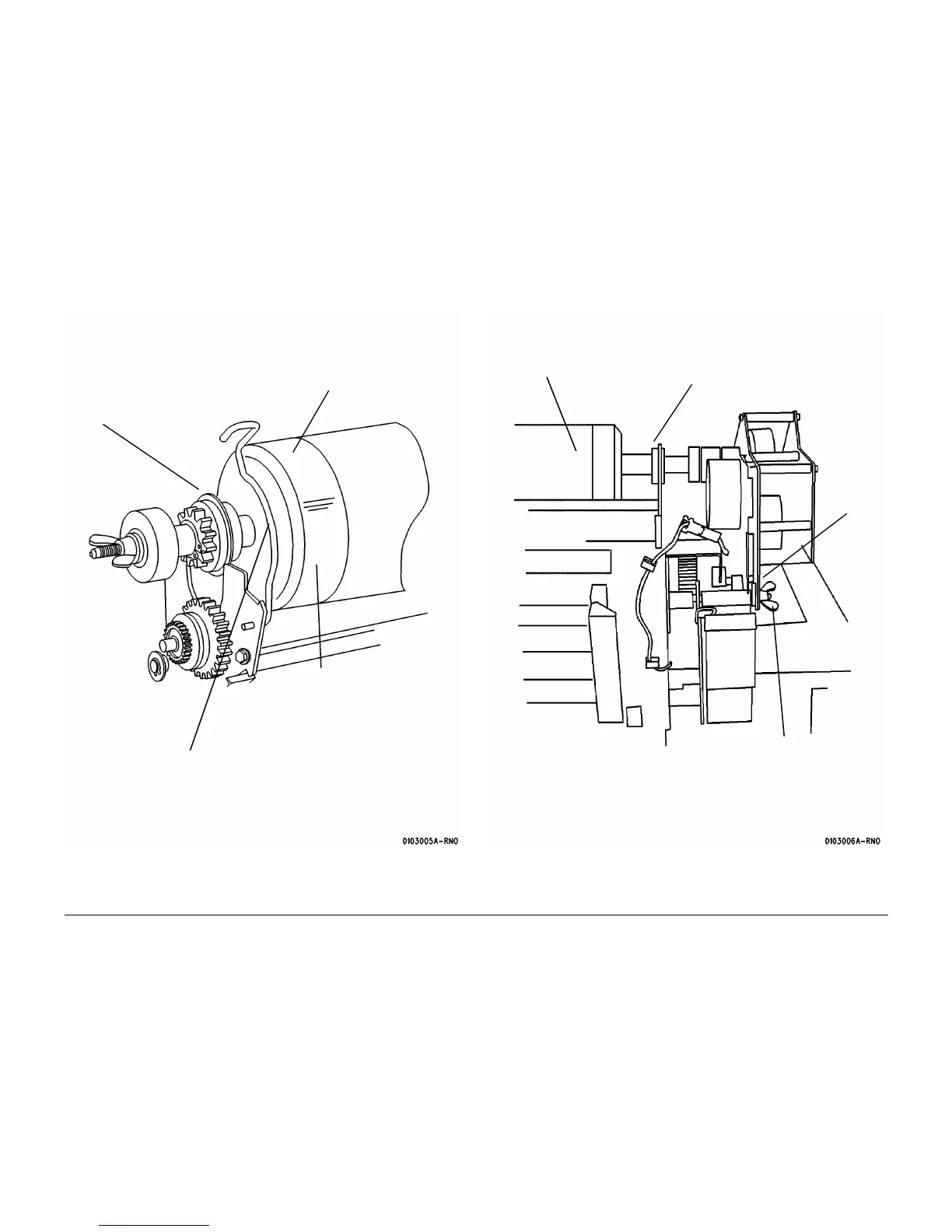

Figure 3 Moving the Bearing (Left Side)
8. (Figure 4): Move the bearing out of the Xerographic Module Frame (Right Side).
Figure 4 Moving the Bearing (Right Side)
2
Lift the Drum Assembly and
move the bearing to the right
3
Carefully lower the
Drum Assembly
1
Disconnect the retain-
ing clip that holds the
bearing and rotate the
clip out of the way
Drum Assembly
1
Loosen the wingnut and
rotate the gearbox to
disengage the bracket
from the grommet
2
Discon-
nect P/J 2
3
Holding the gearbox out of the grommet, move the
Drum Assembly to the right while moving the bearing
out of the frame (Without Tag 8)
Drum Assembly
