8825/8830 Printer
REP 9.7
Repairs and Adjustments
6. (Figure 8): Reinstall the Toner Cartridge.
7. If new Developer Material has been installed, perform Toner Sensor Calibration Code
[09216].
8. Perform the Electrostatic Series (ADJ 9.2).

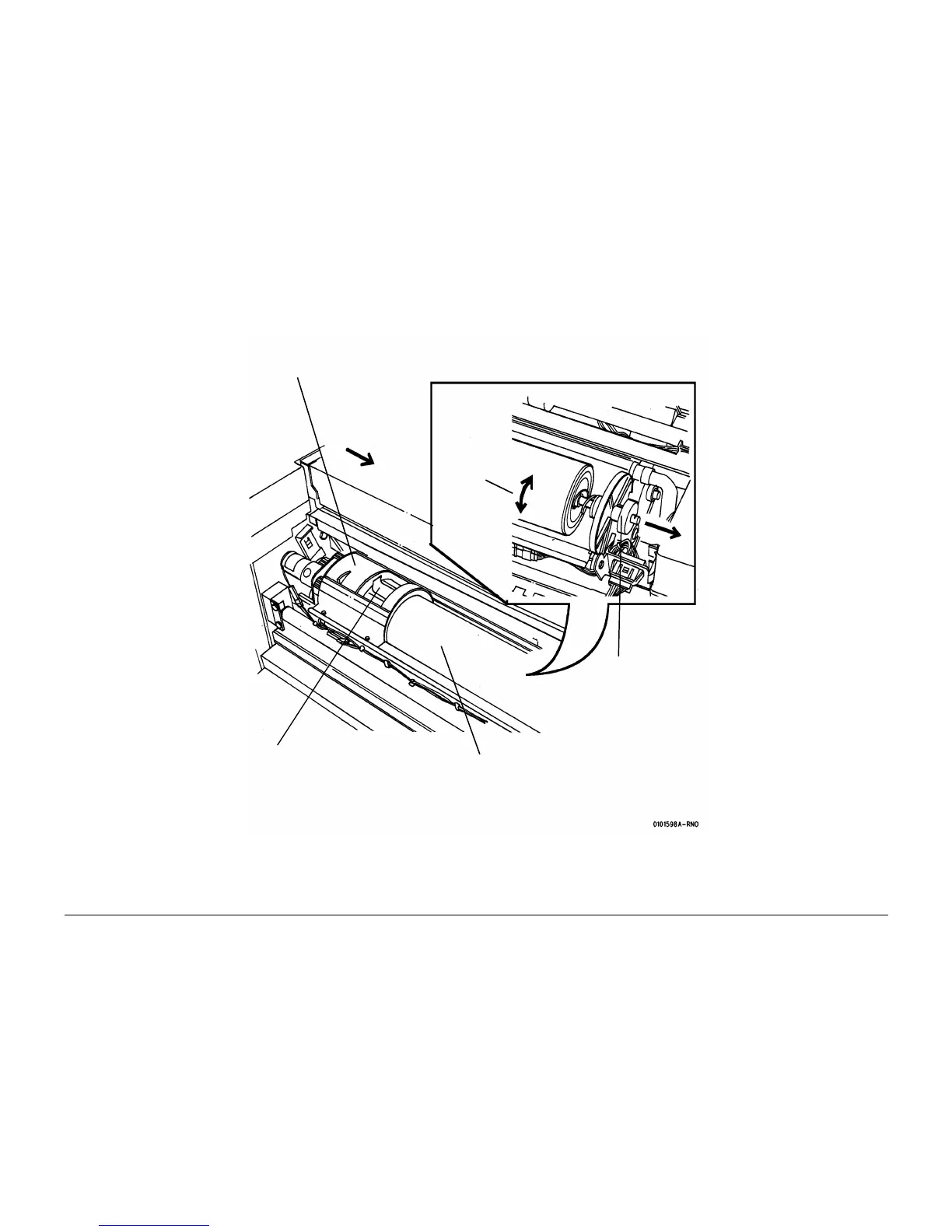

Figure 8 Reinstalling the Toner Cartridge
5
Slide the Top Shield
closed
3
Partially rotate
the Toner Car-
tridge in both
directions to
ensure that the
cartridge is
locked in the
Drive Hub
4
Remove the tape
1
Reinstall the
Toner Cartridge
while performing
Step 2
2
Pull the Plunger
