01/02
4-64
8825/8830 Printer
REP 9.7
Repairs and Adjustments

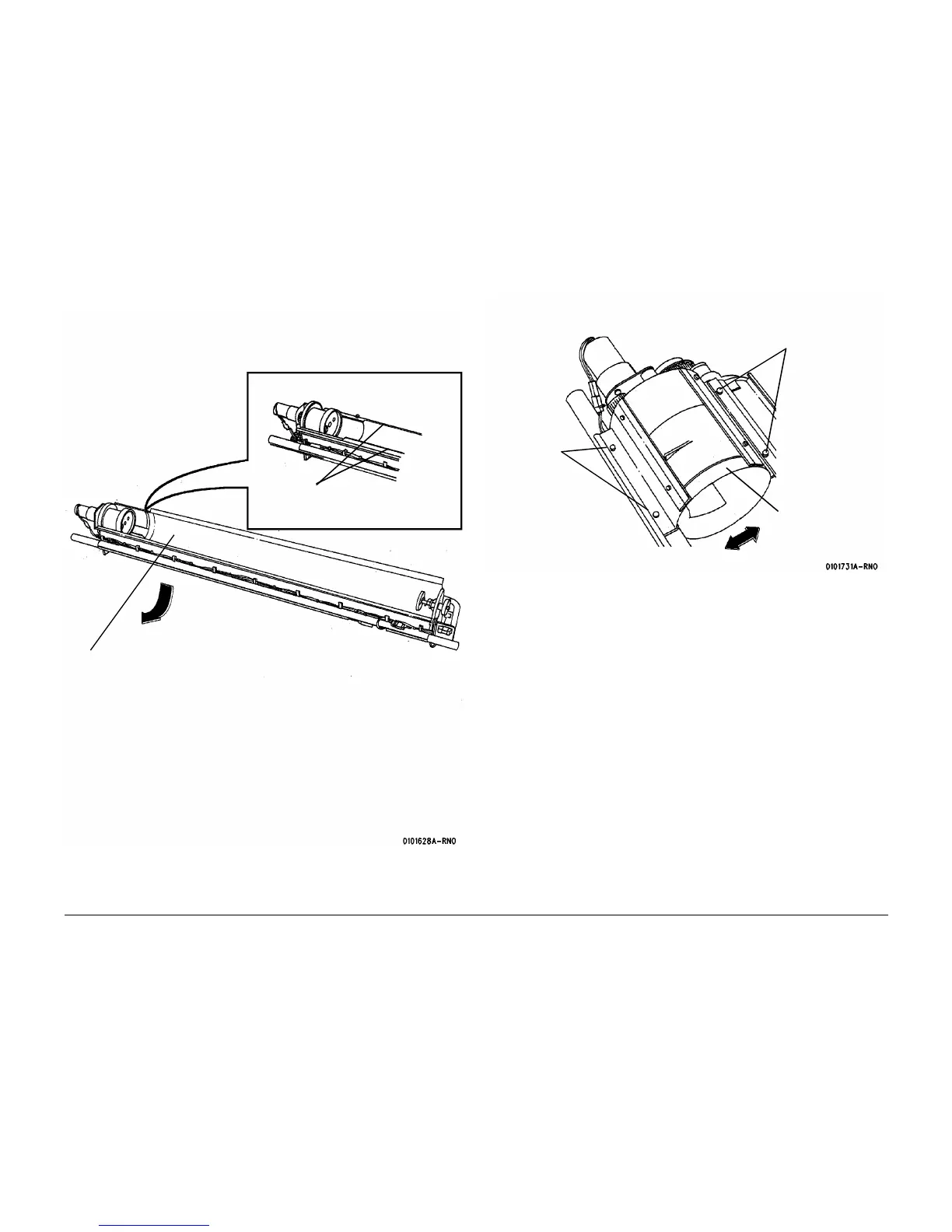

3. (Figure 6): Reinstall the Sump Shield in the Developer Module.
Figure 6 Reinstalling the Sump Shield in the Developer Module
4. (Figure 7): Reinstall the Top Shield, taking care not to overtighten the screws.
Figure 7 Reinstalling the Top Shield
5. Reinstall the Developer Module (REP 9.5).
NOTE: To ensure that the Toner Cartridge is correctly engaged in the Drive Plate, rotate the
cartridge in both directions.
2
Reinstall the Sump Shield under
the edges on the housing
1
Reinstall the Sump
Shield
2
Reinstall the
screws (2)
1
Reinstall the Top
Shield
3
Tighten the screws
(2)
To Next Page
