01/02
4-63
8825/8830 Printer
REP 9.7
Repairs and Adjustments
2. (Figure 5): Reinstall the Air Pressure Tubes.

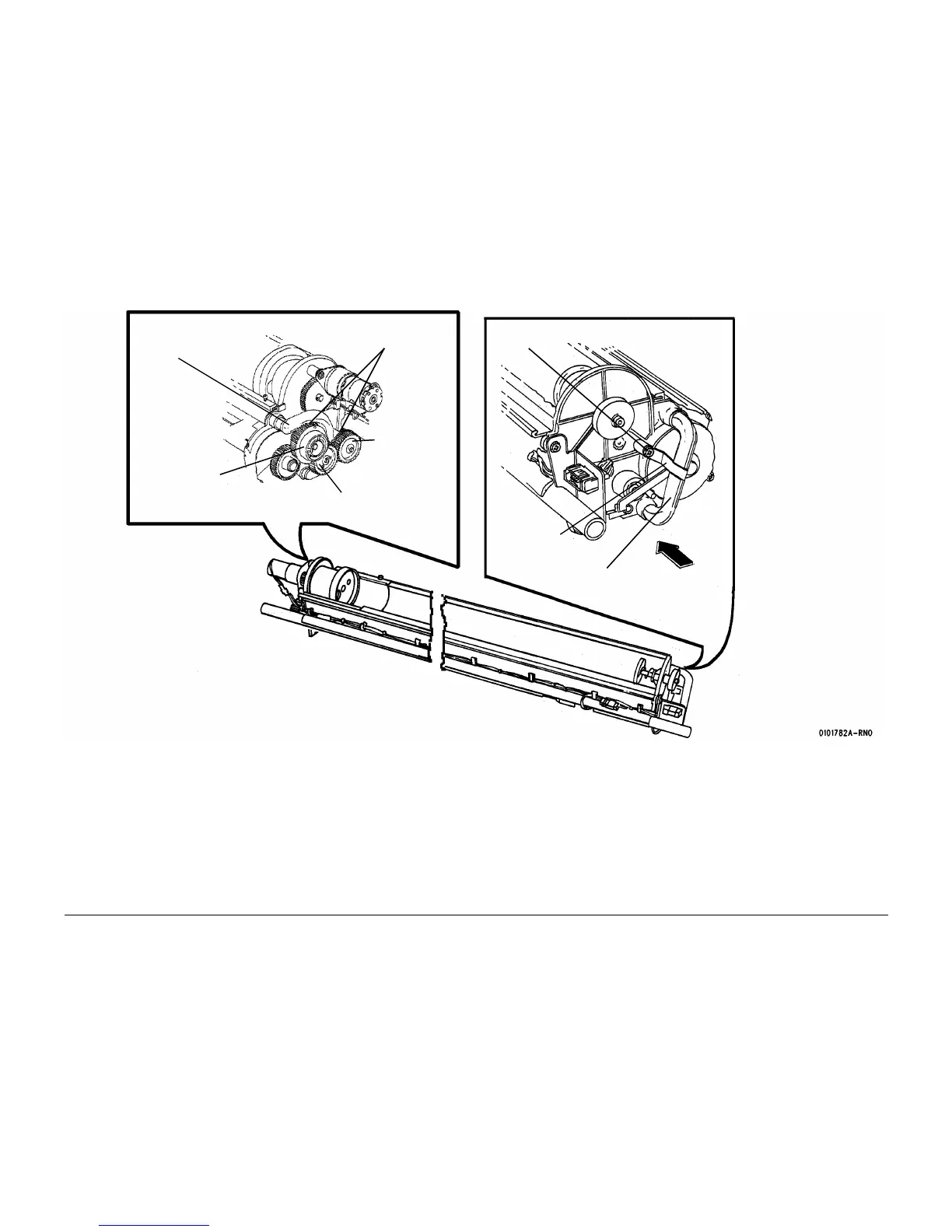

Figure 5 Reinstalling the Air Pressure Tubes
1
Reinstall the Air
Pressure Tube
3
Reinstall the gear
2
Reinstall the gear
4
Reinstall the gear
and the Grip Ring
5
Reinstall the Air
Pressure Tube
6
Reinstall the Air
Pressure Tube
Retainer
7
Reinstall the screw
Flanges
