Xerox 8825 Service Manual

01/02
4-75
8825/8830 Printer
REP 9.14
Repairs and Adjustments
2. (Figure 1): Remove the Cartridge Drive Plate.

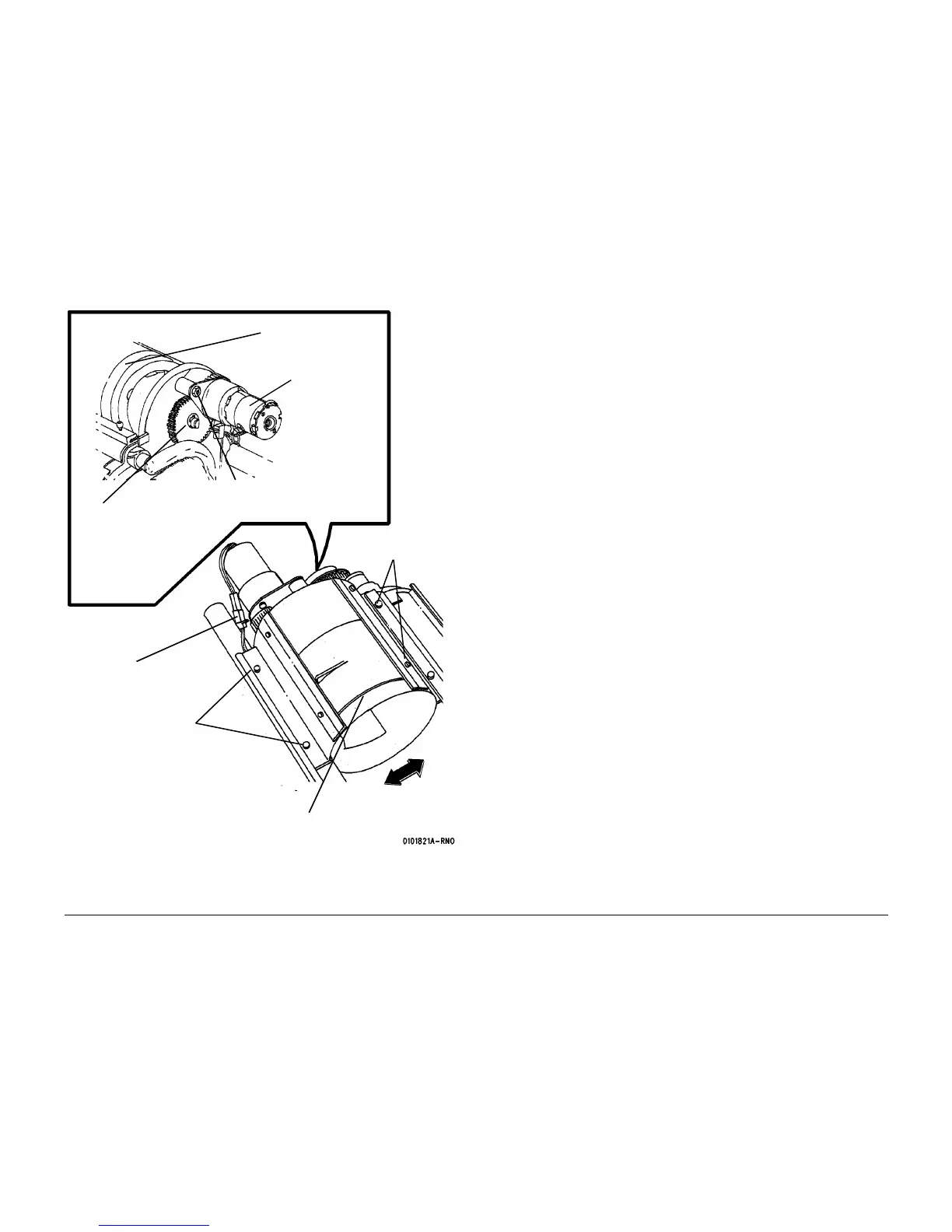

Figure 1 Removing the Cartridge Drive Plate
Replacement
CAUTION
To avoid damage to the Drive Plate Seal, always rotate the drive plate in the direction shown in
Figure 2.
5
Remove the screws (2) and the
Ground Plate
2
Loosen the screws (2)
3
Remove the Top Shield
7
Remove the retainer
and gear
6
Remove the motor
8
Remove the Drive Plate
1
Remove the
screws (2)
4
Disconnect
M1
