Xerox 8825 Service Manual

01/02
4-76
8825/8830 Printer
REP 9.14
Repairs and Adjustments
1. (Figure 2): Reinstall the Cartridge Drive Plate.

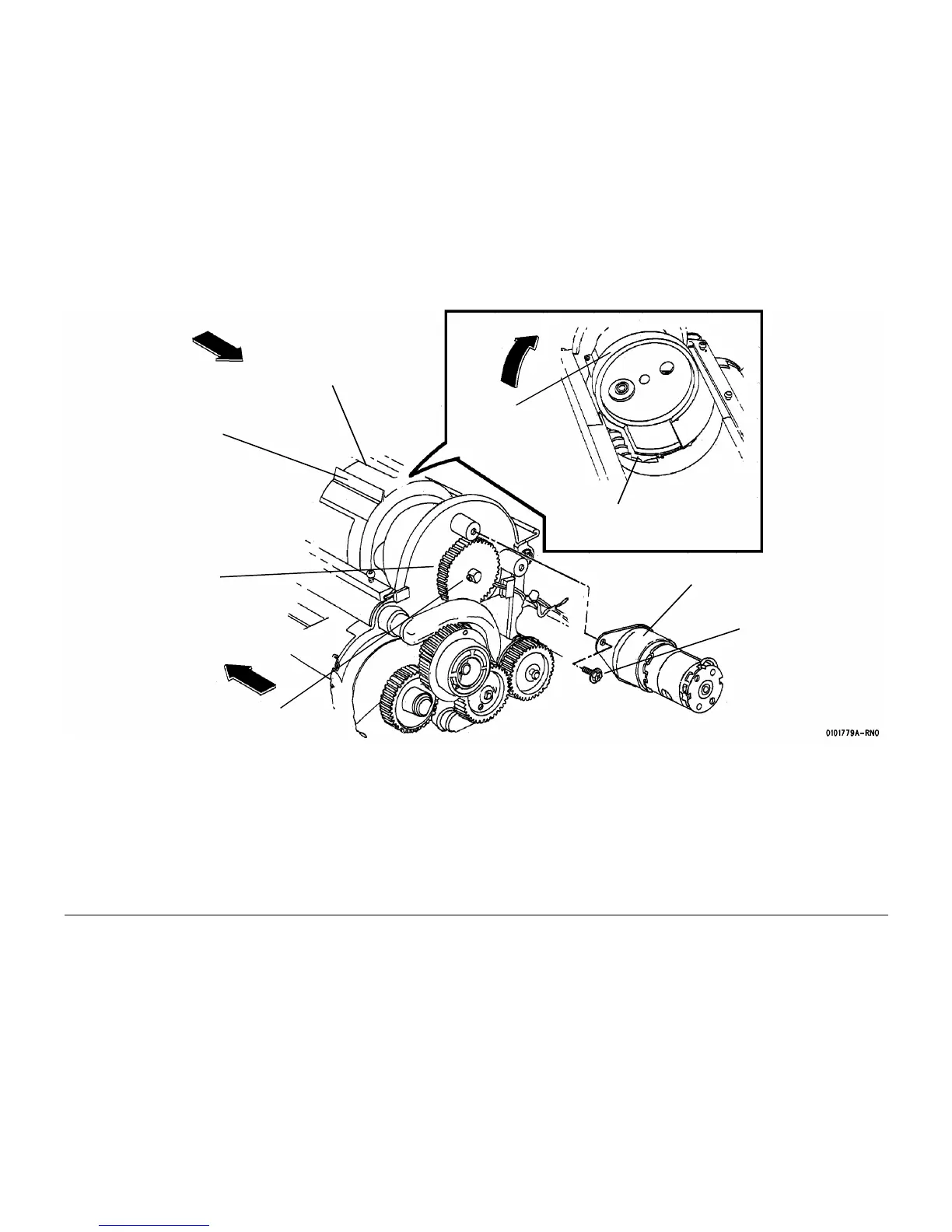

Figure 2 Reinstalling the Cartridge Drive Plate
1
Reinstall the Cartridge
Drive Plate with the
seal up
4
Position the tab at the
bottom
3
Rotate while per-
forming step 4
2
Reinstall the gear
Seal
5
Reinstall the retainer
7
Reinstall the screws (2)
and the Ground Wire
6
Reinstall the motor
