8825/8830 Printer
REP 9.14
Repairs and Adjustments
2. (Figure 3): Reinstall the Top Shield, taking care not to overtighten the screws.

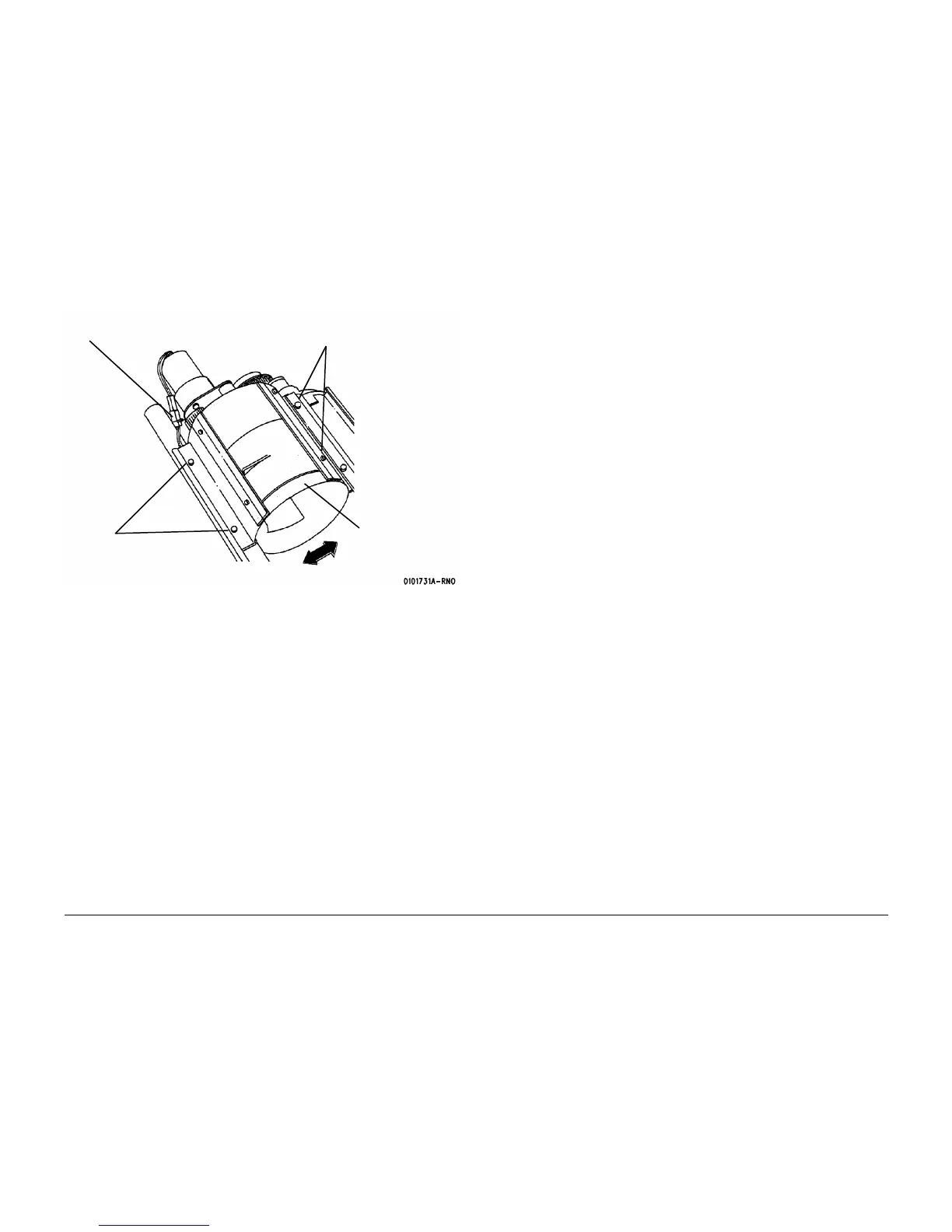

Figure 3 Reinstalling the Top Shield
3. Reinstall the Developer Module.
4
Connect M1
1
Reinstall the Top Shield
2
Reinstall the
screws (2)
3
Tighten the screws (2)
