01/02
4-82
8825/8830 Printer
REP 9.20
Repairs and Adjustments
5. (Figure 1): Prepare to remove the Top Cover (Front).

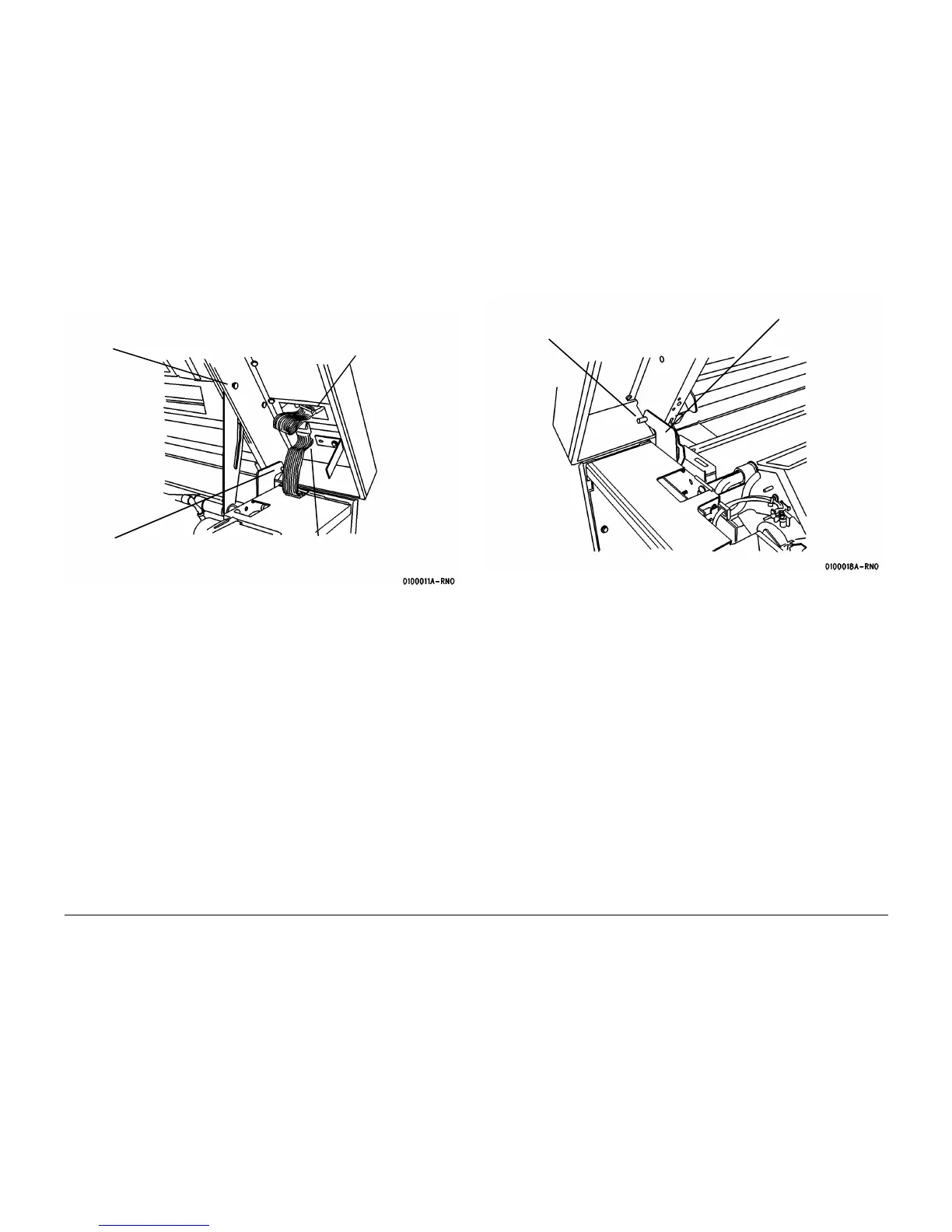

Figure 1 Preparing to Remove the Top Cover (Front)
NOTE: (Figure 2): Observe the way that the Top Cover Pivot Pin engages the hole in the Inter-
lock Plate. This may be a difficult area during reassembly.
6. Close the Top Cover, open the Developer Module Cover, and remove the two pivot pins
shown in Figure 1 andFigure 2.
Figure 2 Top Cover Interlock Plate
7. Close the Developer Module Cover and lift off the Top Cover, being careful to disengage
the small pin from the Interlock Plate.
8. Open the Cutter Drawer.
Top Cover Pivot Pin
(will be removed in
Step 6)
1
Release the cable
3
Remove the Pin
2
Disconnect
A32P1
interlock Plate
Top Cover Pivot Pin
(Will be removed in
step 6)
