01/02
4-96
8825/8830 Printer
REP 10.9
Repairs and Adjustments
2. (Figure 4): Reinstall the Takeup Roll.
3. After reinstallation or replacement of the Web Oiler into the assembly, follow the replace-
ment instructions in Web Oiler Assembly (REP 10.7).

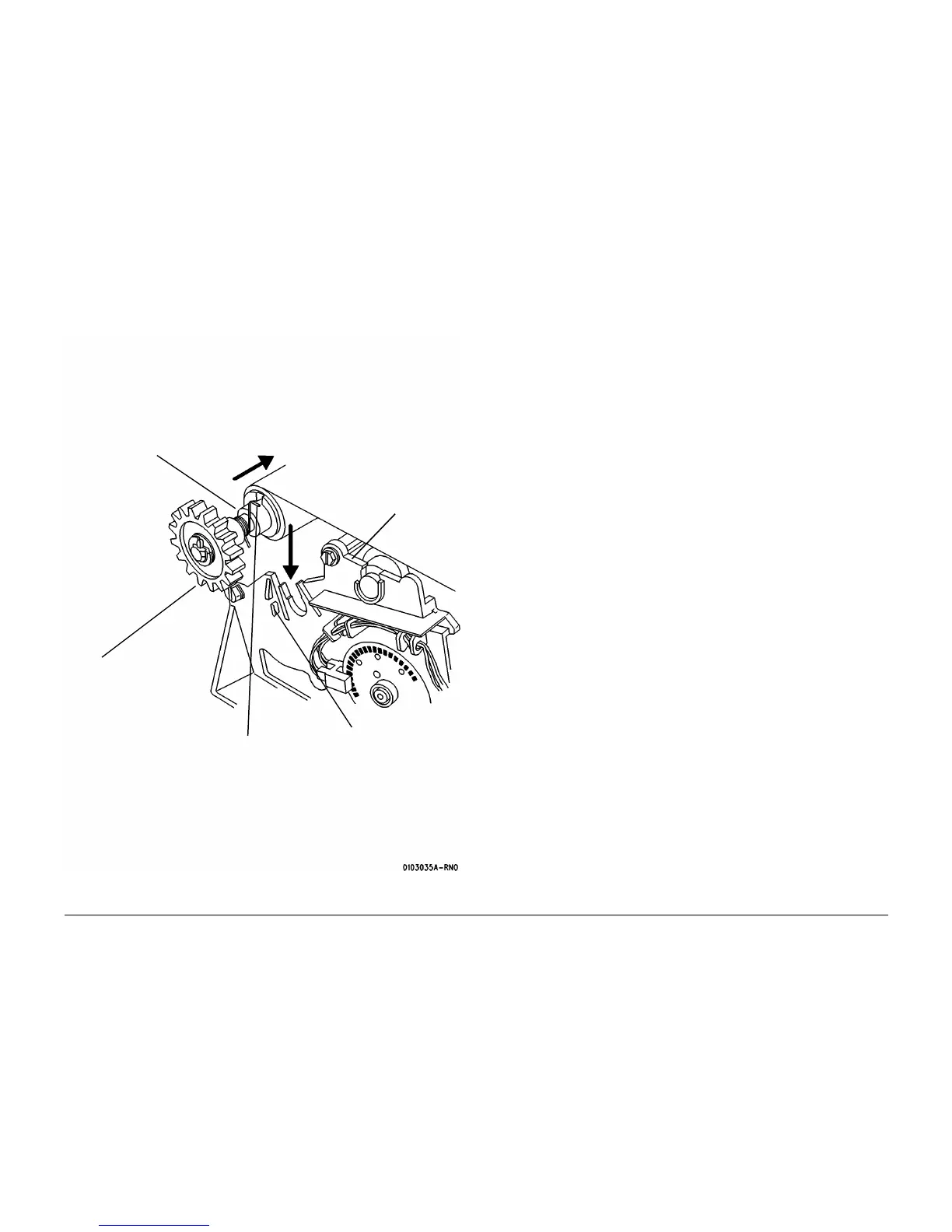

Figure 4 Reinstalling the Takeup Roll
2
Push the Stub Shaft /
Gear Assembly into
the Takeup Roll
1
Mount the opposite
end of the Takeup
Roll onto the RH
Side Plate
3
Push the Stub Shaft /
Gear Assembly onto
the LH Side Plate
4
Rotate the gear counter-
clockwise until the spring
is next to the stop
5
Engage the spring
with the stop on the
LH side Plate
Spring Stop
LH Side Plate
