01/02
4-22
8825/8830 Printer
REP 8.1
Repairs and Adjustments
3. (Figure 4): Reinstall the Media Transport Assembly.

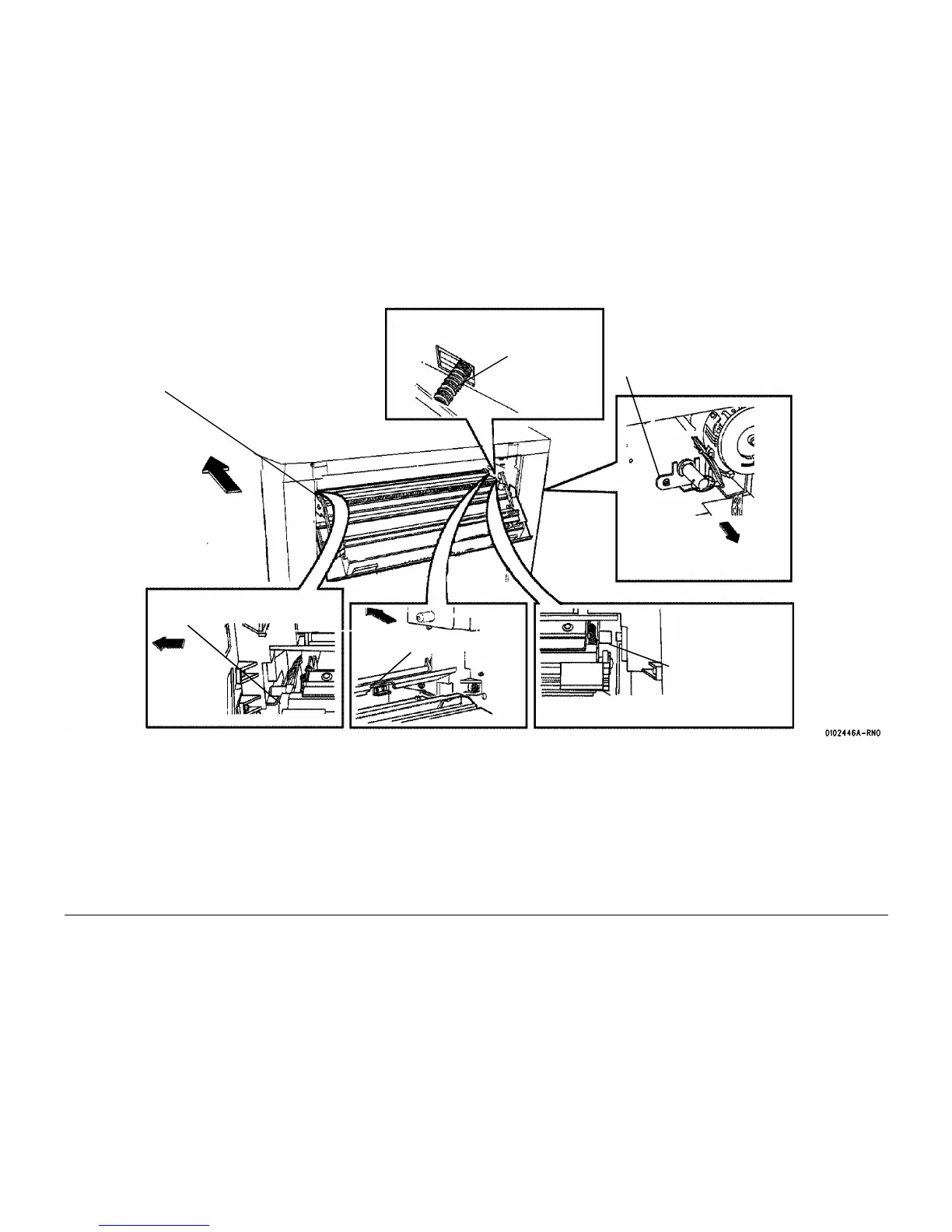

Figure 4 Reinstalling the Media Transport Assembly
1
Place the pin on the ramp
2
Install the Turnaround Baffle under the
Developer Assembly Shelf (both ends)
3
Move the pin into
the locating hole
4
Pull and hold the pin
5
Move the Transport in,
aligning the pin with the
bushing, and release the
pin
6
Rotate and lock the
bracket
7
Route the Drain Hose
and reconnect it
8
Reconnect the Corotron
Leads and Connector A21P1
To Next Page
