Input functions
156

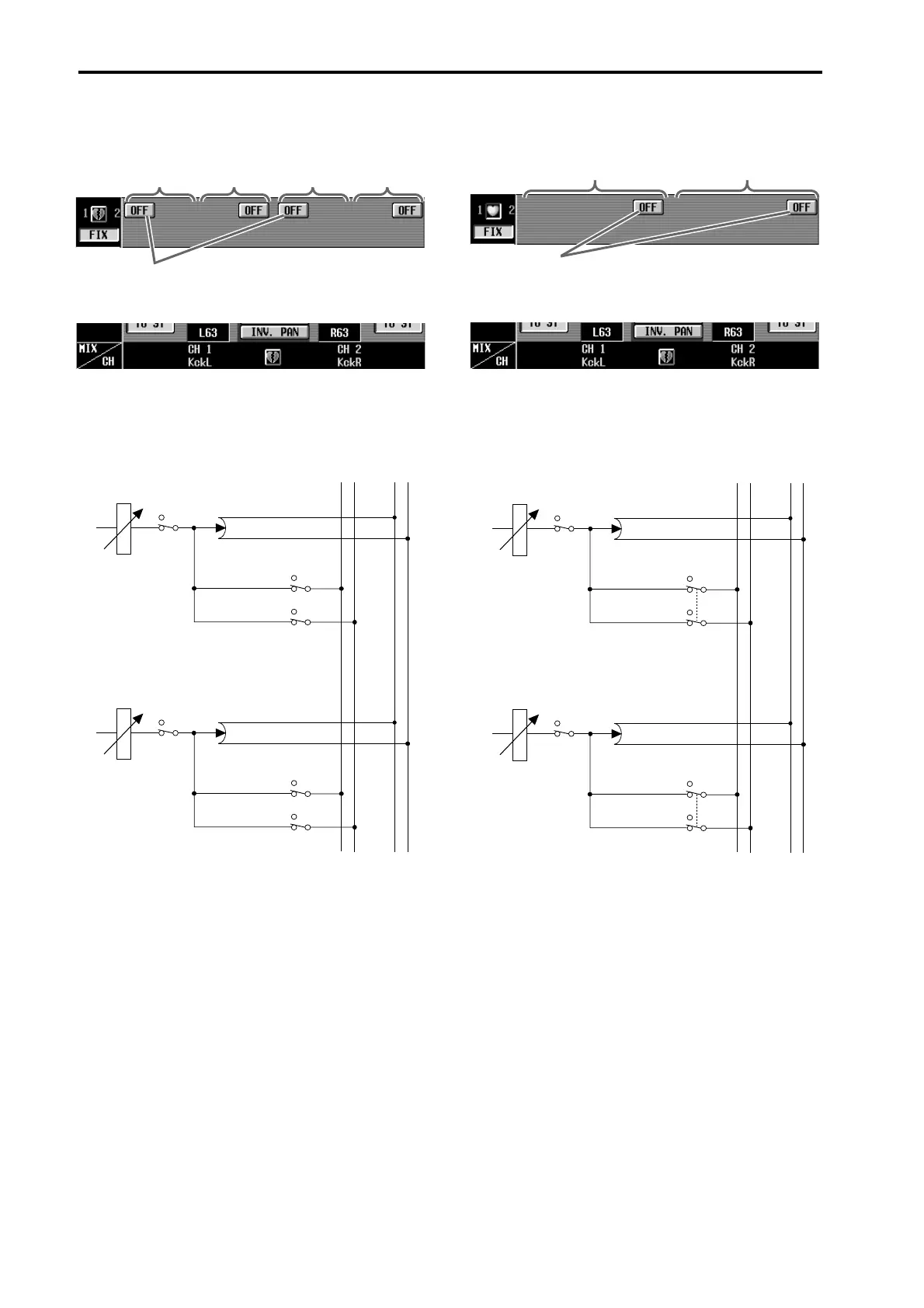

When using a FIX type MIX bus independently
When using FIX type MIX buses in pairs
ON/OFF button
This is an on/off switch for the signal that is sent from the input
channel/ST IN channel to each MIX bus.
Input
channel 1
→MIX bus 1
Input
channel 1
→MIX bus 2
Input
channel 2
→MIX bus 1
Input
channel 2
→MIX bus 2
MIX1 MIX2 STEREO L STEREO R
……
……
FADER
INPUT CHANNEL 1
ON
ON
ON
PAN
MIX1 (FIX)
MIX2 (FIX)
FADER
INPUT CHANNEL 2
ON
ON
ON
PAN
MIX1 (FIX)
MIX2 (FIX)
ON/OFF button
This is an on/off switch for the signal that is sent from the input
channels/ST IN channel to the two adjacent odd-numbered and
even-numbered MIX buses.
Input channel 1
→MIX buses 1/2
Input channel 2
→MIX buses 1/2
MIX1 MIX2 STEREO L STEREO R
……
……
FADER
INPUT CHANNEL 1
ON
ON
PAN
MIX1/2 (FIX)
FADER
INPUT CHANNEL 2
ON
ON
PAN
MIX1/2 (FIX)
