Yamaha CS1D - Page 505

PAN/ROUTING function
157
IN PATCHIN HA/INSERTIN EQ
IN GATE/COMP
IN DELAYIN DCA/MUTE
PAN/ROUTING
IN CH VIEW

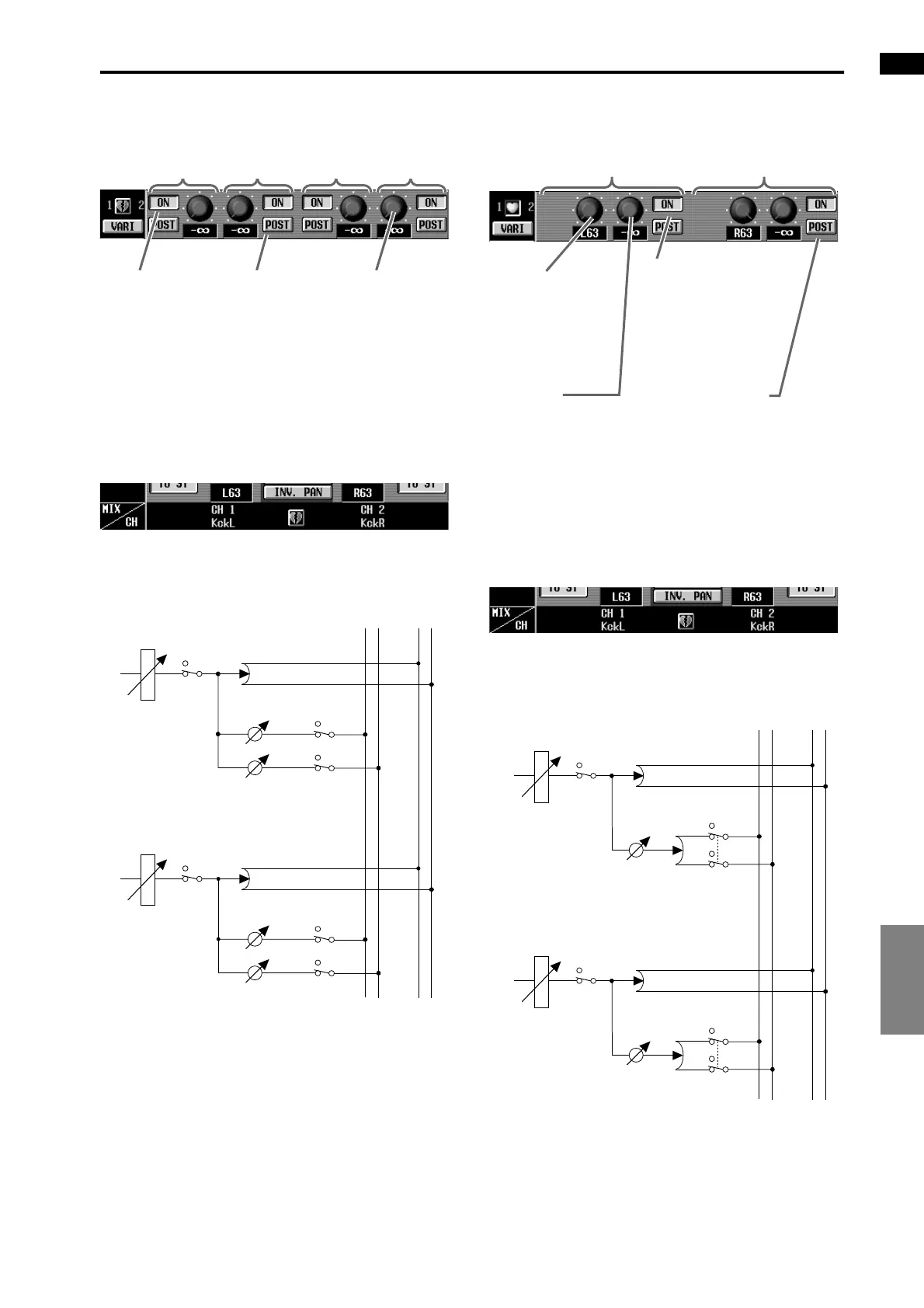

When using VARI type MIX buses independently
When using VARI type MIX buses in pairs
ON/OFF button
This is an on/off
switch for the sig-
nal that is sent
from the input
channel/ST IN
channel to each
MIX bus.
Input
channel 1
→MIX bus 1
PRE/POST button
This button selects either
PRE or POST (post
fader) as the send point
for the signal that is sent
from the input channel/
ST IN channel to each
MIX bus. If PRE is
selected, you can also
use the PRE FADER/
PRE EQ button (next
page, 7) to specify either
pre-fader or pre-EQ.
LEVEL knob
This adjusts the
send level of the
signal that is sent
to each MIX bus
from the input
channel/ST IN
channel.
Input
channel 1
→MIX bus 2
Input
channel 2
→MIX bus 1
Input
channel 2
→MIX bus 2
MIX1 MIX2 STEREO L STEREO R
……
……
FADER
INPUT CHANNEL 1
ON
ON
ON
PAN
MIX1 (VARI)
LEVEL
MIX2 (VARI)
LEVEL
FADER
INPUT CHANNEL 2
ON
ON
ON
PAN
MIX1 (VARI)
LEVEL
MIX2 (VARI)
LEVEL
PAN knob
This adjusts the posi-
tion of the signal that is
sent from the input
channels/ST IN channel
to the odd-numbered
MIX bus and even-num-
bered MIX bus.
Input channel 1
→MIX buses 1/2
ON/OFF button
This is an on/off switch
for the signal that is sent
from the input channels/
ST IN channel to the two
adjacent odd-numbered
→ even-numbered MIX
buses.
LEVEL knob
This adjusts the send level of
the signal that is sent from
the input channels/ST IN
channel to the two adjacent
odd-numbered → even-num-
bered MIX buses.
PRE/POST button
This button selects either PRE or
POST (post fader) as the send
point for the signal that is sent
from the input channels/ST IN
channel to the two adjacent odd-
numbered → even-numbered
MIX buses. If PRE is selected,
you can also use the PRE
FADER/PRE EQ button (next
page, 7) to specify either pre-
fader or pre-EQ.
Input channel 2
→MIX buses 1/2
MIX1 MIX2 STEREO L STEREO R
……
……
FADER
INPUT CHANNEL 1
ON
ON
PAN
PAN
MIX1/2 (VARI)
LEVEL
FADER
INPUT CHANNEL 2
ON
ON
PAN
PAN
MIX1/2 (VARI)
LEVEL
