2.7 Install the Keypad to a Control Panel or Another Device
46 YASKAWA ELECTRIC SIEP C710617 05F YASKAWA AC Drive GA700 Technical Manual
■ Install Outside of Control Panel
1. Use the panel cut-out dimensions in Figure 2.11 and Table 2.9 to cut an opening in the control panel for
the keypad.

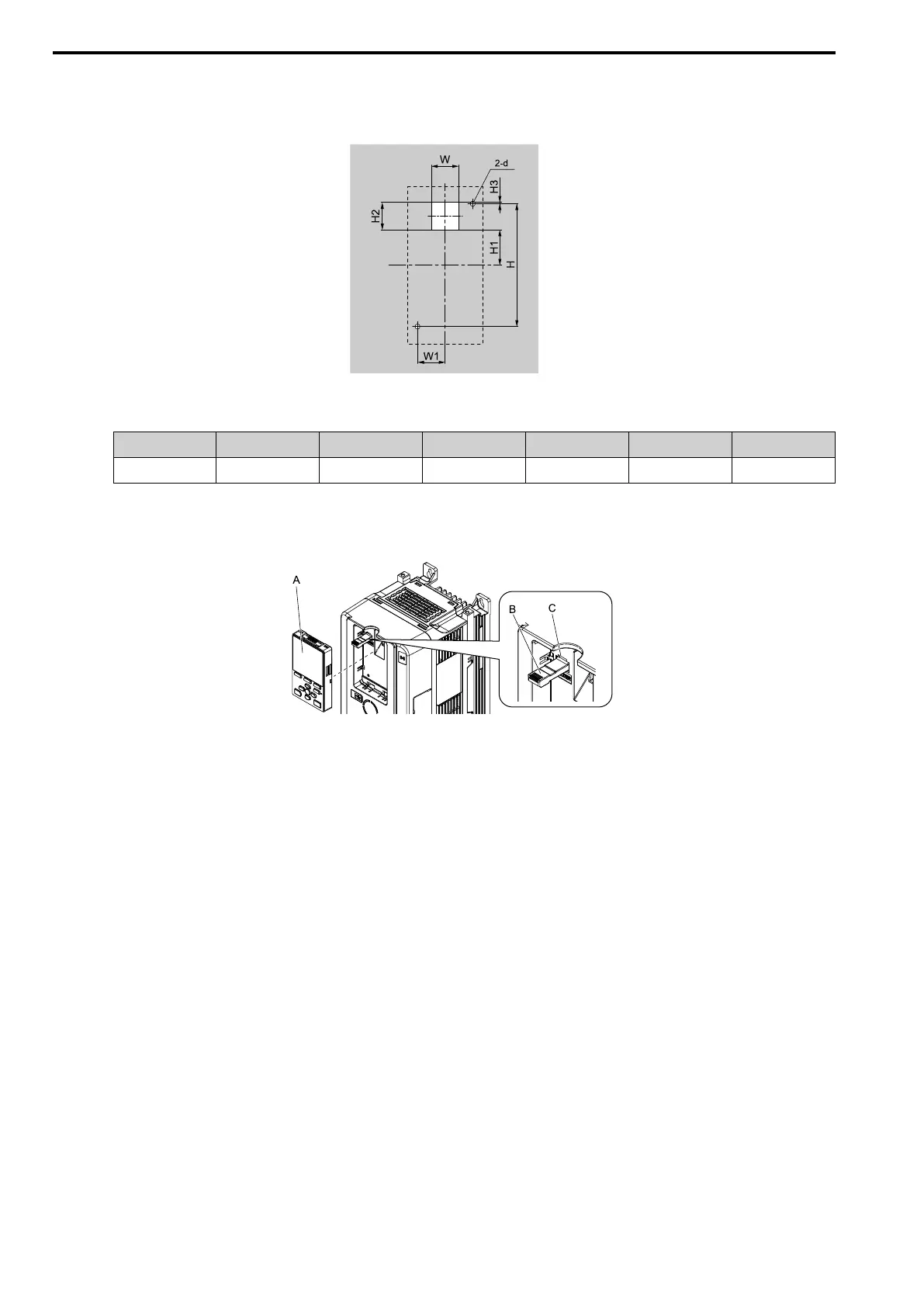

Figure 2.11 Panel Cut-Out Dimensions to Attach Outside of Control Panel
Table 2.9 Panel Cut-out Dimensions mm (in.)
W H W1 H1 H2 H3 d
22 (0.89) 78 (3.07) 22 (0.89) 29 (1.14) 22 (0.89) 1 (0.04) 3.6 (0.14)
2. Remove the keypad and put the keypad connector in the holder on the front cover.
Note:
Insert the end of the keypad connector that has the tab.
A - Keypad
B - Keypad connector
C - Holder
Figure 2.12 Remove the Keypad
3. Put the keypad on the outside of the control panel.
Use M3 screws (6 mm (0.2 in.) depth cross-recessed pan head screws) to attach the keypad from the
inside. Tighten the screws to a tightening torque of 0.49 N∙m to 0.73 N∙m (4.34 lb.∙in. to 6.46 lb.∙in.).
To Next Page
