Mechanical & Electrical
Installation
2
2.7 Install the Keypad to a Control Panel or Another Device
YASKAWA ELECTRIC SIEP C710617 05F YASKAWA AC Drive GA700 Technical Manual 47
A - Keypad
B - M3 screws
C - Control panel

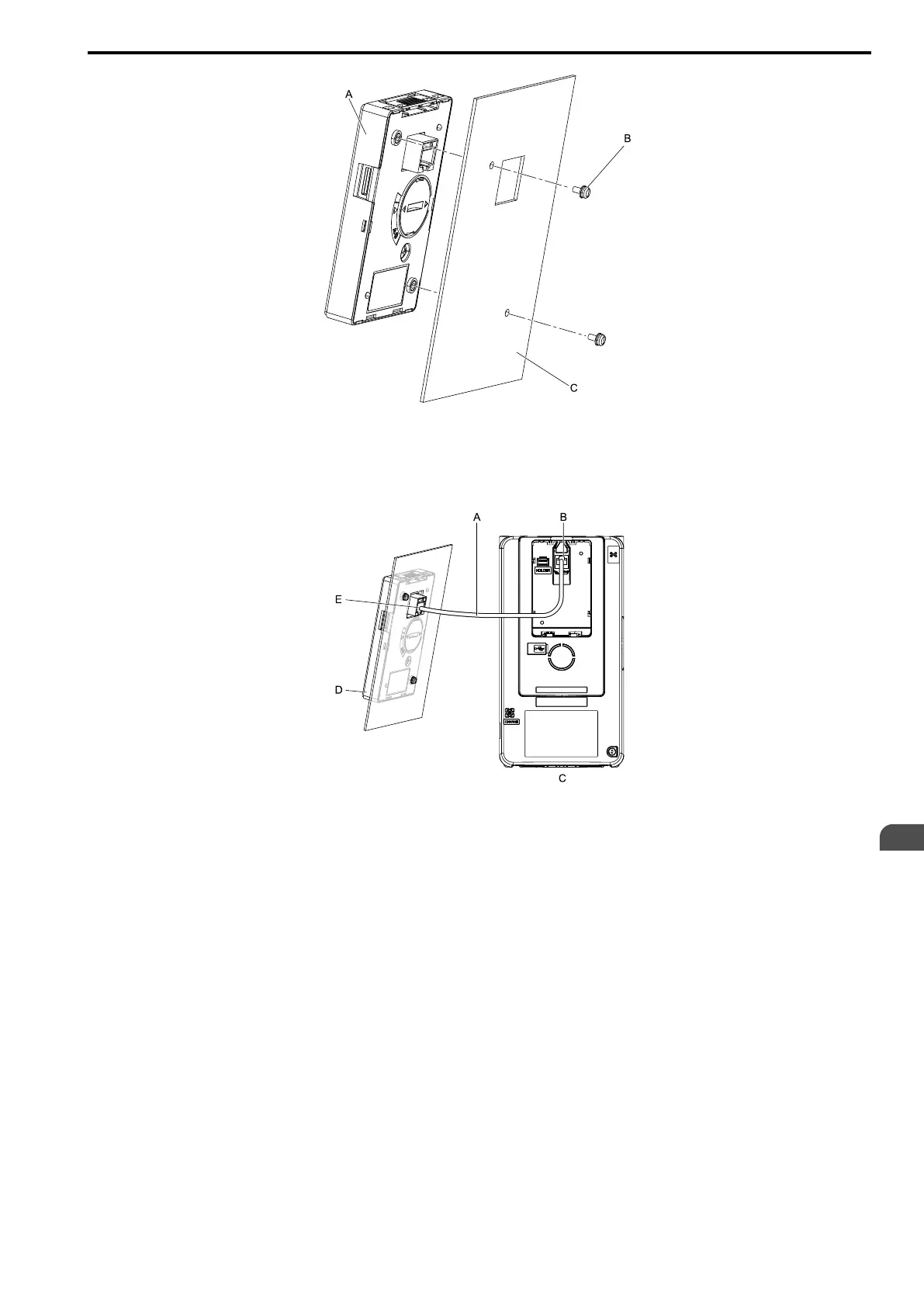

Figure 2.13 Mount to the Outside of Control Panel
4. Use the remote control extension cable to connect the keypad to the drive.
A - Remote control extension
B - Communications connector
C - Drive
D - Keypad
E - Cable connector
Figure 2.14 Connect the Drive and Keypad with the Remote Control Extension Cable
■ Install Inside Control Panel
To attach the keypad inside of the control panel, you must purchase the installation support set, which is sold
separately. Contact Yaskawa or your nearest sales representative to order mounting brackets and mounting
hardware.
Note:
• The installation procedure and panel cut-out dimensions are the same for mounting brackets A and B.
• Use a gasket between the control panel and the keypad in environments with a large quantity of dust or other unwanted airborne
material.
To Next Page
