2.9 Change the Drive Enclosure Type
60 YASKAWA ELECTRIC SIEP C710617 05F YASKAWA AC Drive GA700 Technical Manual

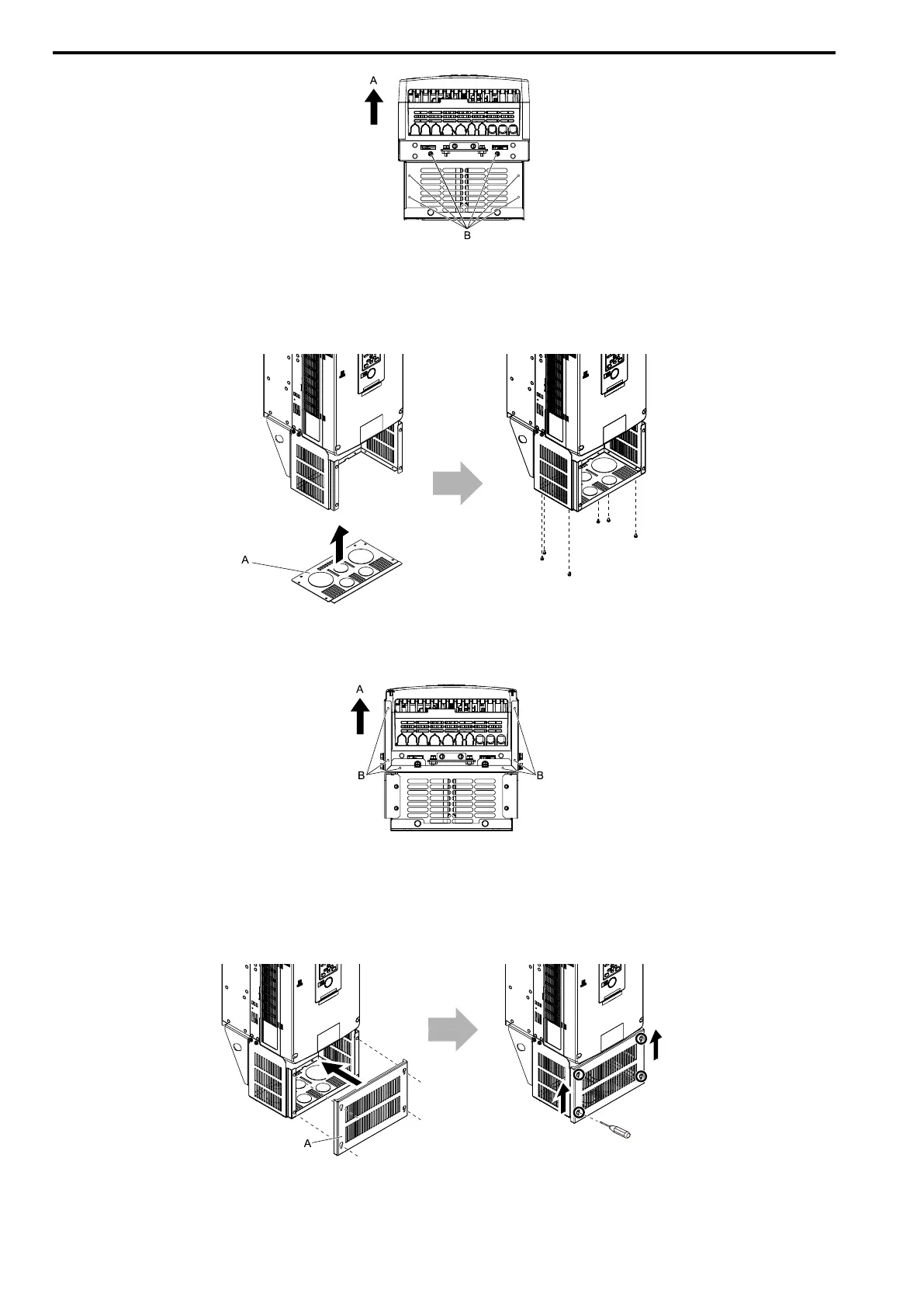

A - Front of drive B - Screw holes on bottom
Figure 2.46 Locations of Screw Holes on Bottom
3. Align the screw holes on conduit bracket 2 with the screw holes on conduit bracket 1.
Tighten the screws to a tightening torque of 0.98 N∙m to 1.33 N∙m (8.67 lb.∙in. to 11.77 lb.∙in.).
A - Conduit bracket 2
Figure 2.47 Attach Conduit Bracket 2
Figure 2.48 shows the locations of the screw holes on the bottom of conduit bracket 1.
A - Front of drive B - Screw holes on bottom
Figure 2.48 Locations of Screw Holes on Bottom of Conduit Bracket 1
4. Align the screw holes on conduit bracket 3 with the screw holes on conduit bracket 2.
Tighten the screws to a tightening torque of 0.98 N∙m to 1.33 N∙m (8.67 lb.∙in. to 11.77 lb.∙in.) and lift
bracket 3 a short distance.
A - Conduit bracket 3
Figure 2.49 Attach Conduit Bracket 3
