Zebra ZM400 Series User Manual

147
Corrective Maintenance
Printhead Assembly
8/9/07 ZM400/ZM600 Maintenance Manual 14207L-001 A
6.
7.
8.
Remove the printhead assembly from the printer.

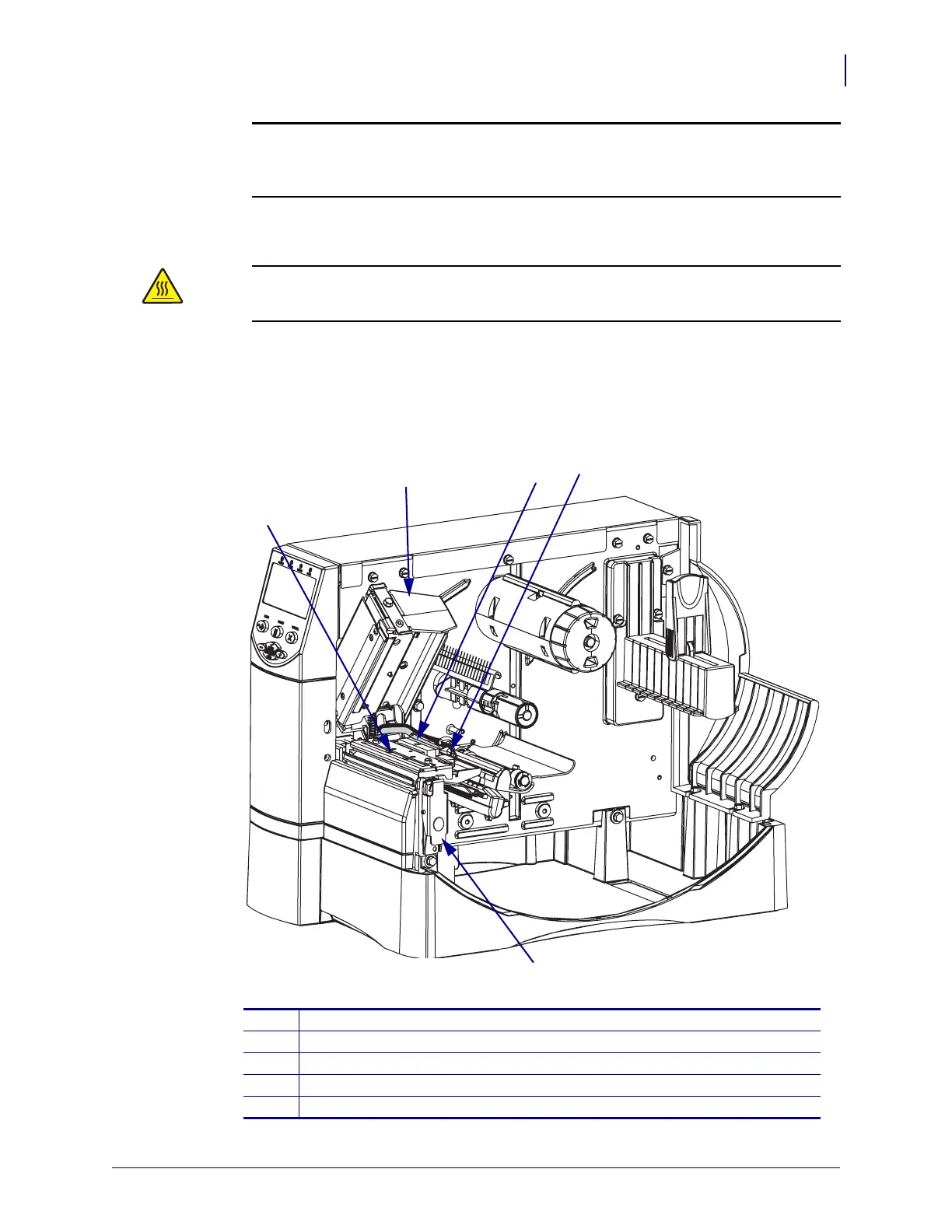

Figure 28 • Remove the Printhead Assembly
Caution • While performing any tasks near an open printhead, remove all rings,
watches, hanging necklaces, identification badges, or other metallic objects that could
touch the printhead.
See Figure 28. Open the print mechanism and latch it in the vertical position.
Caution • The printhead may be hot and could cause severe burns. Allow the
printhead to cool.
Disconnect the printhead data and power cables.
1
Printhead assembly
2
Print mechanism
3
Printhead data cable connector
4
Printhead power cable connector
5
Latch assembly
1
3
4
2
5

Zebra ZM400 Series Specifications

General

Max Print Width	4.09 inches (104 mm)
Max Print Speed	10 inches per second (254 mm per second)
Print Method	Thermal Transfer/Direct Thermal
Resolution	203 dpi (8 dots/mm)
Connectivity	USB 2.0, Serial RS-232, Parallel, Internal Ethernet (10/100), optional wireless
Media Width	1"/25.4 mm to 4.5"/114 mm
Media Length	0.25 to 39 inches (6 to 991 mm)
Media Thickness	0.0023"/0.058 mm to 0.010"/0.25 mm
Ribbon Width	1"/25.4 mm to 4.33"/110 mm
Ribbon Length	1476 feet (450 m)
Supported Media Types	Continuous, die-cut, notch, black-mark
Operating Temperature	40°F to 105°F (5°C to 40°C)
Storage Temperature	-40°F to 140°F (-40°C to 60°C)
