Zebra ZM400 Series

Corrective Maintenance
Ribbon Strip Plate
190
14207L-001 A ZM400/ZM600 Maintenance Manual 8/9/07
3. See Figure 65. Remove the two mounting screws securing the ribbon strip plate to the
print mechanism.

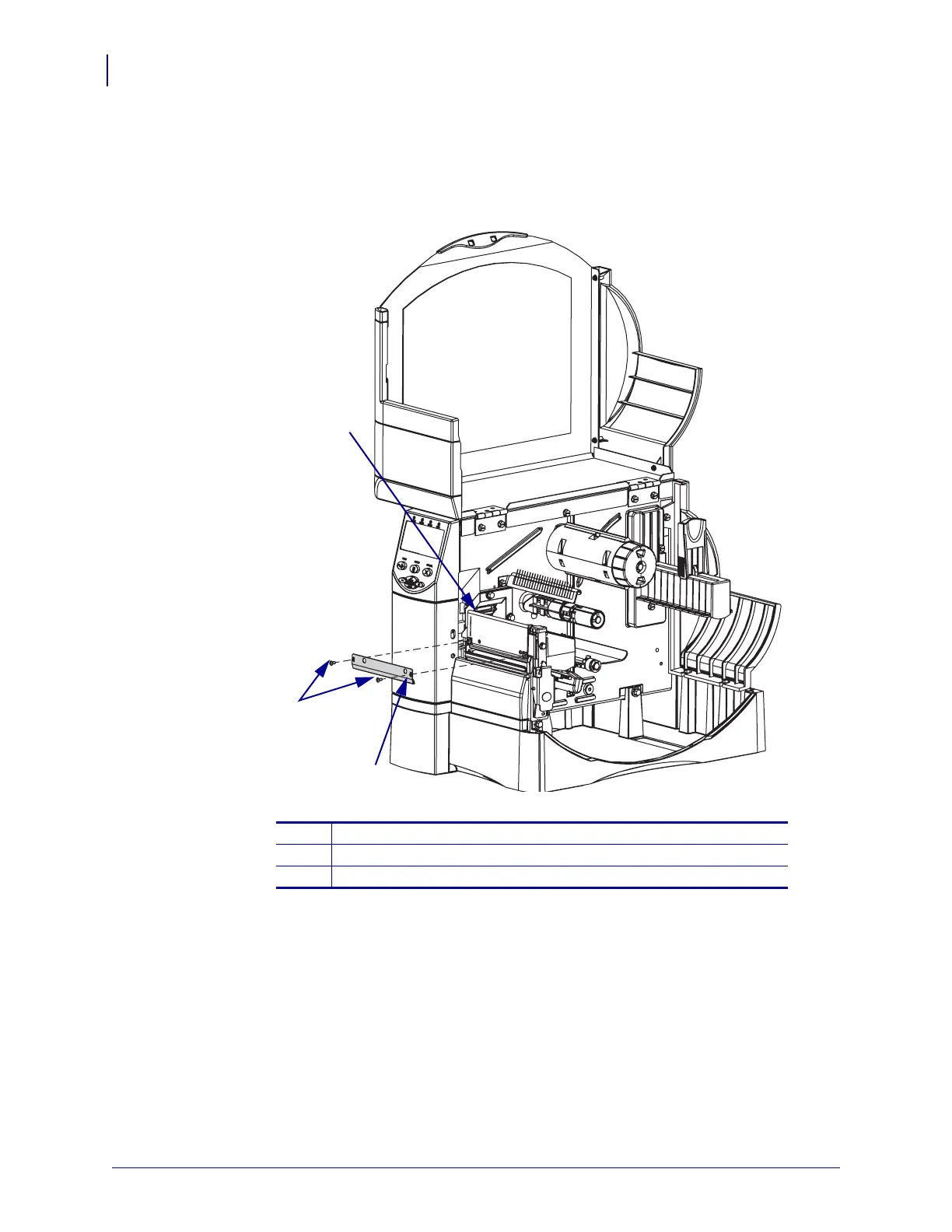

Figure 65 • Remove and Install the Ribbon Strip Plate
4. Remove the ribbon strip plate.
1
Print mechanism
2
Ribbon strip plate
3
Mounting screws (2)
1
2
3
