Corrective Maintenance
Stepper Motor Assembly
262
14207L-001 A ZM400/ZM600 Maintenance Manual 8/9/07
3. See Figure 128. Pull the top of the shield away from the main frame and fold it down to
access the stepper motor connector.
4. Disconnect the stepper motor cable from the power supply, J2.

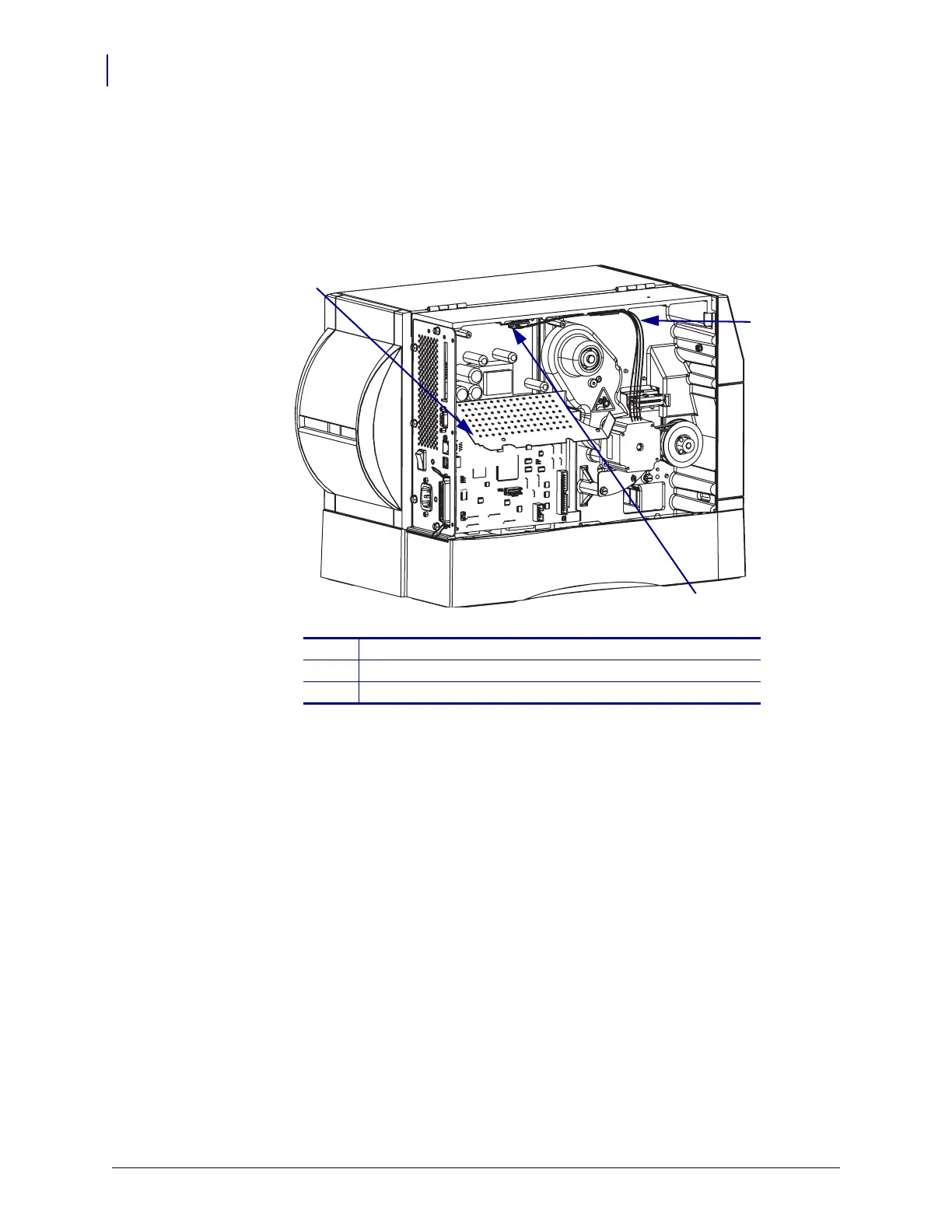

Figure 128 • Gain Access the Power Supply
1
Shield
2
Stepper motor cable
3
Stepper motor connector, J2
3
1
2
