Corrective Maintenance
Ribbon Supply Spindle
310
14207L-001 A ZM400/ZM600 Maintenance Manual 8/9/07
14. See Figure 173. Remove the ribbon supply spindle (RSS) mounting screw and washer.

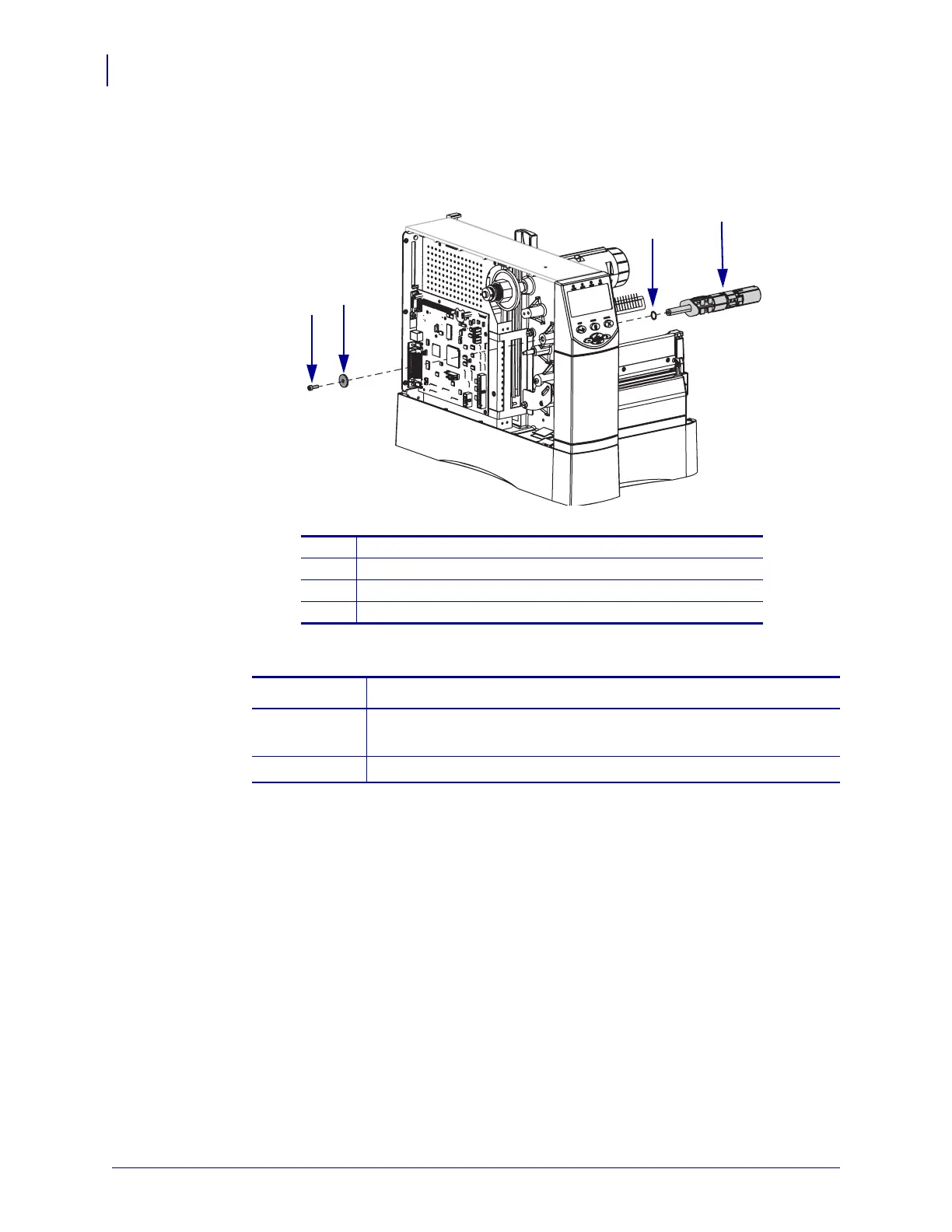

Figure 173 • Remove the Ribbon Supply Spindle
15. Which model printer do you have?
1
Mounting screw
2
Mounting washer
3
Washer
4
RSS
If you have… Then…
ZM400 a. Push the spindle out of the main frame.
b. Go to Install the New Ribbon Supply Spindle on page 311.
ZM600 Continue with the next step.
