Zebra ZM400 Series User Manual

Corrective Maintenance
Peel Maintenance Assembly
336
14207L-001 A ZM400/ZM600 Maintenance Manual 8/9/07
2. See Figure 198. Notice the pems and the mounting slots.

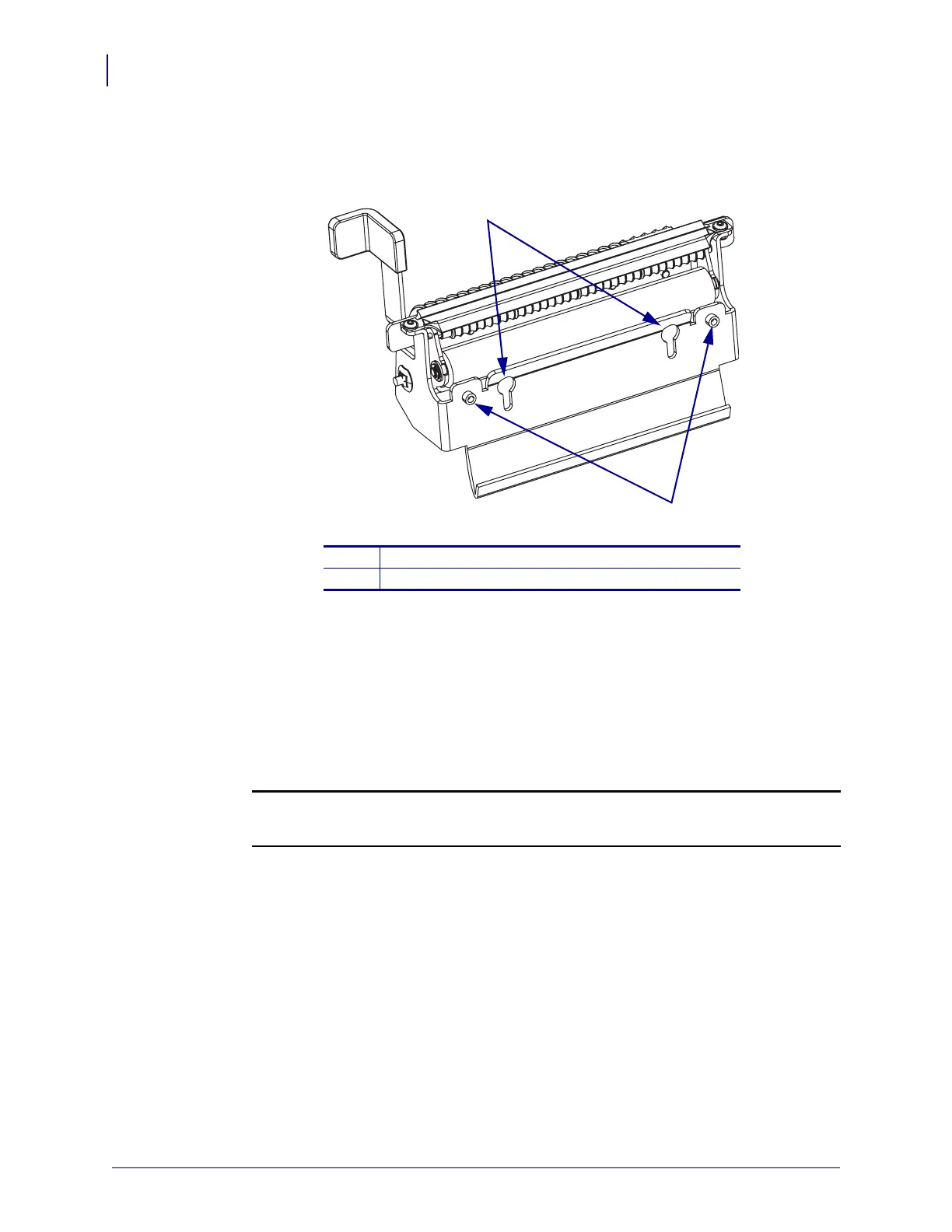

Figure 198 • Rear View of Peel Assembly
3. See Figure 197 on page 335. Install the peel assembly with the pems to the rear and the
opening in the mounting slot to the top.
a. Insert the mounting slot opening over the two screws and lift up on the assembly.
b. Now push the assembly back against the vertical surface of the platen housing then
down, so that the pems are resting on the horizontal surface of the platen housing.
4. Maintain a slight pressure downward on the peel assembly, to keep the pems on the
horizontal surface, and tighten the mounting screws.
5.
6.
Reinstall the AC power cord and data cables.
7. Turn on (l) the printer.
8. Refer to your User Guide for information on selecting the Peel Option Mode.
1
Mounting slots (2)
2
Pems (2)
1
2
Caution • When you are loading media or ribbon, remove all jewelry that could come
into contact with the printhead or other printer parts.
Reinstall the media and ribbon.

Zebra ZM400 Series Specifications

General

Max Print Width	4.09 inches (104 mm)
Max Print Speed	10 inches per second (254 mm per second)
Print Method	Thermal Transfer/Direct Thermal
Resolution	203 dpi (8 dots/mm)
Connectivity	USB 2.0, Serial RS-232, Parallel, Internal Ethernet (10/100), optional wireless
Media Width	1"/25.4 mm to 4.5"/114 mm
Media Length	0.25 to 39 inches (6 to 991 mm)
Media Thickness	0.0023"/0.058 mm to 0.010"/0.25 mm
Ribbon Width	1"/25.4 mm to 4.33"/110 mm
Ribbon Length	1476 feet (450 m)
Supported Media Types	Continuous, die-cut, notch, black-mark
Operating Temperature	40°F to 105°F (5°C to 40°C)
Storage Temperature	-40°F to 140°F (-40°C to 60°C)
