363
Corrective Maintenance
Platen Roller
8/9/07 ZM400/ZM600 Maintenance Manual 14207L-001 A
3. See Figure 222. Open and latch the print mechanism in the vertical position.

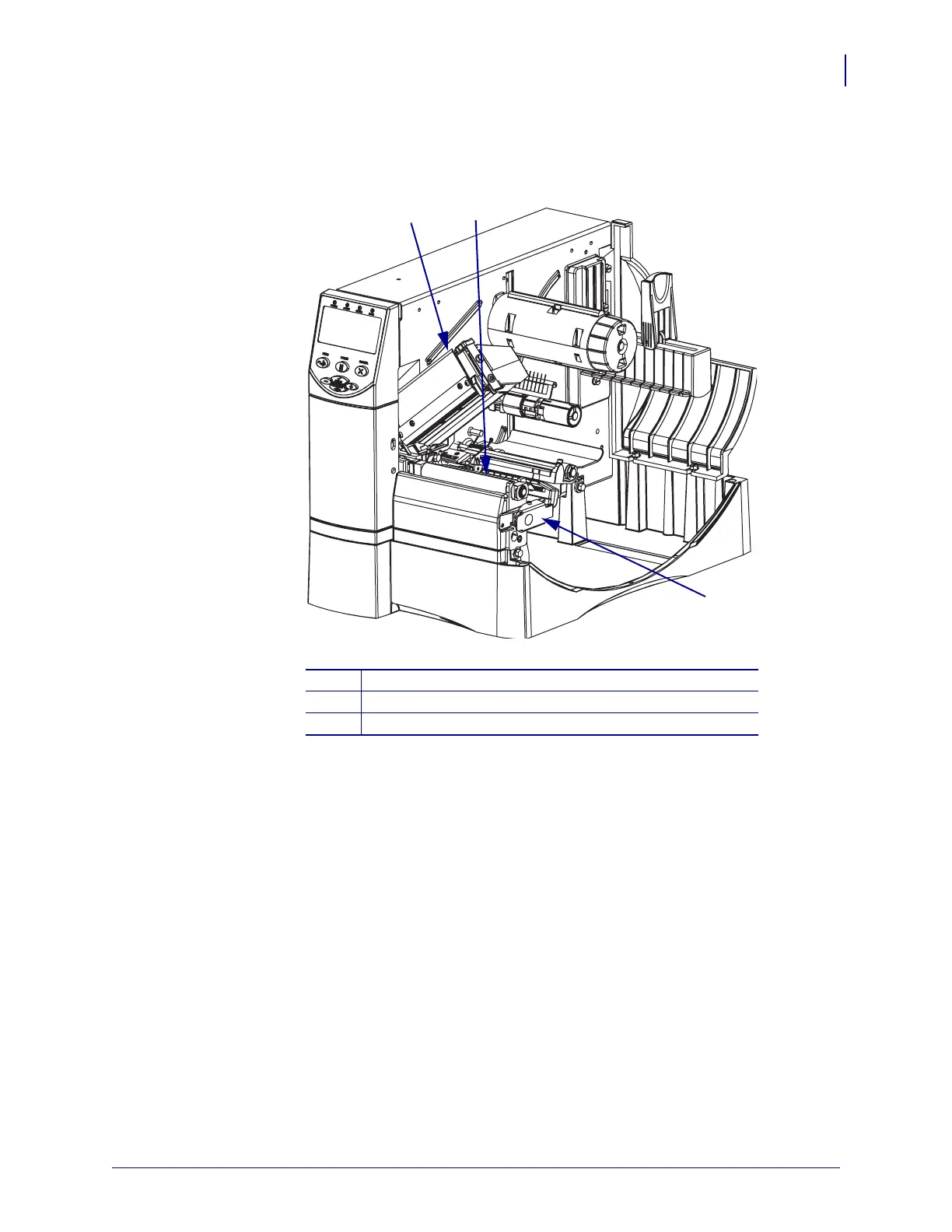

Figure 222 • Slide the Platen Roller Assembly
4. If you have a peel unit installed, you will have to open it.
5. Turn the latch assembly clockwise to gain access to the platen roller.
1
Print mechanism
2
Platen roller assembly
3
Latch assembly
1
3
2
