Zebra ZM400 Series

Corrective Maintenance
Platen Roller
366
14207L-001 A ZM400/ZM600 Maintenance Manual 8/9/07
2. See Figure 225 and Figure 226. Slide the platen roller assembly into the platen housing,
while aligning the platen roller bearings with the platen housing and the drive pin with the
slot in the drive shaft.

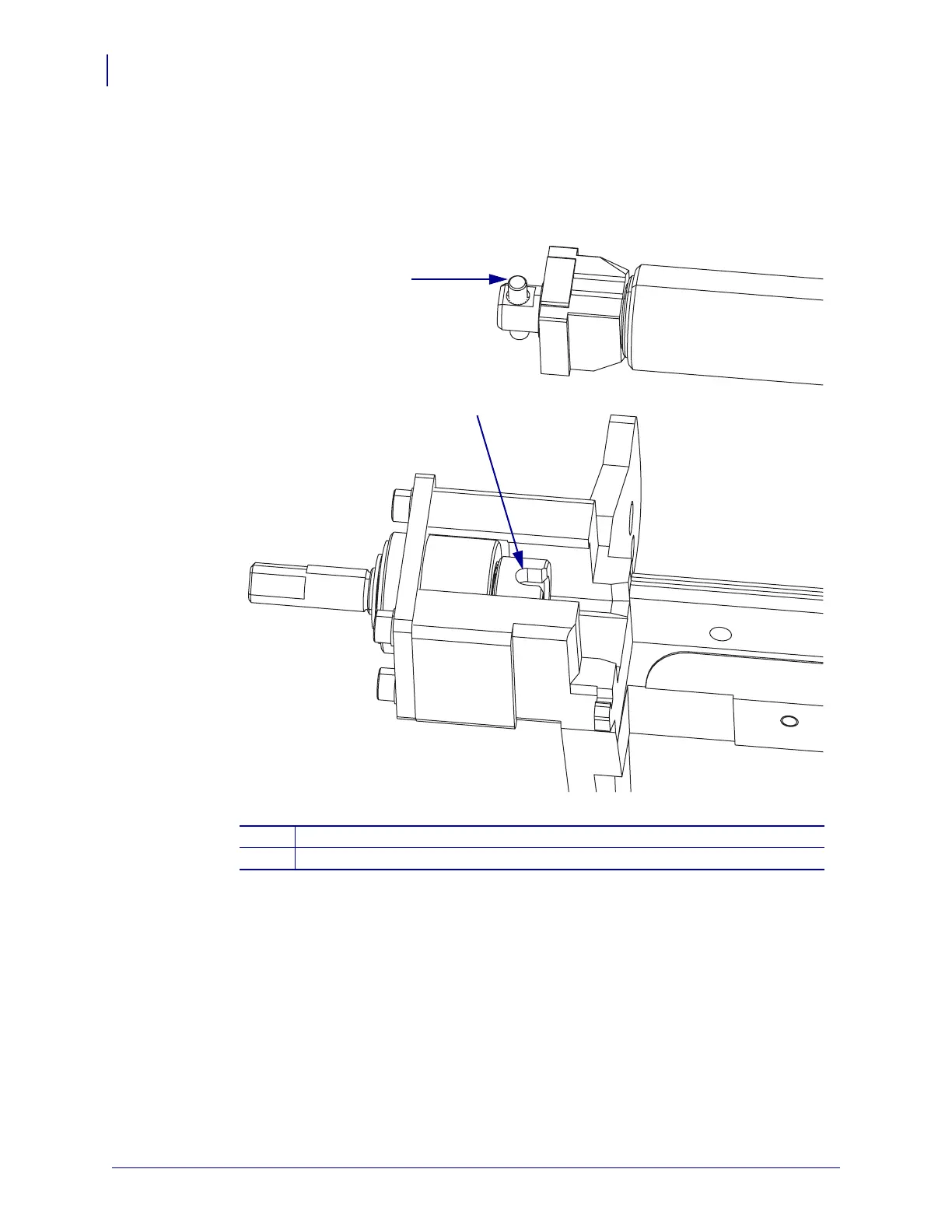

Figure 225 • Align the Drive Pin and Drive Shaft
1
Platen roller drive pin
2
Drive shaft slot
2
1
