Corrective Maintenance
Platen Coupling
370
14207L-001 A ZM400/ZM600 Maintenance Manual 8/9/07

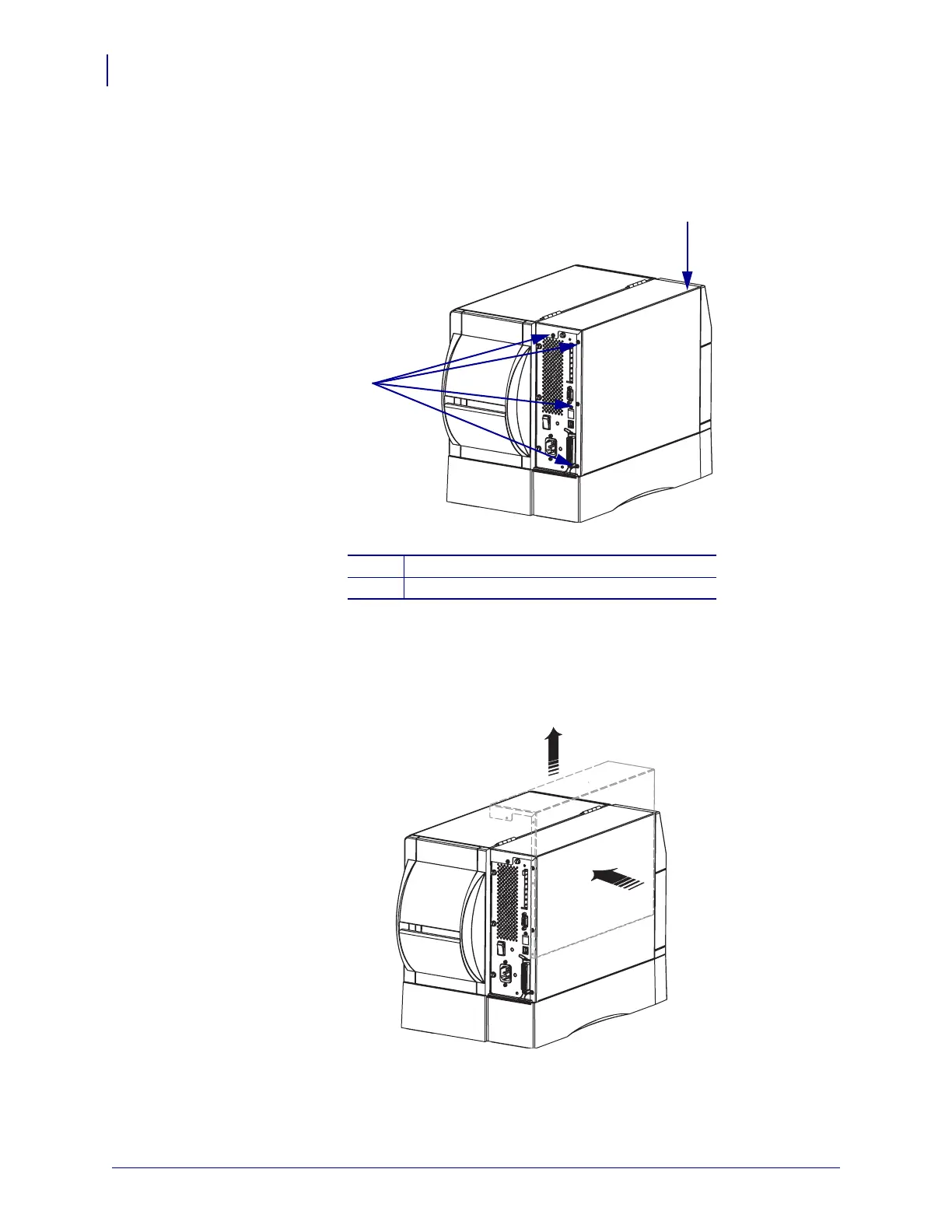

4. See Figure 228. Remove the four mounting screws on the rear of the printer.
Figure 228 • Remove the Electronics Cover Mounting Screws
5. See Figure 229. Remove the electronics cover by pressing in on the electronics cover with
the palm of your hand, and then lifting up on the cover.
Figure 229 • Remove the Electronics Cover
1
Electronics cover
2
Mounting screws (4)
2
1
