Drawings and Parts
Upper Media Sensor
8/9/07 ZM400/ZM600 Maintenance Manual 14207L-001 A

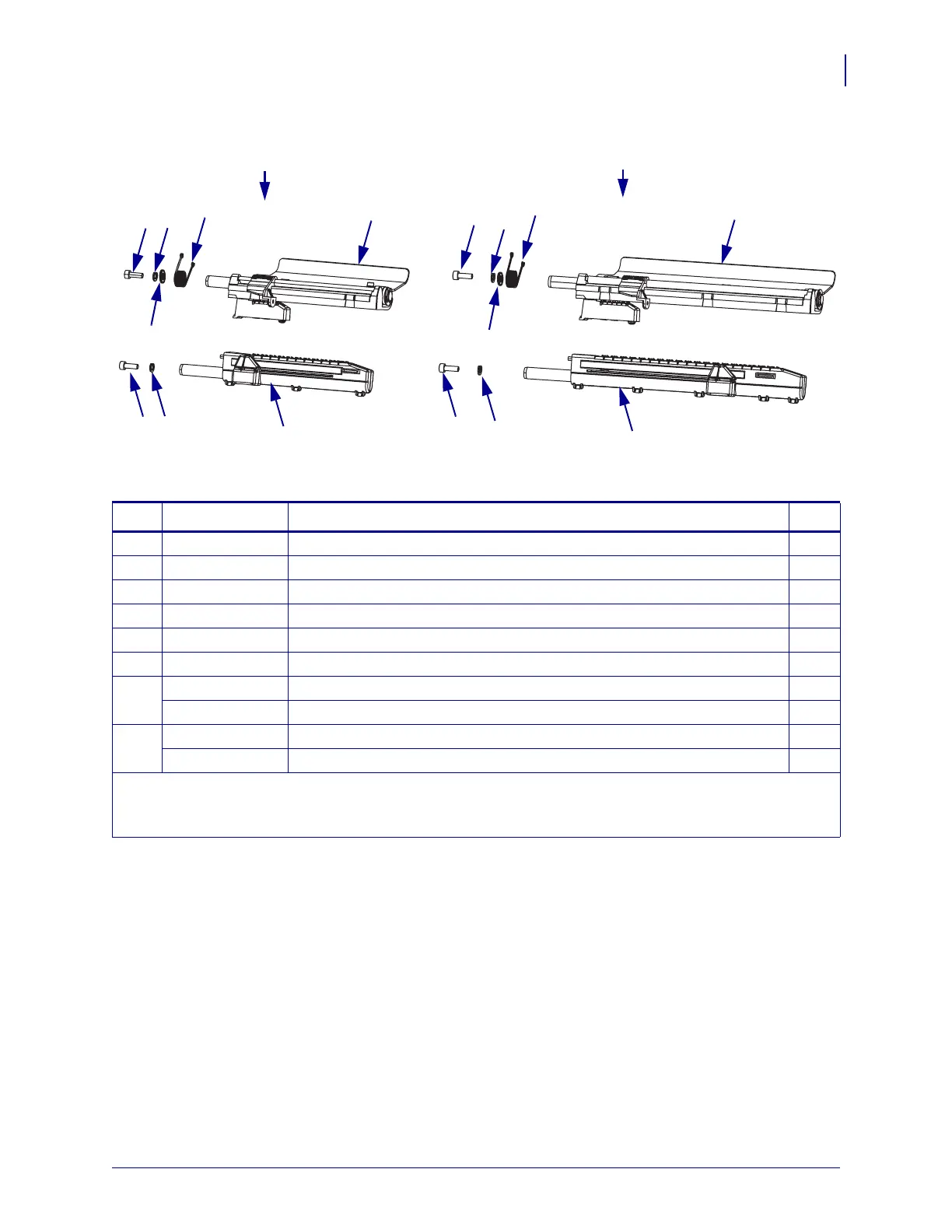

Figure F • Media Sensors
1
2
3
6
3
6
7
7
3
4
8
3
4
8
4
4
5
5
Table F • Media Sensors
Item Part Number Description Qty
1
79848M
ZM400 Media Sensor Maintenance Kit 1
2
79849M
ZM600 Media Sensor Maintenance Kit 1
3
HW45931
Split Lock Washer, M3 (sold in quantities of 25) 2
4
HW10432
Screw, M3 × 0.5 × 6 (sold in quantities of 25) 2
5
HW78806
Flat Washer, M4 (sold in quantities of 25) 1
6
77256
Torsion Spring 1
7
79287
ZM400 Upper Media Sensor Assembly 1
79369
ZM600 Upper Media Sensor Assembly 1
8
79565
ZM400 Lower Media Sensor Assembly 1
79566
ZM600 Lower Media Sensor Assembly 1
Bold = Part available for purchase
Light italic = Part not available for individual purchase, listed and shown for reference only
Boxes = Parts contained in kits listed above

Zebra ZM400 Series Specifications

General

Max Print Width	4.09 inches (104 mm)
Max Print Speed	10 inches per second (254 mm per second)
Print Method	Thermal Transfer/Direct Thermal
Resolution	203 dpi (8 dots/mm)
Connectivity	USB 2.0, Serial RS-232, Parallel, Internal Ethernet (10/100), optional wireless
Media Width	1"/25.4 mm to 4.5"/114 mm
Media Length	0.25 to 39 inches (6 to 991 mm)
Media Thickness	0.0023"/0.058 mm to 0.010"/0.25 mm
Ribbon Width	1"/25.4 mm to 4.33"/110 mm
Ribbon Length	1476 feet (450 m)
Supported Media Types	Continuous, die-cut, notch, black-mark
Operating Temperature	40°F to 105°F (5°C to 40°C)
Storage Temperature	-40°F to 140°F (-40°C to 60°C)
