Zebra ZM400 Series User Manual

Drawings and Parts
Ribbon Supply Spindle
448
14207L-001 A ZM400/ZM600 Maintenance Manual 8/9/07

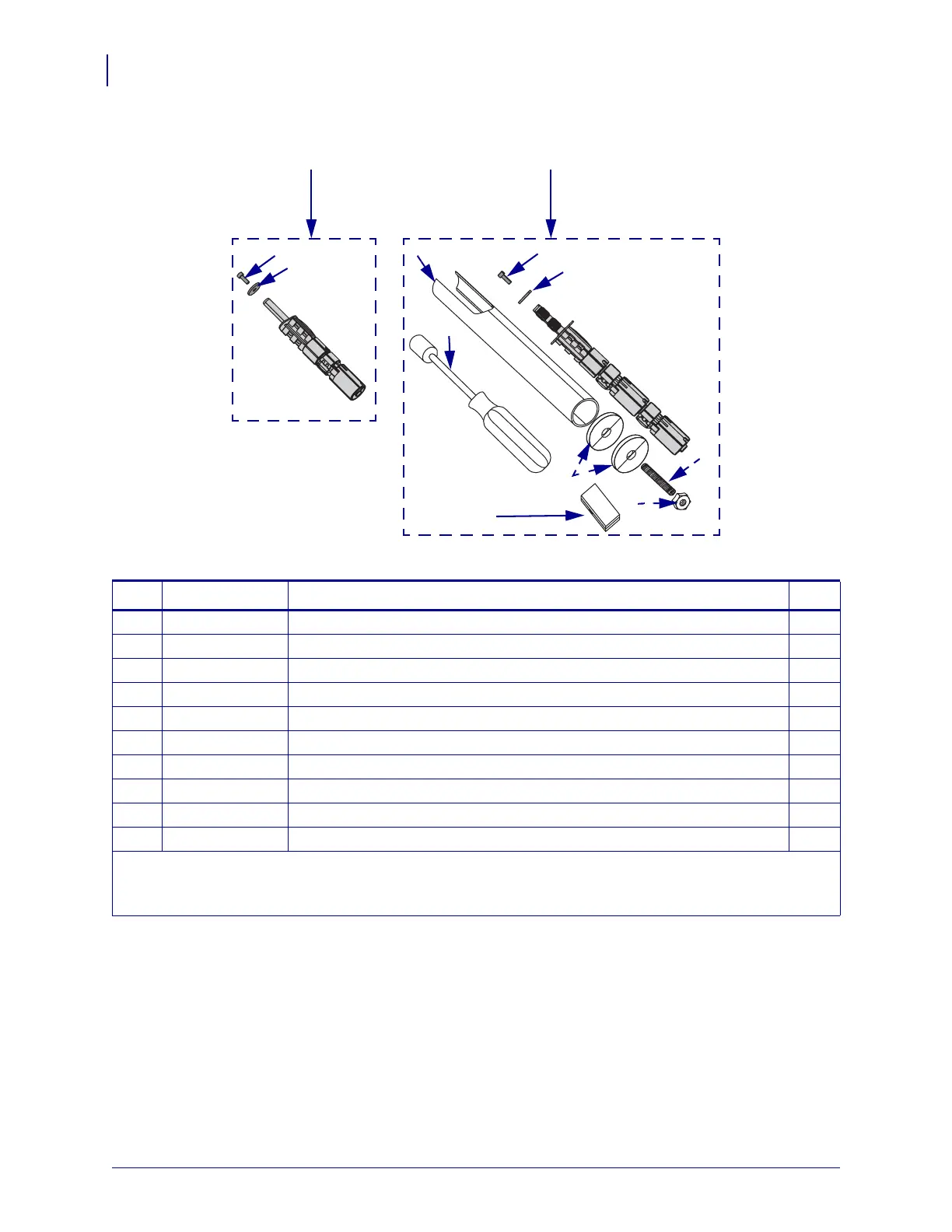

Figure G • Ribbon Supply Spindle
G
rease
1 4
2
3
2
3
8
10
9
5
6
7
Table G • Ribbon Supply Spindle
Item Part Number Description Qty
1
79828M
ZM400 Ribbon Supply Spindle, inside coated 1
2
HW10432
Screw, M4 × 0.7 × 12 1
3
HW33807
Flat Washer, 0.198 × 0.75 × 0.085 1
4
79829M
ZM600 Ribbon Supply Spindle 1
5
77594
Screw, M4 × 0.7 × 60 1
6
77598
Nut, M4 1
7
N/A
Grease 1
8
77620
Flat Washer 2
9
77621
7 mm Nutdriver 1
10
77593
Spindle Remove Tool 1
Bold = Part available for purchase
Light italic = Part not available for individual purchase, listed and shown for reference only
Boxes = Parts contained in kits listed above

Zebra ZM400 Series Specifications

General

Max Print Width	4.09 inches (104 mm)
Max Print Speed	10 inches per second (254 mm per second)
Print Method	Thermal Transfer/Direct Thermal
Resolution	203 dpi (8 dots/mm)
Connectivity	USB 2.0, Serial RS-232, Parallel, Internal Ethernet (10/100), optional wireless
Media Width	1"/25.4 mm to 4.5"/114 mm
Media Length	0.25 to 39 inches (6 to 991 mm)
Media Thickness	0.0023"/0.058 mm to 0.010"/0.25 mm
Ribbon Width	1"/25.4 mm to 4.33"/110 mm
Ribbon Length	1476 feet (450 m)
Supported Media Types	Continuous, die-cut, notch, black-mark
Operating Temperature	40°F to 105°F (5°C to 40°C)
Storage Temperature	-40°F to 140°F (-40°C to 60°C)
