Drawings and Parts
Print Mechanism View 1
8/9/07 ZM400/ZM600 Maintenance Manual 14207L-001 A

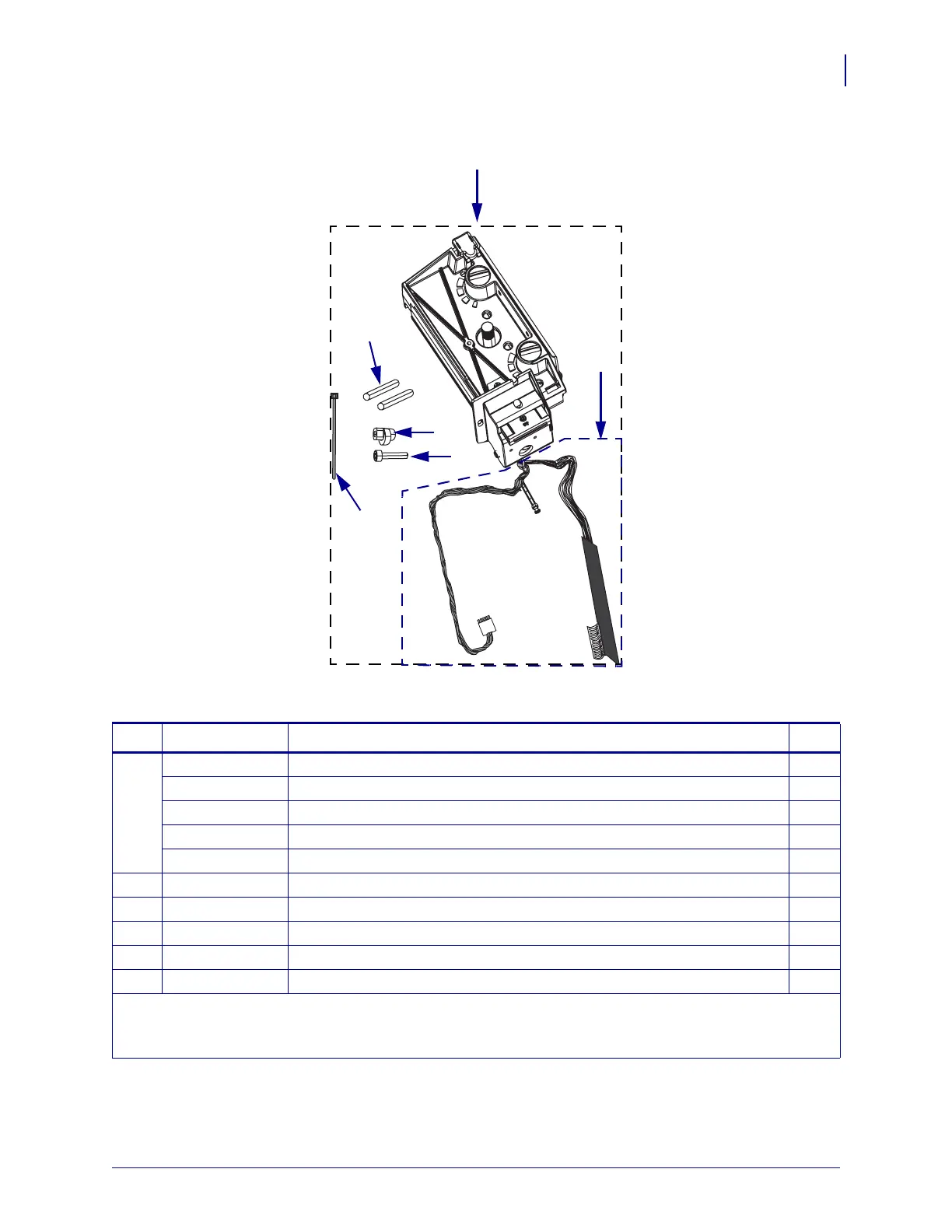

Figure H • Print Mechanism View 1
1
5
4
3
2
6
Table H • Print Mechanism View 1
Item Part Number Description Qty
1
79810M
ZM400 203 dpi Print Mechanism Maintenance Kit 1
79811M
ZM400 300 dpi Print Mechanism Maintenance Kit 1
79812M
ZM400 600 dpi Print Mechanism Maintenance Kit 1
79813M
ZM600 200 dpi Print Mechanism Maintenance Kit 1
79814M
ZM600 300 dpi Print Mechanism Maintenance Kit 1
2
HWQ06020
Cable Tie, 0.09 × 3.62 (sold in quantities of 20) 1
3
49185
Screw 1
4
77921
Cam 1
5
77919
Gauge Pins 2
6
79822M
ZM400/ZM600 Cable Maintenance Kit 1
Bold = Part available for purchase
Light italic = Part not available for individual purchase, listed and shown for reference only
Boxes = Parts contained in kits listed above

Zebra ZM400 Series Specifications

General

Max Print Width	4.09 inches (104 mm)
Max Print Speed	10 inches per second (254 mm per second)
Print Method	Thermal Transfer/Direct Thermal
Resolution	203 dpi (8 dots/mm)
Connectivity	USB 2.0, Serial RS-232, Parallel, Internal Ethernet (10/100), optional wireless
Media Width	1"/25.4 mm to 4.5"/114 mm
Media Length	0.25 to 39 inches (6 to 991 mm)
Media Thickness	0.0023"/0.058 mm to 0.010"/0.25 mm
Ribbon Width	1"/25.4 mm to 4.33"/110 mm
Ribbon Length	1476 feet (450 m)
Supported Media Types	Continuous, die-cut, notch, black-mark
Operating Temperature	40°F to 105°F (5°C to 40°C)
Storage Temperature	-40°F to 140°F (-40°C to 60°C)
