Zebra ZM400 Series User Manual

Drawings and Parts
Print Mechanism
450
14207L-001 A ZM400/ZM600 Maintenance Manual 8/9/07

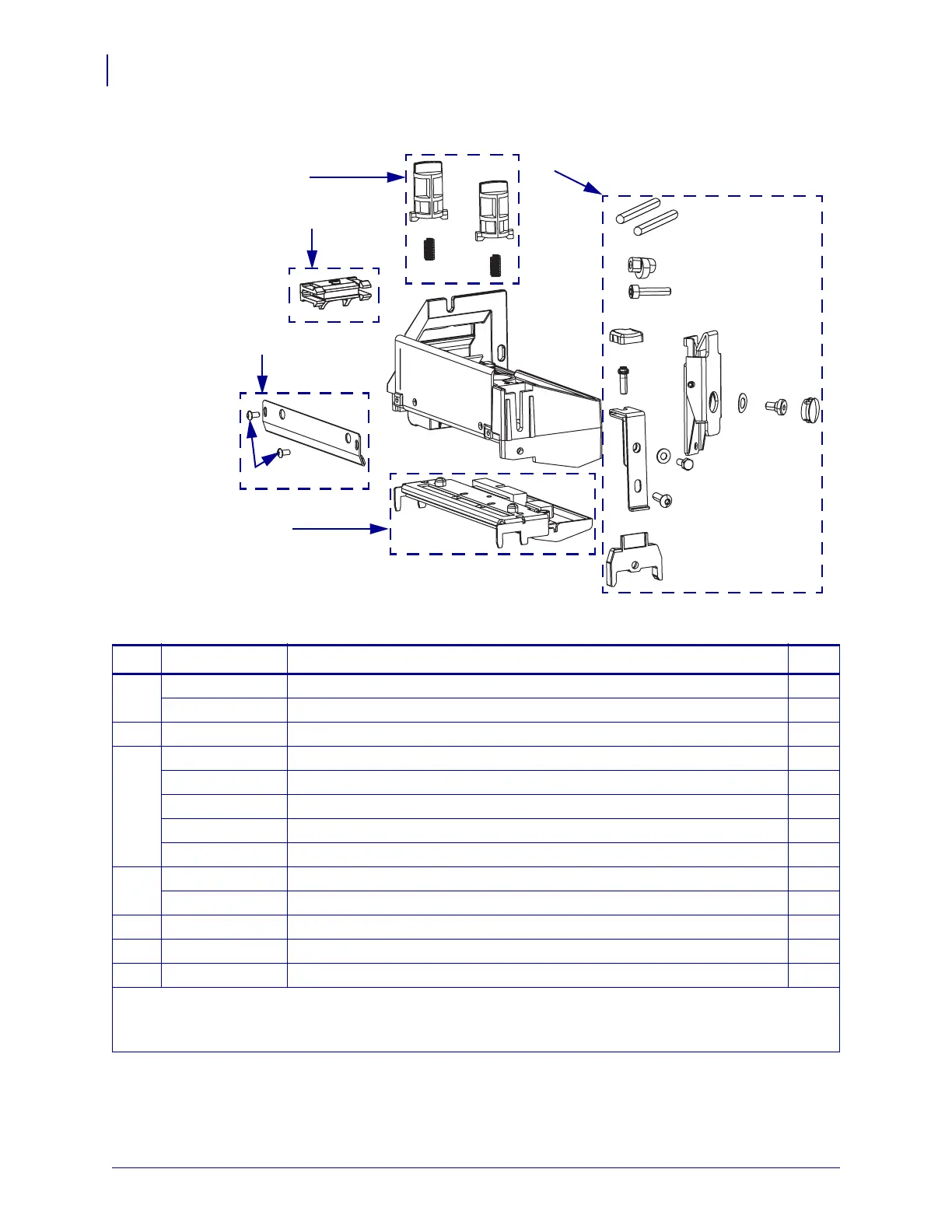

Figure I • Print Mechanism View 2
1
2
3
4
5
6
Table I • Print Mechanism View 2
Item Part Number Description Qty
1
G77172M
ZM400 Pressure Dial Maintenance Kit 1
77172-6M
ZM600 Pressure Dial Maintenance Kit 1
2
79819M
ZM400/ZM600 Latch Maintenance Kit, for further detail see page 453 1
3
79800M
ZM400 203 dpi Printhead Maintenance Kit 1
79801M
ZM400 300 dpi Printhead Maintenance Kit 1
79802M
ZM400 600dpi Printhead Maintenance Kit 1
79803M
ZM600 203 dpi Printhead Maintenance Kit 1
79804M
ZM600 300 dpi Printhead Maintenance Kit 1
4
79860M
ZM400 Ribbon Strip Plate Maintenance Kit 1
79861M
ZM600 Ribbon Strip Plate Maintenance Kit 1
5
HW78809
Screw, M3 (sold in quantities of 25) 2
7
HW79041
Flat Washer, 0.250 × 0.125 × 0,023 (sold in quantities of 25) 2
6
79845M
ZM400/ZM600 Magnetic Latch Maintenance Kit 1
Bold = Part available for purchase
Light italic = Part not available for individual purchase, listed and shown for reference only
Boxes = Parts contained in kits listed above

Zebra ZM400 Series Specifications

General

Max Print Width	4.09 inches (104 mm)
Max Print Speed	10 inches per second (254 mm per second)
Print Method	Thermal Transfer/Direct Thermal
Resolution	203 dpi (8 dots/mm)
Connectivity	USB 2.0, Serial RS-232, Parallel, Internal Ethernet (10/100), optional wireless
Media Width	1"/25.4 mm to 4.5"/114 mm
Media Length	0.25 to 39 inches (6 to 991 mm)
Media Thickness	0.0023"/0.058 mm to 0.010"/0.25 mm
Ribbon Width	1"/25.4 mm to 4.33"/110 mm
Ribbon Length	1476 feet (450 m)
Supported Media Types	Continuous, die-cut, notch, black-mark
Operating Temperature	40°F to 105°F (5°C to 40°C)
Storage Temperature	-40°F to 140°F (-40°C to 60°C)
