451
Drawings and Parts
Printhead Conversion
8/9/07 ZM400/ZM600 Maintenance Manual 14207L-001 A

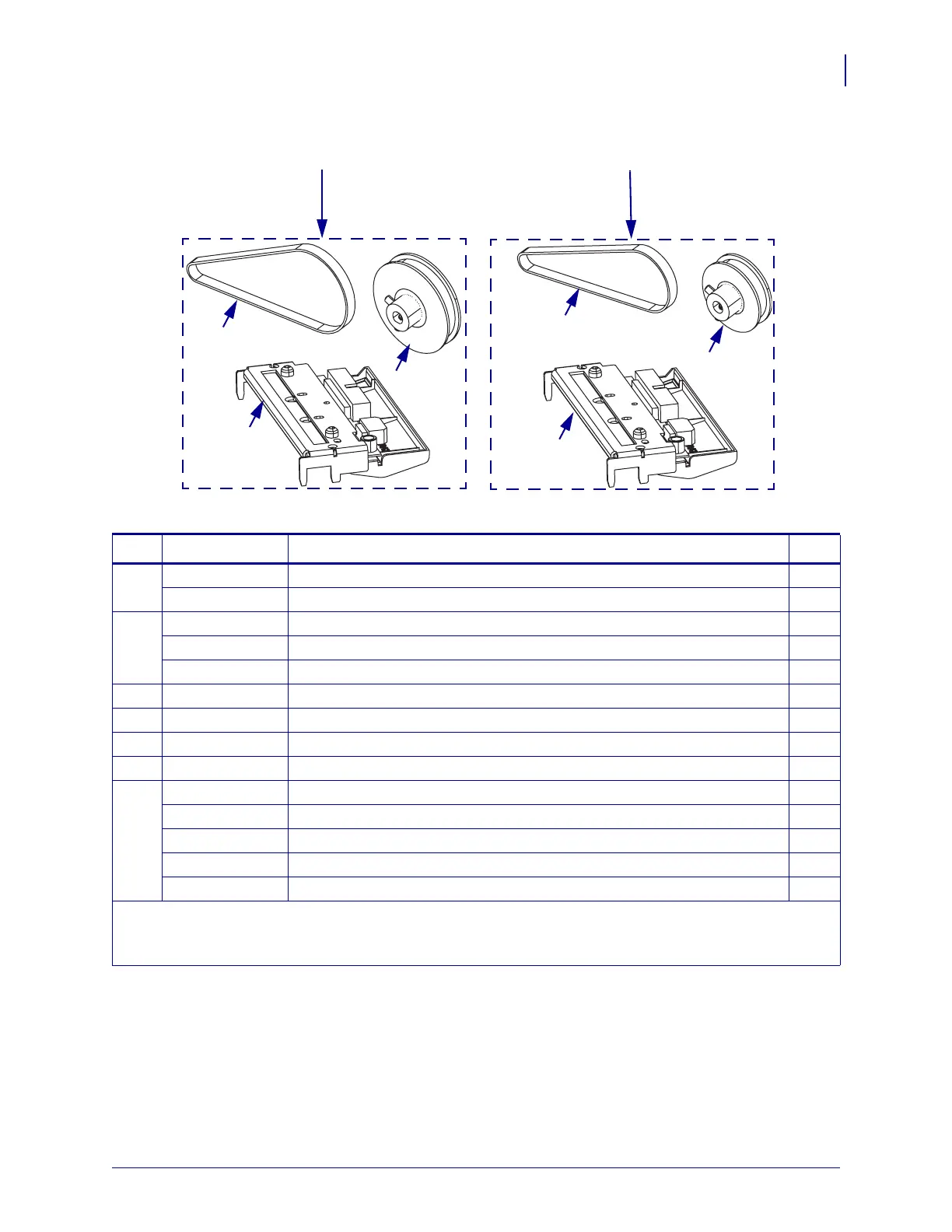

Figure J • Printhead Conversion
1
2
3
5
4
6
7
7
Table J • Printhead Conversion Kits
Item Part Number Description Qty
1
79805
ZM400 600 or 300 dpi to 203dpi 1
79809
ZM600 600 or 300 dpi to 203dpi 1
2
79806
ZM400 203 or 600 dpi to300 dpi 1
79807
ZM400 300 or 203 dpi to 600dpi 1
79808
ZM600 203 dpi to 300 dpi 1
3
79866M
Drive Belt 203 dpi 1
4
79524
Pulley 203 dpi 1
5
79867M
Drive Belt 300/600 dpi 1
6
79525
Pulley 300/600 dpi 1
7
79800M
ZM400 Printhead Assembly 203 dpi 1
79803M
ZM600 Printhead Assembly 203dpi 1
79801M
ZM400 Printhead Assembly 300 dpi 1
79802M
ZM400 Printhead Assembly 600 dpi 1
79804M
ZM600 Printhead Assembly 300 dpi 1
Bold = Part available for purchase
Light italic = Part not available for individual purchase, listed and shown for reference only
Boxes = Parts contained in kits listed above
