Zebra ZM400 Series

Drawings and Parts
Main Logic Board
458
14207L-001 A ZM400/ZM600 Maintenance Manual 8/9/07

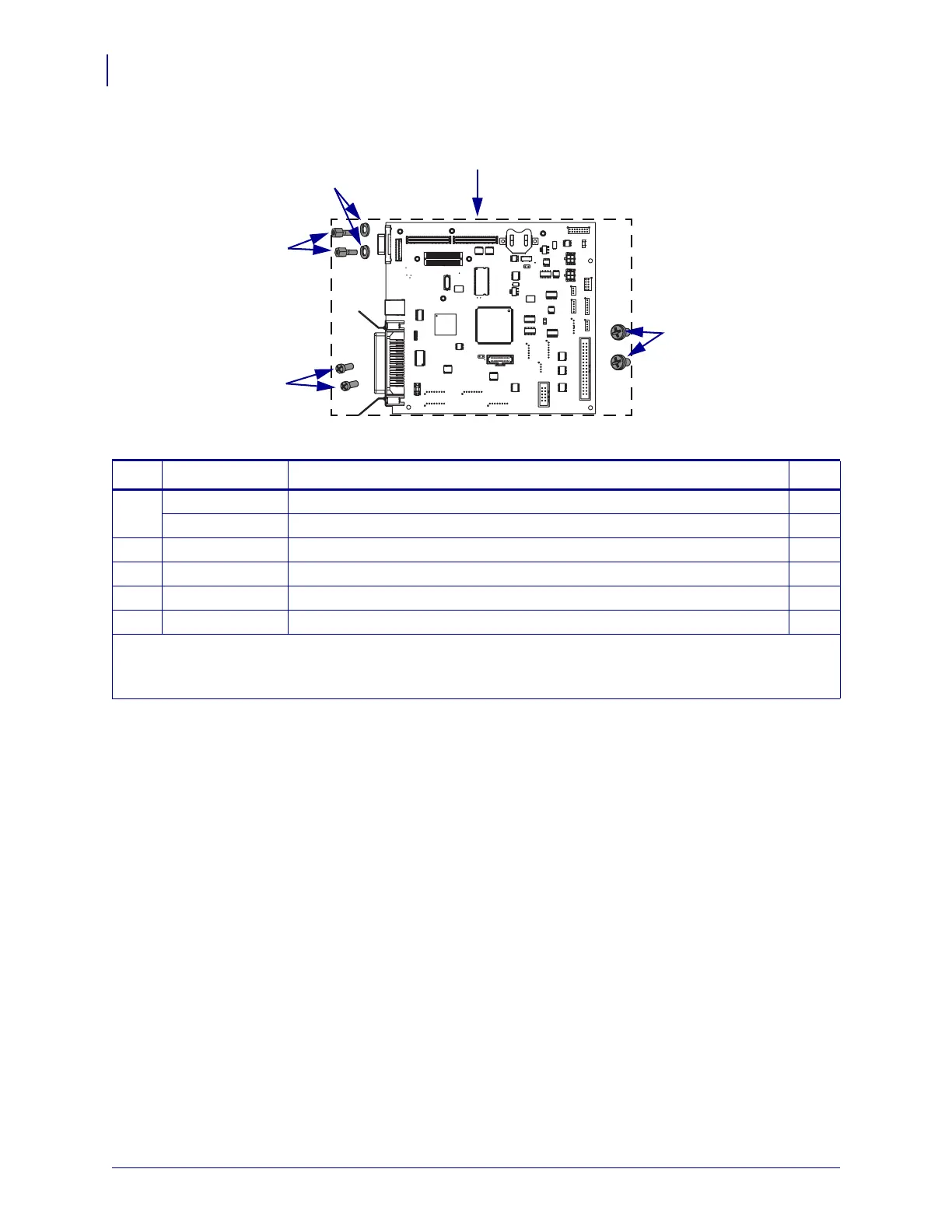

Figure P • Main Logic Board
J4
1
2
3
4
5
Table P • Main Logic Board
Item Part Number Description Qty
1
79400-001M
ZM400/ZM600 8MB Main Logic Board Maintenance Kit 1
79400-002M
ZM400/ZM600 64MB Main Logic Board Maintenance Kit 1
2
HW78804
Screw, M3 × 0.5 × 6 (sold in quantities of 50) 2
3
HW78802
Screw, 4-4- × 0.31 (sold in quantities of 25) 2
4
HW32406
Standoff, 4-40 (sold in quantities of 25) 2
5
HW45945
Lock Washer #4 (sold in quantities of 100) 2
Bold = Part available for purchase
Light italic = Part not available for individual purchase, listed and shown for reference only
Boxes = Parts contained in kits listed above
