Drawings and Parts
Electronics
8/9/07 ZM400/ZM600 Maintenance Manual 14207L-001 A

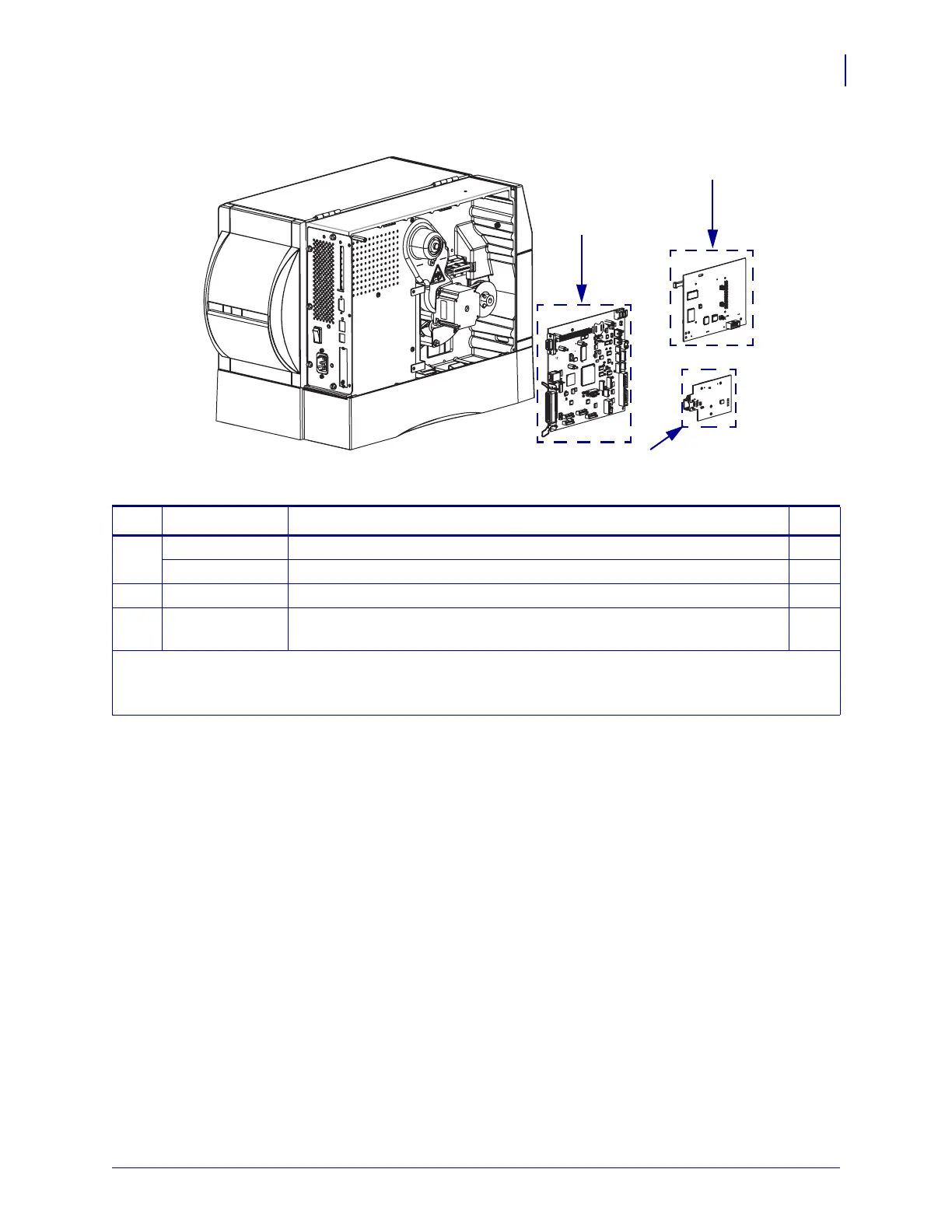

Figure O • Electronic Components
1
2
3
Table O • Electronics
Item Part Number Description Qty
1
79400-001M
ZM400/ZM600 8MB Main Logic Board Maintenance Kit, see page 458 1
79400-002M
ZM400/ZM600 64MB Main Logic Board Maintenance Kit, see page 458 1
2
29651-006M
ZM400/ZM600 Standard Wireless Board Maintenance Kit, see page 459 1
3
79823
ZM400/ZM600 Maintenance Kit Internal Wired Ethernet Board, see
page 460
1
Bold = Part available for purchase
Light italic = Part not available for individual purchase, listed and shown for reference only
Boxes = Parts contained in kits listed above

Zebra ZM400 Series Specifications

General

Max Print Width	4.09 inches (104 mm)
Max Print Speed	10 inches per second (254 mm per second)
Print Method	Thermal Transfer/Direct Thermal
Resolution	203 dpi (8 dots/mm)
Connectivity	USB 2.0, Serial RS-232, Parallel, Internal Ethernet (10/100), optional wireless
Media Width	1"/25.4 mm to 4.5"/114 mm
Media Length	0.25 to 39 inches (6 to 991 mm)
Media Thickness	0.0023"/0.058 mm to 0.010"/0.25 mm
Ribbon Width	1"/25.4 mm to 4.33"/110 mm
Ribbon Length	1476 feet (450 m)
Supported Media Types	Continuous, die-cut, notch, black-mark
Operating Temperature	40°F to 105°F (5°C to 40°C)
Storage Temperature	-40°F to 140°F (-40°C to 60°C)
