Zebra ZM400 Series User Manual

Drawings and Parts
Cutter Option
464
14207L-001 A ZM400/ZM600 Maintenance Manual 8/9/07

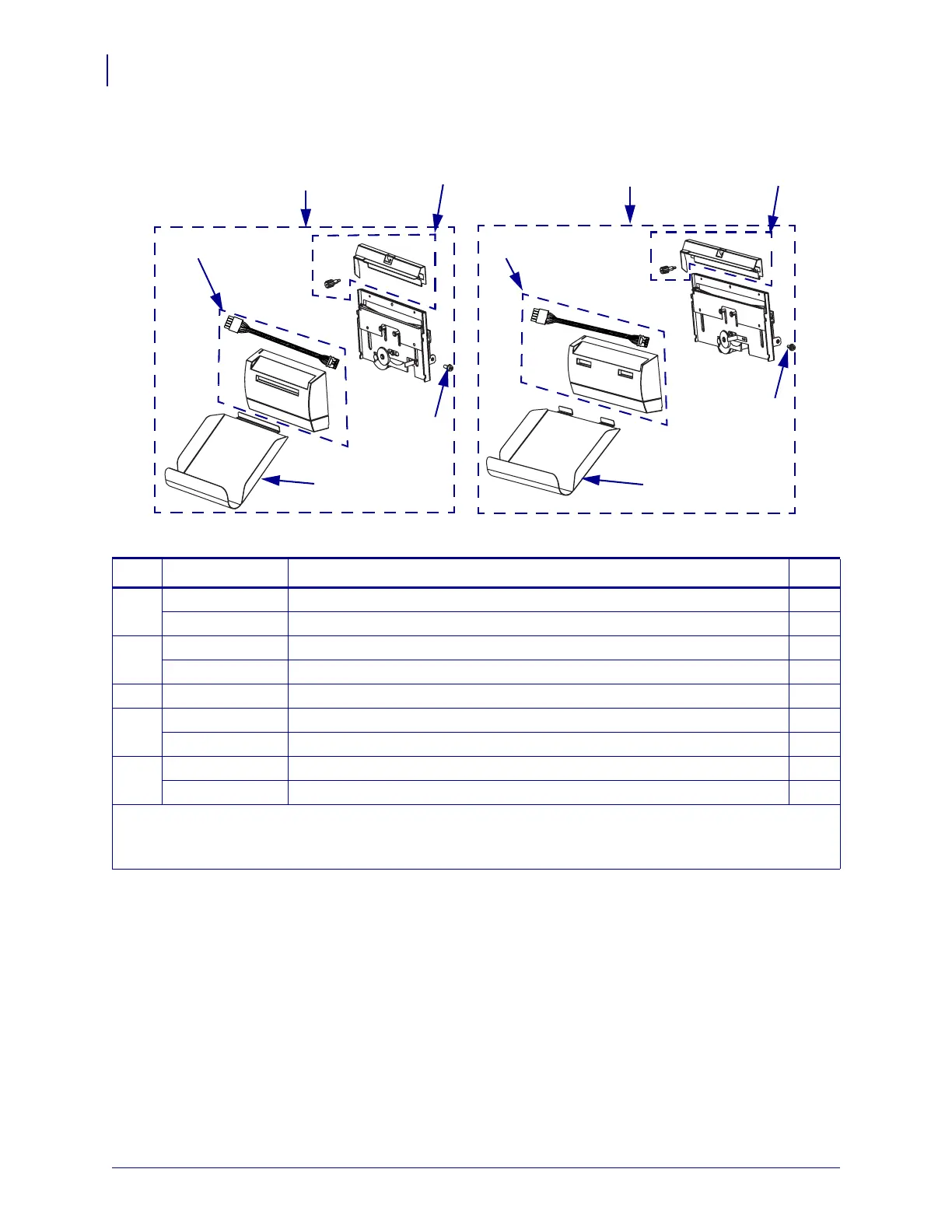

Figure T • Cutter Option
1
1
2
3
4
5
2
3
4
5
Table T • Cutter Option
Item Part Number Description Qty
1
79841
ZM400 Cutter Option Kit 1
79842
ZM600 Cutter Option Kit 1
2
79864M
ZM400 Cutter Static Brush and Thumbscrew Maintenance Kit 1
79865M
ZM600 Cutter Static Brush and Thumbscrew Maintenance Kit 1
3
HW43894
Screw, M4 × 0.5 × 10 1
4
77041
ZM400 Cutter Catch Tray 1
77997
ZM600 Cutter Catch Tray 1
5
79843M
ZM400 Cutter Cover w/PCB and Cutter Cable Maintenance Kit 1
79844M
ZM600 Cutter Cover w/PCB and Cutter Cable Maintenance Kit 1
Bold = Part available for purchase
Light italic = Part not available for individual purchase, listed and shown for reference only
Boxes = Parts contained in kits listed above

Zebra ZM400 Series Specifications

General

Max Print Width	4.09 inches (104 mm)
Max Print Speed	10 inches per second (254 mm per second)
Print Method	Thermal Transfer/Direct Thermal
Resolution	203 dpi (8 dots/mm)
Connectivity	USB 2.0, Serial RS-232, Parallel, Internal Ethernet (10/100), optional wireless
Media Width	1"/25.4 mm to 4.5"/114 mm
Media Length	0.25 to 39 inches (6 to 991 mm)
Media Thickness	0.0023"/0.058 mm to 0.010"/0.25 mm
Ribbon Width	1"/25.4 mm to 4.33"/110 mm
Ribbon Length	1476 feet (450 m)
Supported Media Types	Continuous, die-cut, notch, black-mark
Operating Temperature	40°F to 105°F (5°C to 40°C)
Storage Temperature	-40°F to 140°F (-40°C to 60°C)
