Zebra ZM400 Series

465
Drawings and Parts
Peel and Rewind Option
8/9/07 ZM400/ZM600 Maintenance Manual 14207L-001 A

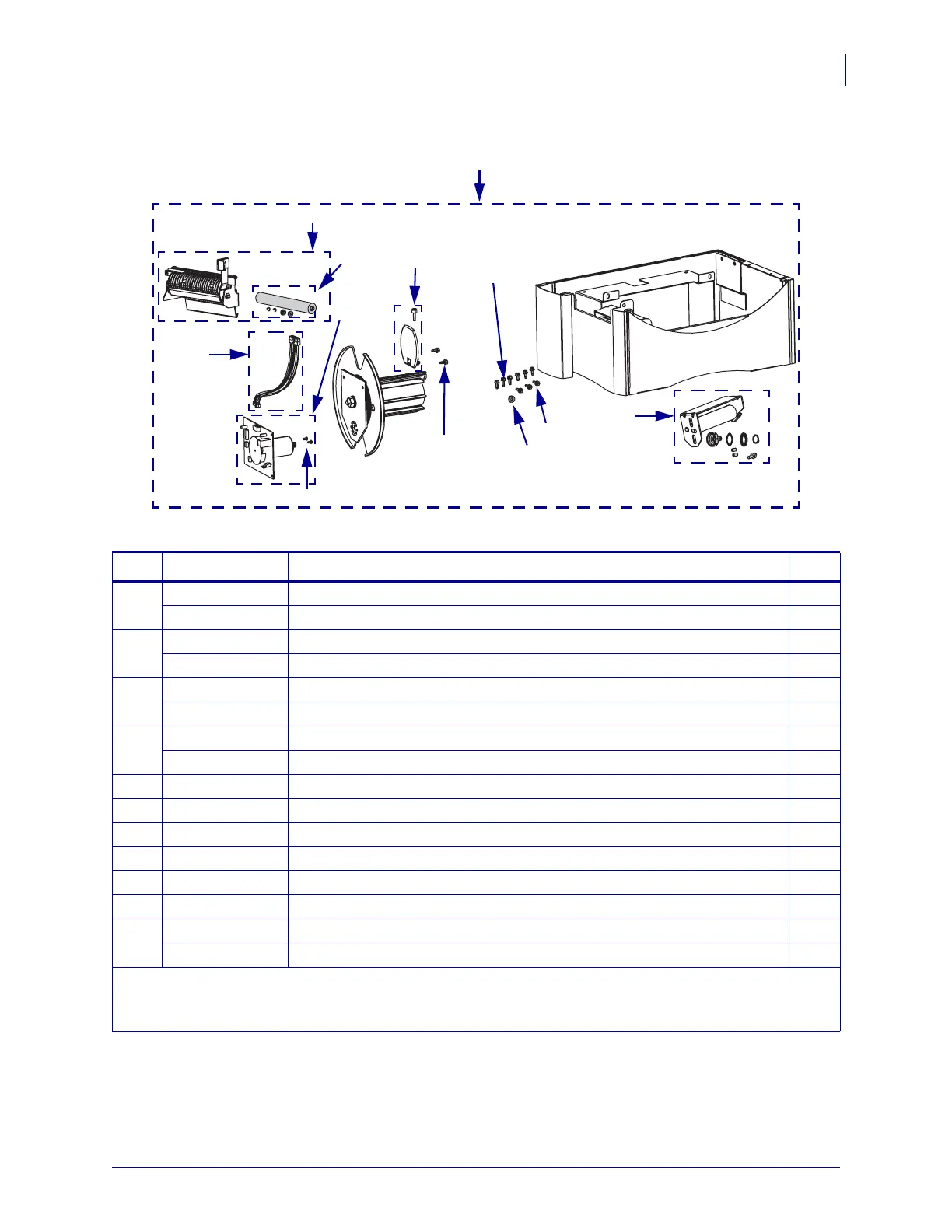

Figure U • Peel and Rewind Option
1
2
3
5
4
7
8
9
8
6
10
11
Table U • Peel and Rewind Option
Item Part Number Description Qty
1
79835
ZM400 Peel/Rewind Option Kit 1
79836
ZM600 Peel/Rewind Option Kit 1
2
79831M
ZM400 Peel Assembly Option/Maintenance Kit 1
79832M
ZM600 Peel Assembly Option/Maintenance Kit 1
3
77197M
ZM400 Pinch Roller Mainrtenance Kit 1
77727M
ZM600 Pinch Roller Mainrtenance Kit 1
4
G79026M
ZM400 Rewind Motor and PCB Maintenance Kit 1
G70926-6M
ZM600 Rewind Motor and PCB Maintenance Kit 1
5
79827M
ZM400/ZM600 Media Rewind Cable Maintenance Kit 1
6
HW78804
Screw, M3 × 0.5 × 6 (sold in quantities of 5) 2
7
77459M
ZM400/ZM600 Outside Rewind Media Guide Maintenance Kit 1
8
HW78814
Screw, M4 × 0.7 × 10 (sold in quantities of 5) 6
8
78817
Screw, M4 × 0.7 × 12 5
10
78811
Flat Washer, 0.500 × 0.195 × 0.090) 1
11
G77167M
ZM400 Steering Roller Maintenance Kit 1
G77168M
ZM600 Steering Roller Maintenance Ki 1
Bold = Part available for purchase
Light italic = Part not available for individual purchase, listed and shown for reference only
Boxes = Parts contained in kits listed above
