Zebra ZM400 Series

Drawings and Parts
Liner Take-up Option
466
14207L-001 A ZM400/ZM600 Maintenance Manual 8/9/07

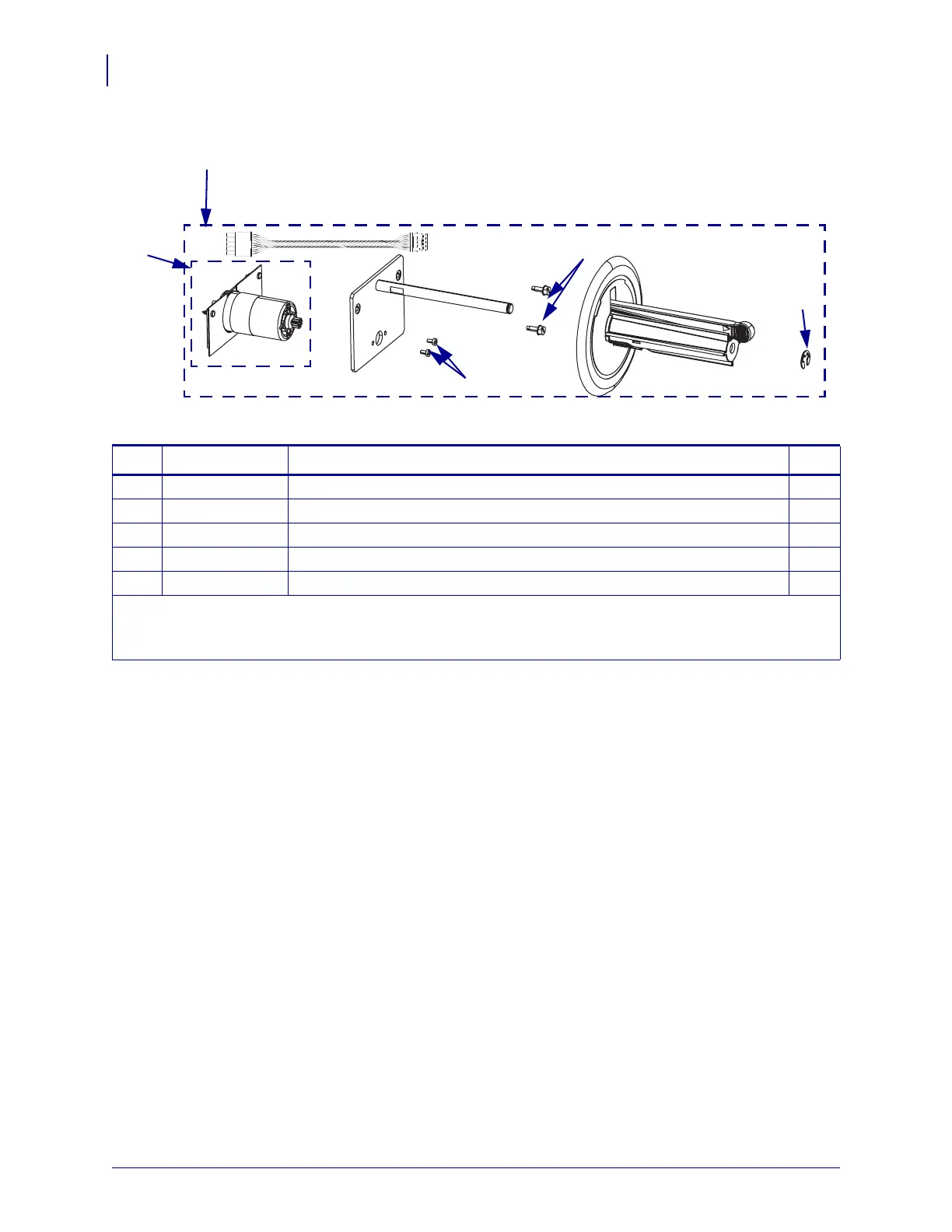

Figure V • Liner Take-up Option
1
3
2
5
4
Table V • Liner Take-up Option
Item Part Number Description Qty
1
79868M
ZM400 Liner Take-up Option/Maintenance Kit 1
2
G34112M
Liner Take-up Printed Circuit Board (PCB) and Motor 1
3
77637
Screw, M4 × 0.7 × 10 2
4
HW06313
E-ring, 0.375 (sold in quantities of 25) 1
5
HW43968
Screw, M3 × 0.5 × 6 (sold in quantities of 25) 2
Bold = Part available for purchase
Light italic = Part not available for individual purchase, listed and shown for reference only
Boxes = Parts contained in kits listed above
