Drawings and Parts
Inside Coated Ribbon Supply Spindle
8/9/07 ZM400/ZM600 Maintenance Manual 14207L-001 A

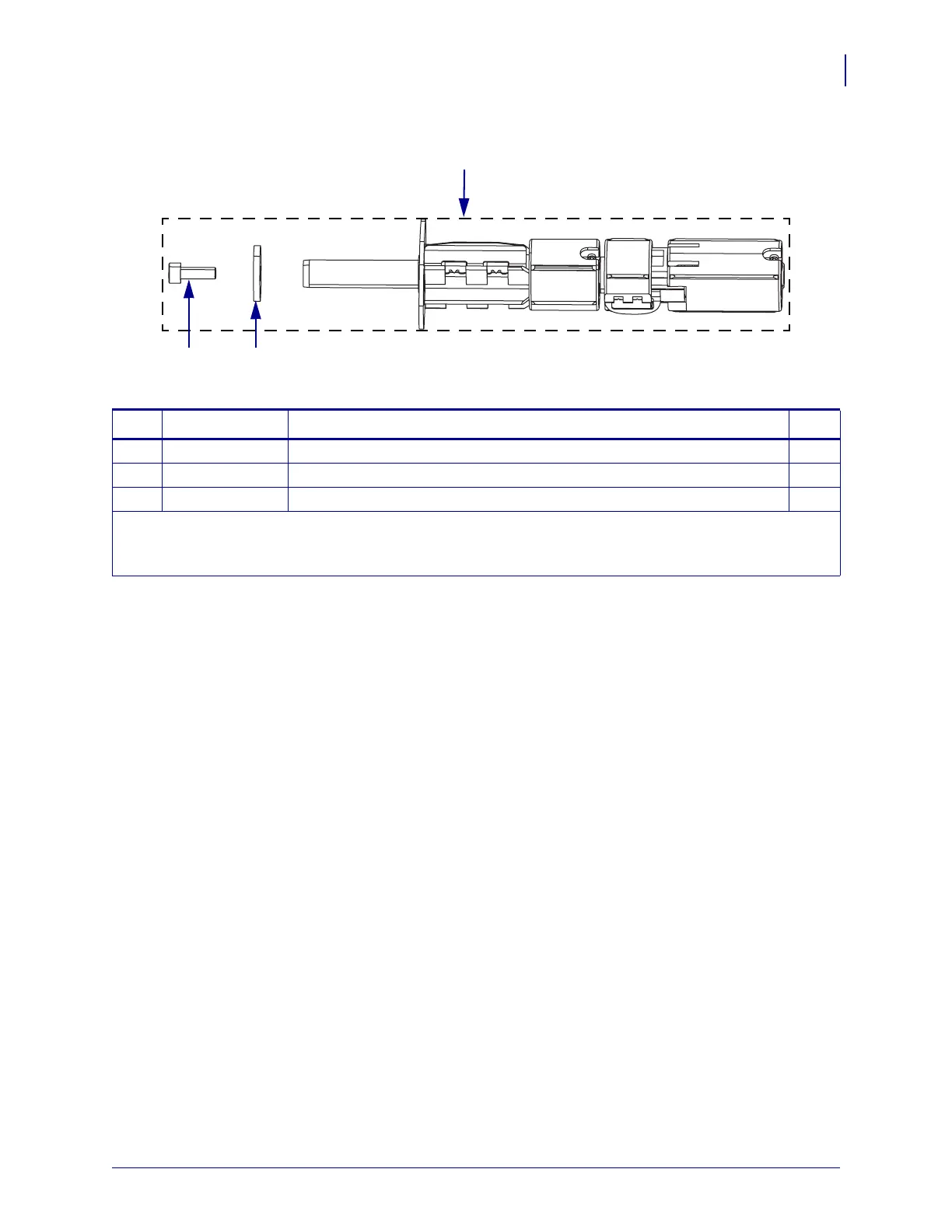

Figure W • Inside Coated Ribbon Supply Spindle
1
2
3
Table W • Inside Coated Ribbon Supply Spindle
Item Part Number Description Qty
1
79830M
ZM400 Ribbon Supply Spindle Maintenance Kit 1
2
HW10432
Screw, M4 × 0.7 × 12 (sold in quantities of 25) 1
3
HW33807
Flat Washer, 0.198 × 0.750 × 0.085 (sold in quantities of 25) 1
Bold = Part available for purchase
Light italic = Part not available for individual purchase, listed and shown for reference only
Boxes = Parts contained in kits listed above
