Load Media
60
14207L-001 A ZM400/ZM600 Maintenance Manual 8/9/07

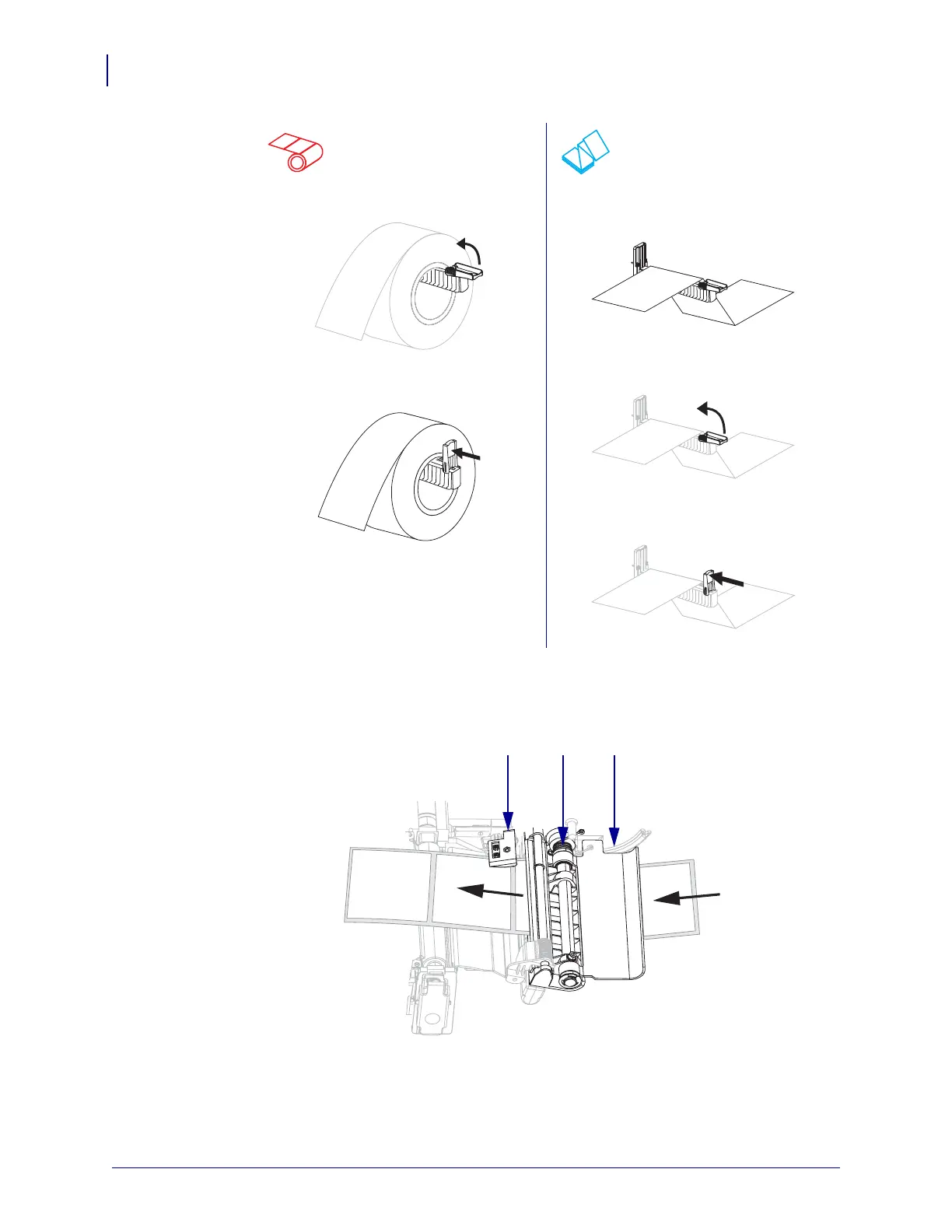

4. Feed the media under the dancer assembly (1), the upper media sensor (2), and the ribbon
sensor (
3). Slide the media back until it touches the inside back wall of the upper media
sensor.
d. Flip up the media supply guide. c. Drape the media over the media
supply hanger.
e. Slide in the media supply guide until
it touches the edge of the roll.
d. Flip up the media supply guide.
e. Slide in the media supply guide until
it touches the edge of the media.
Roll Media (Continued)
Fanfold Media (Continued)
13 2
