Operations
Load Ribbon
8/9/07 ZM400/ZM600 Maintenance Manual 14207L-001 A

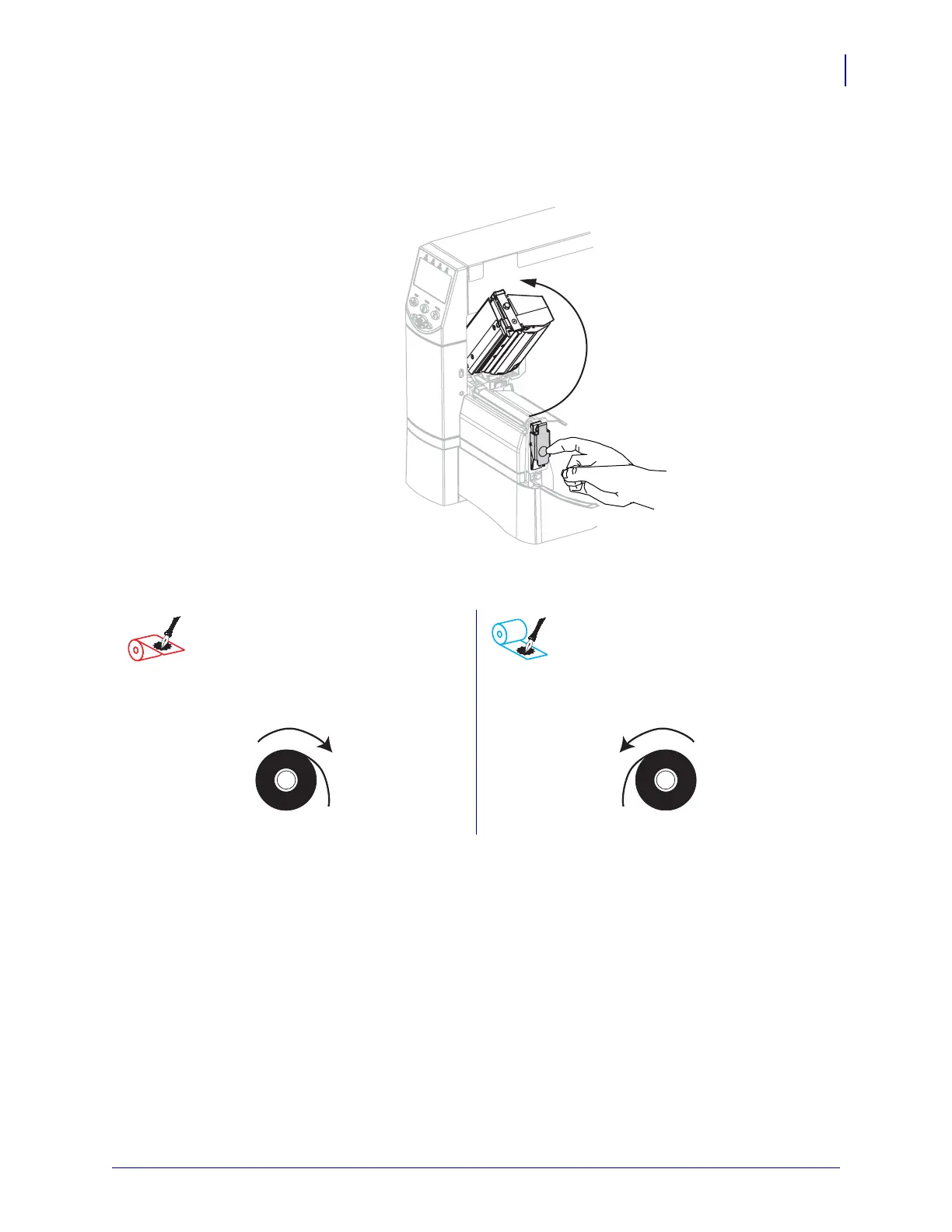

To load ribbon, complete these steps:
1. Press the printhead release latch to open the printhead assembly. Lift the printhead until it
latches open.
2. Insert the ribbon into the printer. In this step, follow the instructions for the Thermal
Transfer option installed in your printer.
Ribbon Coated Outside
(black ribbon spindle)
Ribbon Coated Inside
(gray ribbon spindle)
a. Hold the ribbon with the loose end unrolling
clockwise.
a. Hold the ribbon with the loose end unrolling
counterclockwise.
To Next Page
