Zebra ZM400 Series

Operations
Load Ribbon
66
14207L-001 A ZM400/ZM600 Maintenance Manual 8/9/07

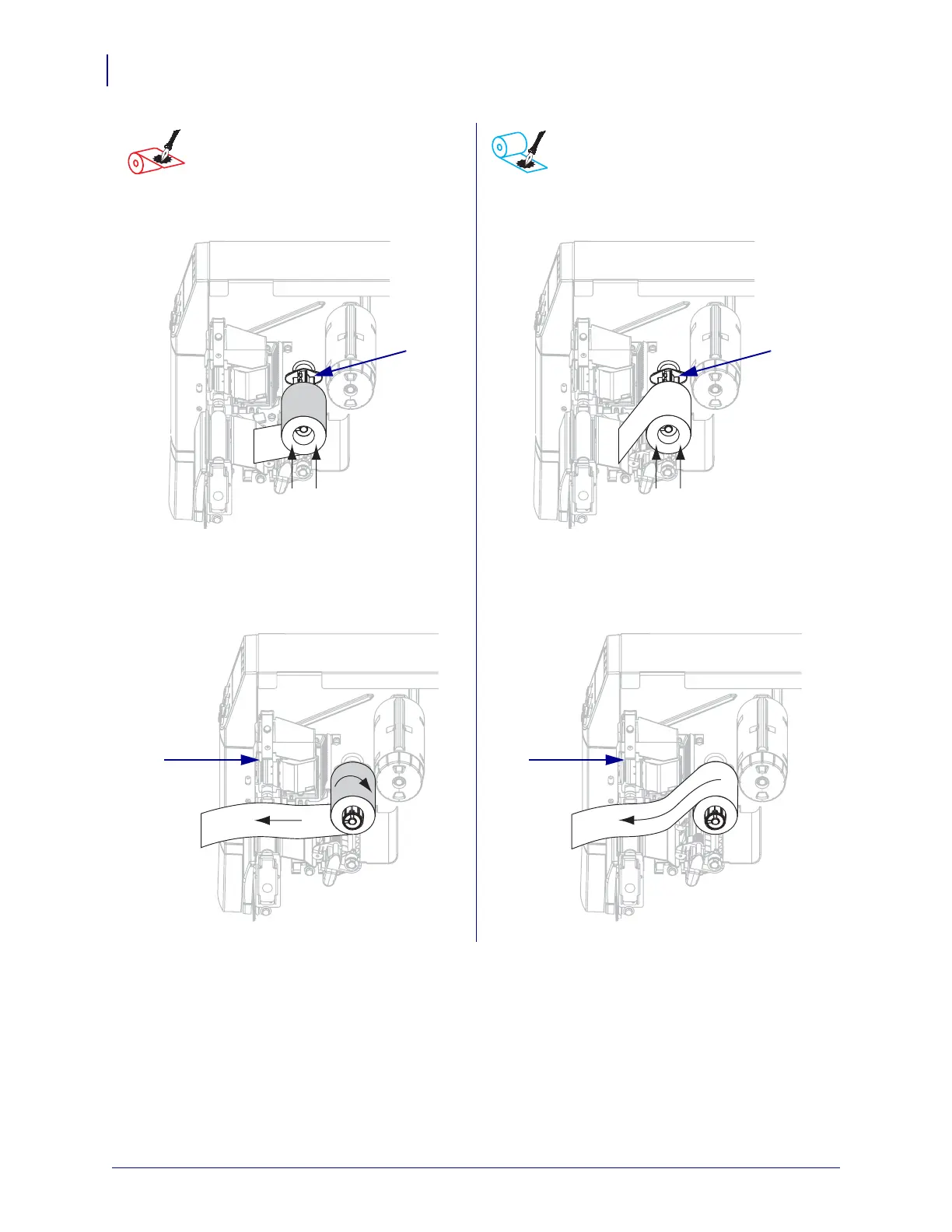

b. Place the roll of ribbon on the ribbon supply
spindle (
1) and push it all the way back.
b. Place the roll of ribbon on the ribbon supply
spindle (
1) and push it all the way back.
c. Pull the end of the ribbon under the printhead
assembly (
1) and out the front of the printer.
Extend the ribbon approximately 24 in.
(610 mm) out of the printer.
c. Pull the end of the ribbon under the printhead
assembly (
1) and out the front of the printer.
Extend the ribbon approximately 24 in.
(610 mm) out of the printer.
Ribbon Coated Outside
(black ribbon spindle) (Continued)
Ribbon Coated Inside
(gray ribbon spindle) (Continued)
1 1
1 1
