2.31 SPD4 [20H 3EH]: Program data registration
Function: This command registers all the data of the designated program number.
When the program number is 0, it writes the data into the buffer RAM. When
it is 9999, it writes the data into the command work RAM.

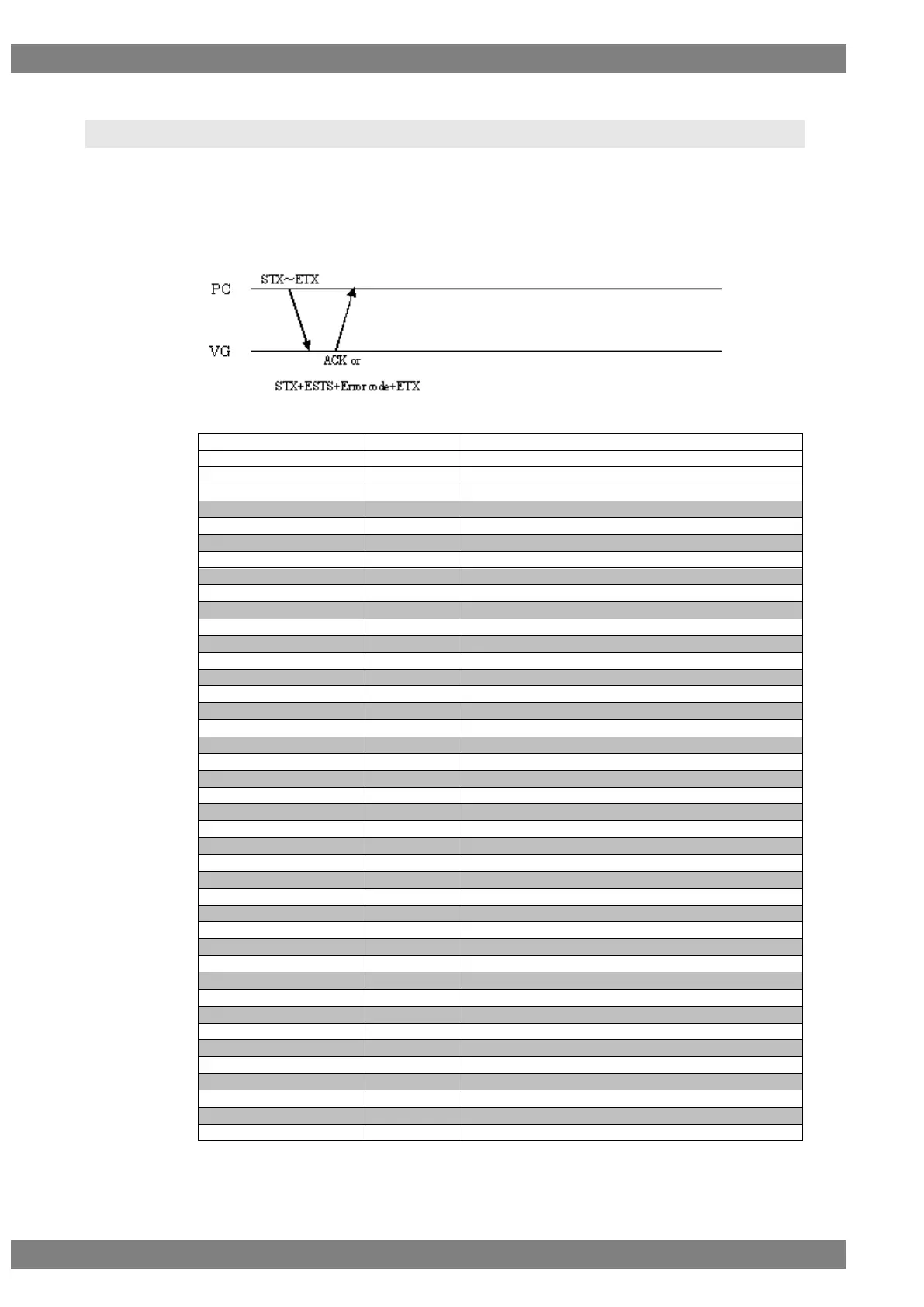

Sequence: Type 2
Command:
STX
1 byte
02H
VG4CMD
1 byte
FDH
SPD4
2 bytes
20H 3EH
Program number
1 to 4 bytes
“0” to “1000”, “9999”
;
1 byte
3BH (Delimiter 2)
H timing
? bytes
Refer to Fig. 2-1-2.
;
1 byte
3BH (Delimiter 2)
V timing
? bytes
Refer to Fig. 2-3-2.
;
1 byte
3BH (Delimiter 2)
Output condition
? bytes
Refer to Fig. 2-5-2.
;
1 byte
3BH (Delimiter 2)
Graphic color
? bytes
Refer to Fig. 2-13-2.
;
1 byte
3BH (Delimiter 2)
Character
? bytes
Refer to Fig. 2-13-3.
;
1 byte
3BH (Delimiter 2)
Crosshatch
? bytes
Refer to Fig. 2-13-4.
;
1 byte
3BH (Delimiter 2)
Dot
? bytes
Refer to Fig. 2-13-5.
;
1 byte
3BH (Delimiter 2)
Circle
? bytes
Refer to Fig. 2-13-6.
;
1 byte
3BH (Delimiter 2)
Burst
? bytes
Refer to Fig. 2-13-7.
;
1 byte
3BH (Delimiter 2)
Window
? bytes
Refer to Fig. 2-13-8.
;
1 byte
3BH (Delimiter 2)
Cursor
? bytes
Refer to Fig. 2-13-9.
;
1 byte
3BH (Delimiter 2)
Pattern name
? bytes
Refer to Fig. 2-13-10.
;
1 byte
3BH (Delimiter 2)
Color bar
? bytes
Refer to Fig. 2-13-11.
;
1 byte
3BH (Delimiter 2)
Gray scale
? bytes
Refer to Fig. 2-13-12.
;
1 byte
3BH (Delimiter 2)
Ramp
? bytes
Refer to Fig. 2-13-13.
;
1 byte
3BH (Delimiter 2)
Sweep
? bytes
Refer to Fig. 2-13-14.
;
1 byte
3BH (Delimiter 2)
Monoscope
? bytes
Refer to Fig. 2-13-15.
;
1 byte
3BH (Delimiter 2)
Raster
? bytes
Refer to Fig. 2-13-16.
;
1 byte
3BH (Delimiter 2)
Checker
? bytes
Refer to Fig. 2-13-17.
