4.71 LOPTB2 [79H]: Optional board data 2 acquisition
Function: This command gets the optional board data 2 of the designated program
number .
Sequence: Type 3
Parameters:
STX
1 byte
02H
LOPTB2
1 byte
79H
Program number
1 to 3 bytes
“0” to “849”
ETX
1 byte
03H

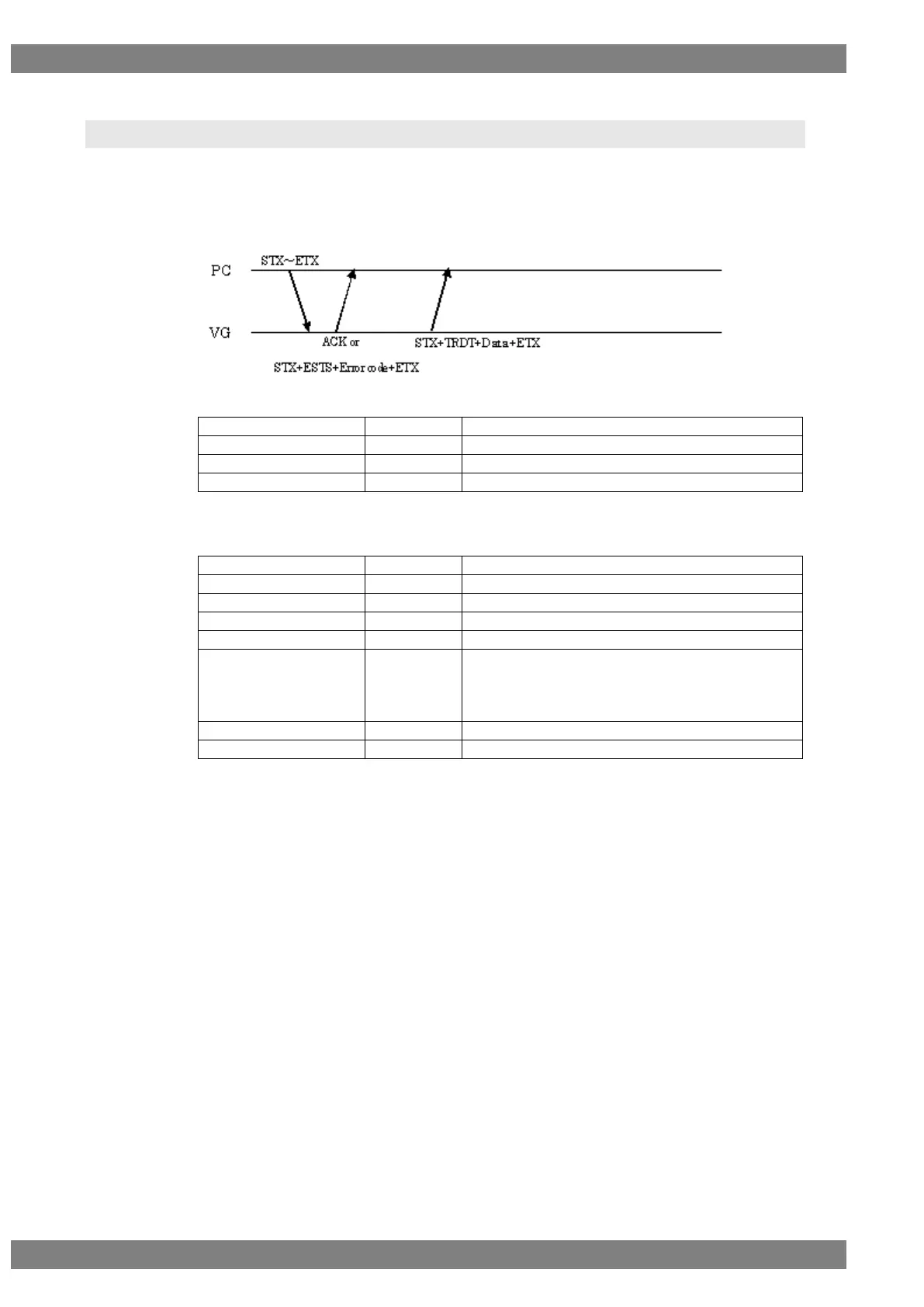

Fig. 4-71-1
Data:
STX
1 byte
02H
TRDT
1 byte
10H
LVDS 1ch
1 byte
“0” = OFF, “1” = ON
LVDS 2ch
1 byte
“0” = OFF, “1” = ON
rsv1
1 byte
“0”
Output Select
1 byte
“0” = DVI
“1” = Parallel
“2” = 4Head LVDS
“3” = 2Head LVDS
rsv2
28 bytes
All “0”
ETX
1 byte
03H
Fig. 4-71-2
