ASTRO VG-871 - LGED4 [20 H 5 CH]: Group Enable Readout

Chapter 2 INDIVIDUAL FORMATS FOR VG CONTROL COMMANDS
131
2.58 LGED4 [20H 5CH]: Group enable readout
Function: This command reads enable or disable for the designated group number.

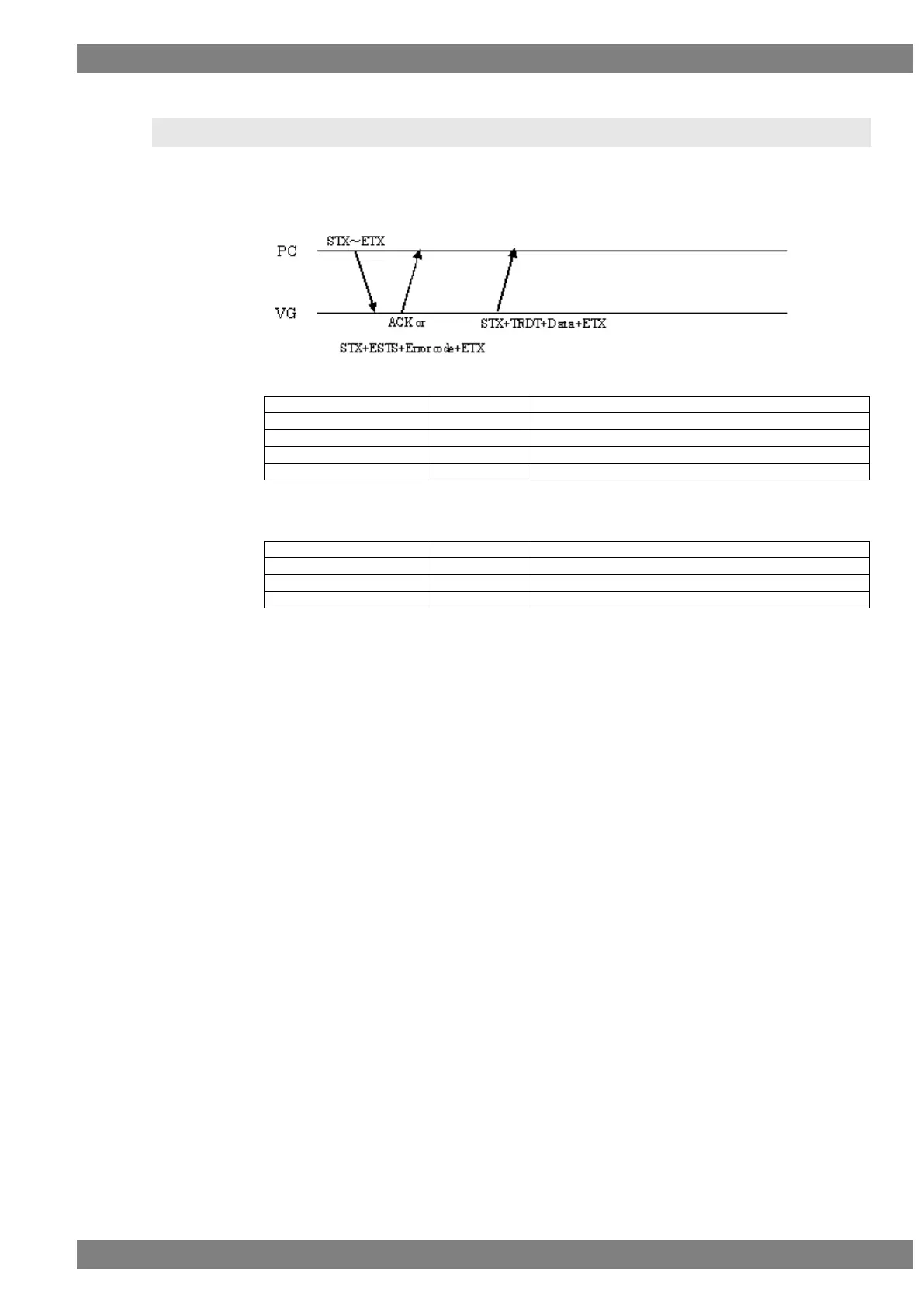

Sequence: Type 3
Command:
STX
1 byte
02H
VG4CMD
1 byte
FDH
LOED4
2 bytes
20H 5BH
Group No.
1 or 2 bytes
“1” to “99”
ETX
1 byte
03H
Fig. 2-58-1
Data:
STX
1 byte
02H
TRDT
1 byte
10H
Enable/disable
1 byte
“0” = Enable, “1” = Disable
ETX
1 byte
03H
Fig. 2-58-2
