4.28 LGROUP [53H]: Group data readout
Function: This command reads the data of the designated group number. Group
number from 1 to 9 can be set. If you designate a number of 10 and up, use
the [SGROUP3] command.
Sequence: Type 7
Command:
STX
1 byte
02H
LGROUP
1 byte
53H
GROUP NO
1 byte
“1” to “9”
ETX
1 byte
03H

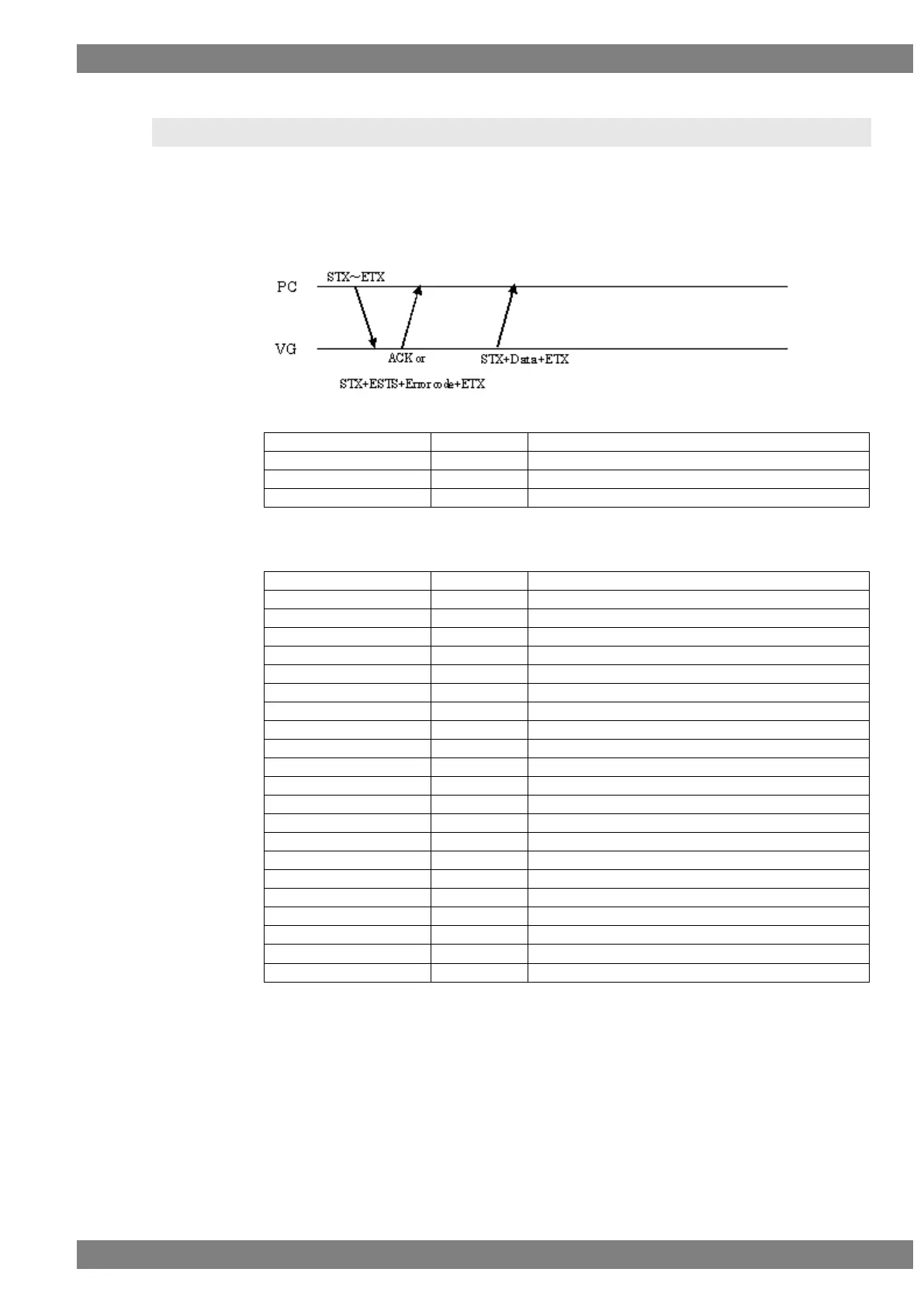

Fig. 4-28-1
Data:
STX
1 byte
02H
Program number
3 bytes
“001” to “999”
Program number
3 bytes
“000” to “999”
Program number
3 bytes
“000” to “999”
Program number
3 bytes
“000” to “999”
Program number
3 bytes
“000” to “999”
Program number
3 bytes
“000” to “999”
Program number
3 bytes
“000” to “999”
Program number
3 bytes
“000” to “999”
Program number
3 bytes
“000” to “999”
Program number
3 bytes
“000” to “999”
Program number
3 bytes
“000” to “999”
Program number
3 bytes
“000” to “999”
Program number
3 bytes
“000” to “999”
Program number
3 bytes
“000” to “999”
Program number
3 bytes
“000” to “999”
Program number
3 bytes
“000” to “999”
Program number
3 bytes
“000” to “999”
Program number
3 bytes
“000” to “999”
Program number
3 bytes
“000” to “999”
Program number
3 bytes
“000” to “999”
ETX
1 byte
03H
Fig. 4-28-2
