2.168 EXEKEY4[24H 44H] : execution of timing keys and
pattern keys
Function : this command executes the data of the designated timing keys and pattern keys.
Sequence : Type 2
Command :
STX
1 BYTE
02H
VG4CMD
1 BYTE
FDH
EXEKEY4
2 BYTE
24H 44H
Mode
1 BYTE
"0"= Timing and Pattern
"1"= Timing only
"2"= Pattern only
,
1 BYTE
2CH (Delimiter)
Timing Key No
1-2 BYTE
"1"-"12"
,
1 BYTE
2CH (Delimiter)
Timing FREQ No
1-2 BYTE
"1"-"10"
,
1 BYTE
2CH (Delimiter)
Pattern Key No
1-2 BYTE
"1"-"10"
ETX
1 BYTE
03H

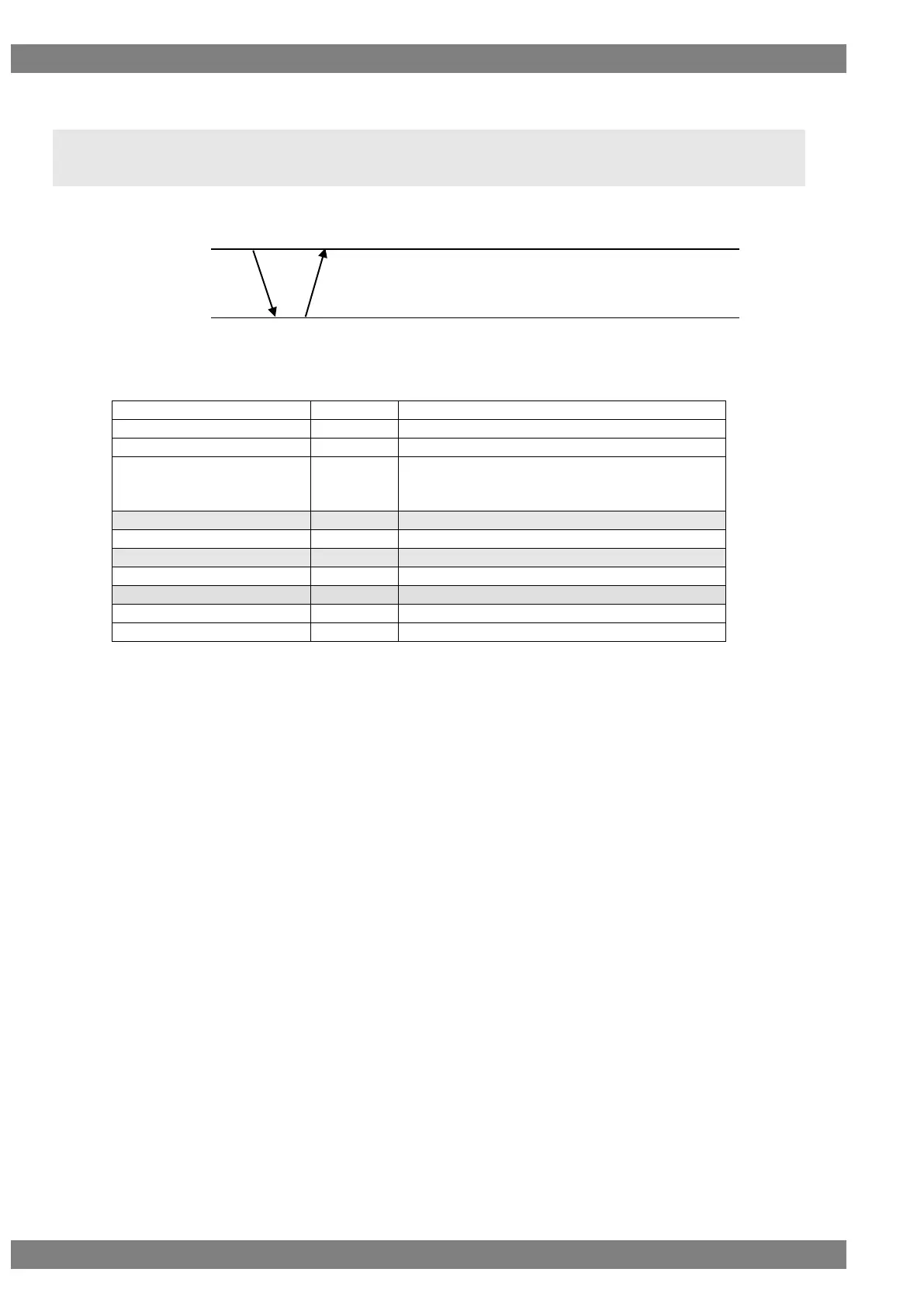

Fig 2.168-1
Note : this command is only for VG-881.
PC
VG
STX～ETX
ACK or
STX+ESTS+Error Code+ETX
