ASTRO VG-871 - SCFG4 [20 H 54 H]: Config Data Registration

Chapter 2 INDIVIDUAL FORMATS FOR VG CONTROL COMMANDS
113

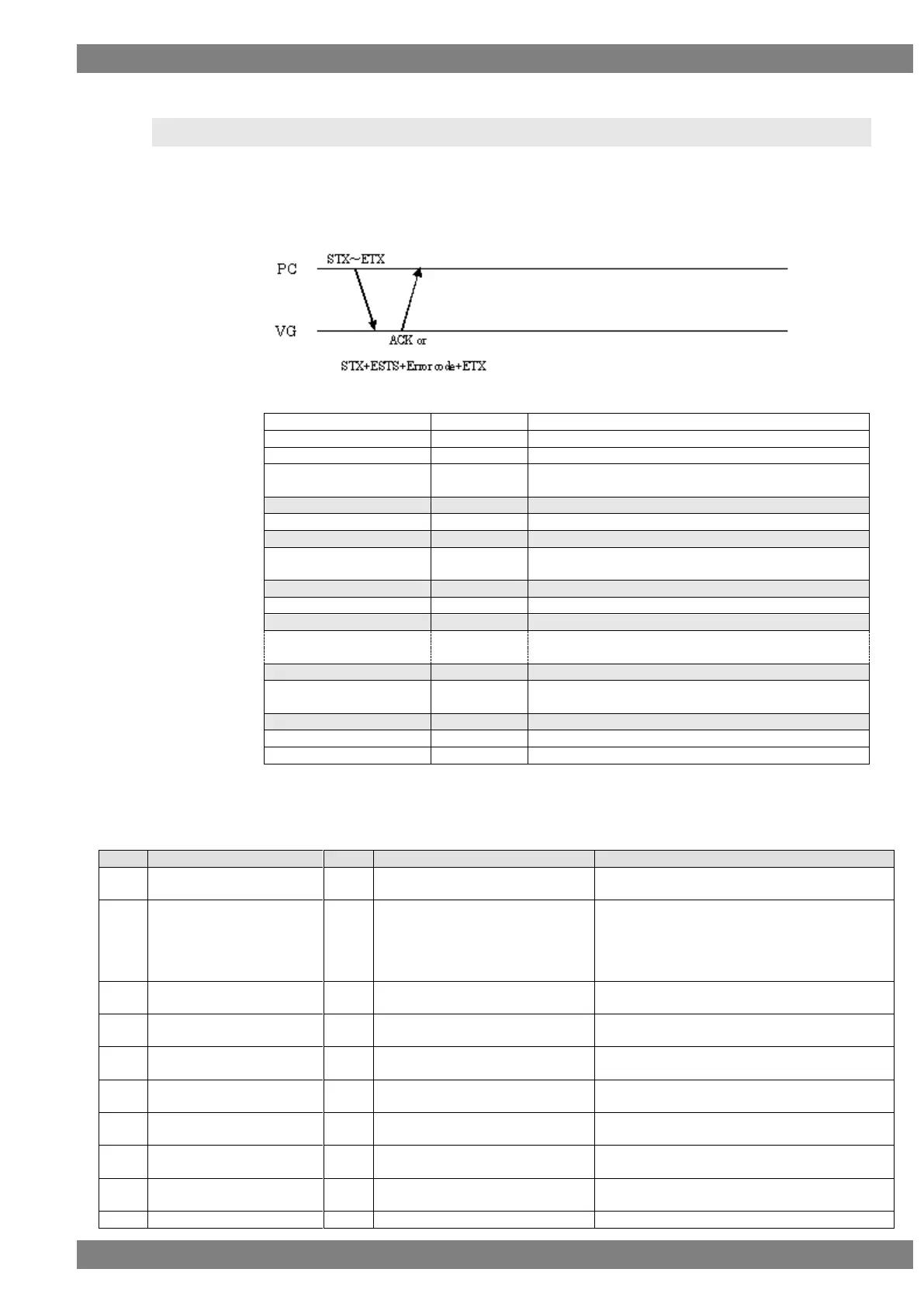

2.50 SCFG4 [20H 54H]: Config data registration
Function: This command registers the system settings (configuration) data into the
VG generator.
Sequence: Type 2
Command:
STX
1 byte
02H
VG4CMD
1 byte
FDH
SCFG4
2 bytes
20H 54H
Parameter 1 identification
code
1 to 3 bytes
“0” to “999”
,
1 byte
2CH (Delimiter)
Parameter 1 setting
? bytes
?
,
1 byte
2CH (Delimiter)
Parameter 2 identification
code
1 to 3 bytes
“0” to “999”
,
1 byte
2CH (Delimiter)
Parameter 2 setting
? bytes
?
,
1 byte
2CH (Delimiter)
,
1 byte
2CH (Delimiter)
Parameter N
identification code
1 to 3 bytes
“0” to “999”
,
1 byte
2CH (Delimiter)
Parameter N setting
? bytes
?
ETX
1 byte
03H
Fig. 2-50-1
Concerning the identification codes
Code
Item
Byte
Value
Supported VG
0
Beep
1
"0"=OFF, "1"=ON
VG-870,VG-871,VG-873,VG-874, VG-876,
VG-877,VG-880,VG-881, VG-882, VG-884
2
RS Speed
1
"0"=9600,
"1"=19200,
"2"=38400,
"3"=57600,
"4"=115200
VG-870,VG-871,VG-873,VG-874, VG-876,
VG-877,VG-880,VG-881, VG-884
3
RS Data Length
1
"1"=8
VG-870,VG-871,VG-873,VG-874, VG-876,
VG-877,VG-880,VG-881, VG-884
4
RS Parity
1
"0"=None, "1"=Even, "2"=Odd
VG-870,VG-871,VG-873,VG-874, VG-876,
VG-877,VG-880,VG-881, VG-884
5
RS Stop Bit
1
"0"=1, "1"=2
VG-870,VG-871,VG-873,VG-874, VG-876,
VG-877,VG-880,VG-881, VG-884
6
IP Address 1
1-3
"0" - "255"
VG-870,VG-871,VG-873,VG-874, VG-876,
VG-877,VG-881
7
IP Address 2
1-3
"0" - "255"
VG-870,VG-871,VG-873,VG-874, VG-876,
VG-877,VG-881
8
IP Address 3
1-3
"0" - "255"
VG-870,VG-871,VG-873,VG-874, VG-876,
VG-877,VG-881
9
IP Address 4
1-3
"0" - "255"
VG-870,VG-871,VG-873,VG-874, VG-876,
VG-877,VG-881
10
Gate Way 1
1-3
"0" - "255"
VG-870,VG-871,VG-873,VG-874, VG-876,
