5.20.2 G8SQPA [E3H]: Filled-in square drawing (color designation)
Function : This command draws filled-in squares on the color bar plane (8-bit plane). The
start and end point coordinates and the color are designated as the parameters.

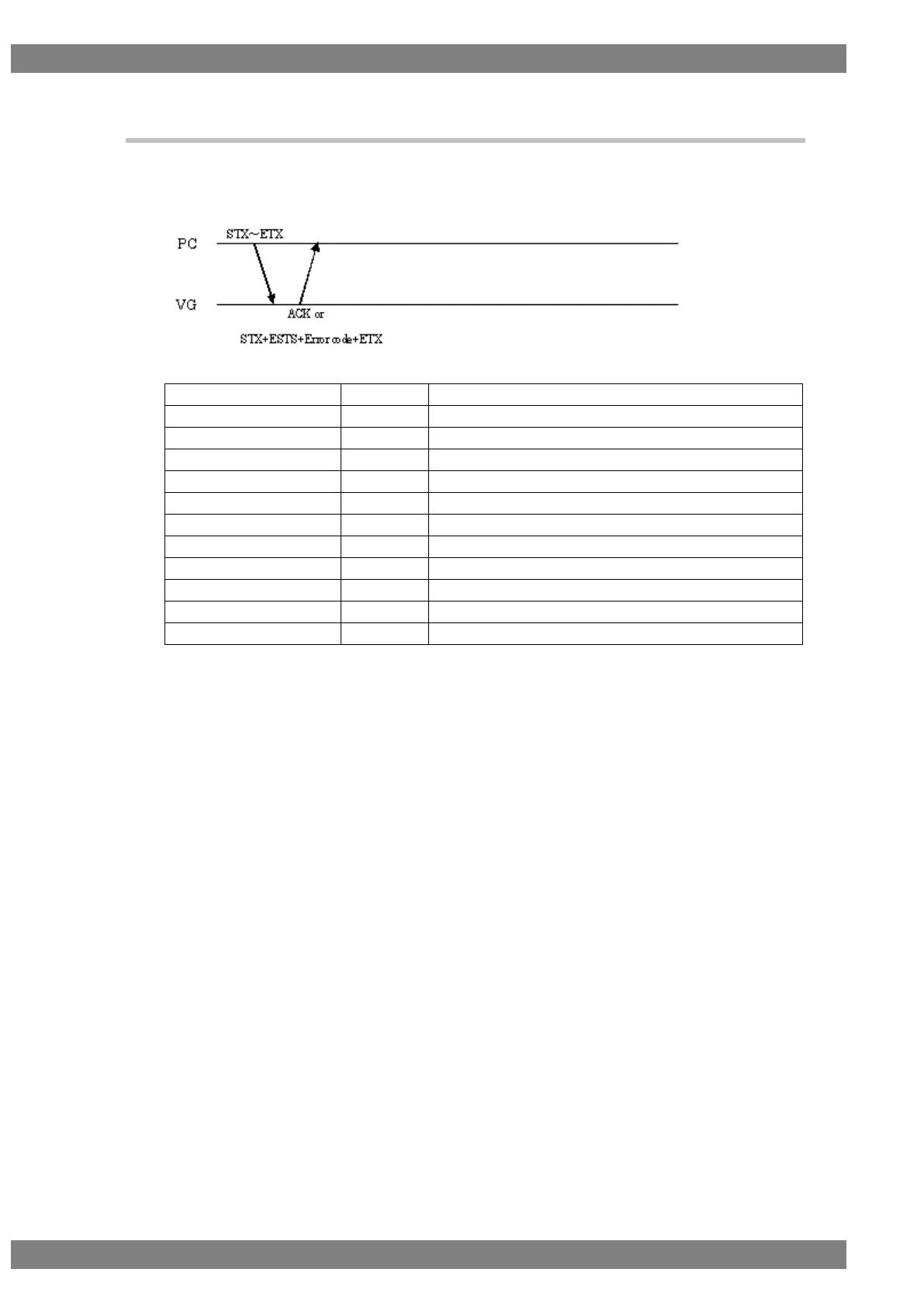

Sequence : Type 2
Parameter :
STX
1 byte
02H
G8SQPA
1 byte
E3H
Top left coordinate X
1 to 4 bytes
“0” to “4095”
Data delimiter
1 byte
“,”
Top left coordinate Y
1 to 4 bytes
“0” to “4095”
Data delimiter
1 byte
“,”
Bottom right coordinate X1
1 to 4 bytes
“0” to “4095”
Data delimiter
1 byte
“,”
Bottom right coordinate Y1
1 to 4 bytes
“0” to “4095”
Data delimiter
1 byte
“,”
Color
1 to 3 bytes
“0” to “255”
ETX
1 byte
03H
Fig. 5-20-2
