ASTRO VG-871 - LHDMISW4［20 H 9 AH］ ：HDMI SW Data Aquisition

200

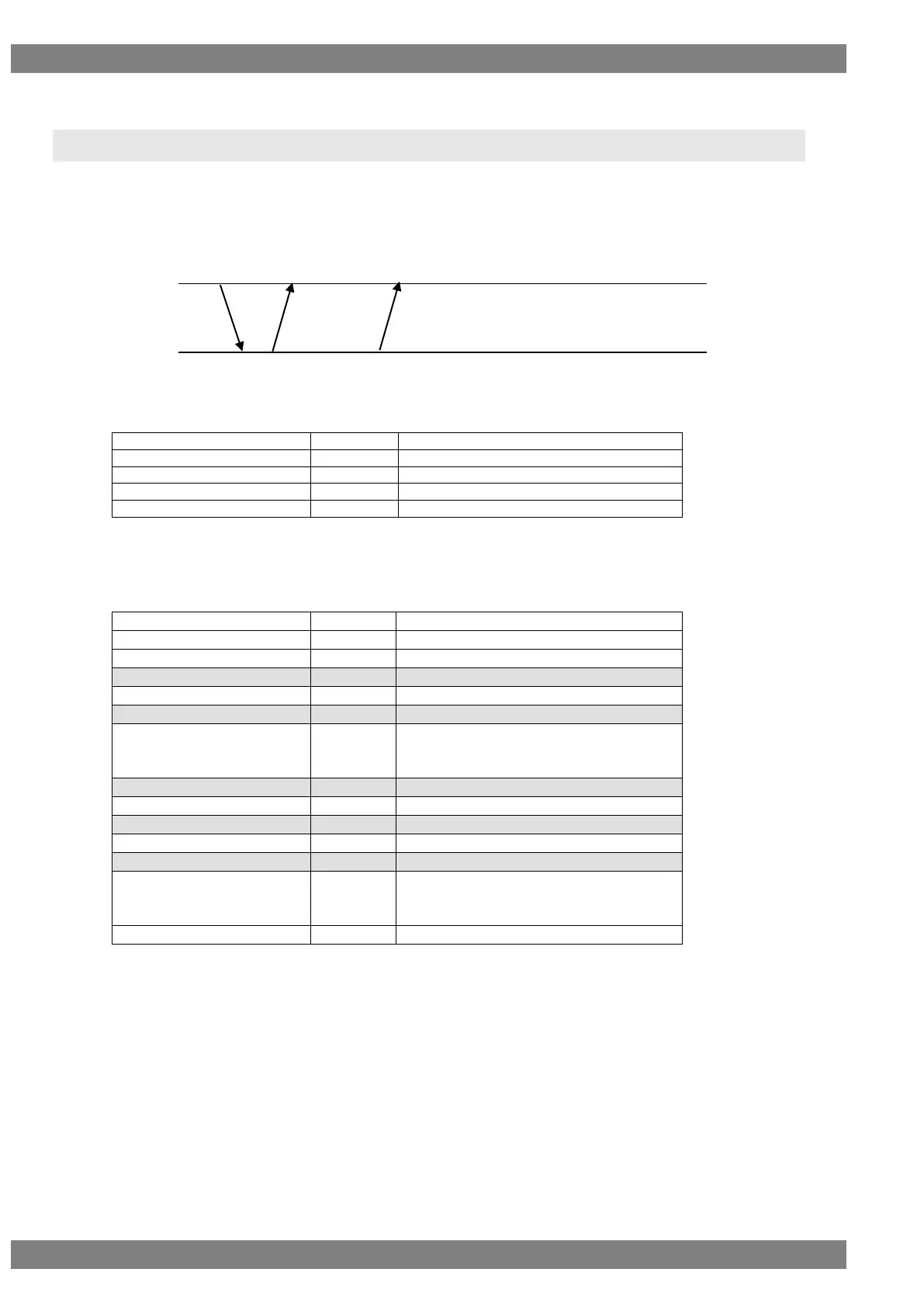

2.107 LHDMISW4［20H 9AH］：HDMI SW data aquisition
Function : This command gets VbyOne data of the indicated program No. In case program
NO.1001 to 2000, the VG original data is read out. In case ,NO.9999, the data is
read out from command work RAM.
Sequence : TYPE 3
Parameter :
STX
1 BYTE
02H
VG4CMD
1 BYTE
FDH
LHDMISW4
2 BYTE
20H 9AH
Program NO
1 - 4 BYTE
"0" - "2000","9999"
ETX
1 BYTE
03H
Fig 2-107-1
Data ：
STX
1 BYTE
02H
TRDT
1 BYTE
10H
HDMI 1 Mode
1 BYTE
"0"= selector, "1"= all outputs
,
1 BYTE
2CH (Delimiter)
HDMI 1 InSel
1 BYTE
"0"-"1"
,
1 BYTE
2CH (Delimiter)
HDMI 1 OutSel
1 BYTE
"0" - "7"
Note) This command is active when
Mode is selected as Selector.
,
1 BYTE
2CH (Delimiter)
HDMI 2 Mode
1 BYTE
"0"= selector, "1"= all outputs
,
1 BYTE
2CH (Delimiter)
HDMI 2 Input Select
1 BYTE
"0"-"1"
,
1 BYTE
2CH (Delimiter)
HDMI 2 Output Select
1 BYTE
"0" - "7"
Note) This command is active when
Mode is selected as Selector.
ETX
1 BYTE
03H
Fig 2-107-2
PC
VG
STX～ETX
STX+TRDT+DATA+ETX
ACK or
STX+ESTS+ERROR CODE+ETX
